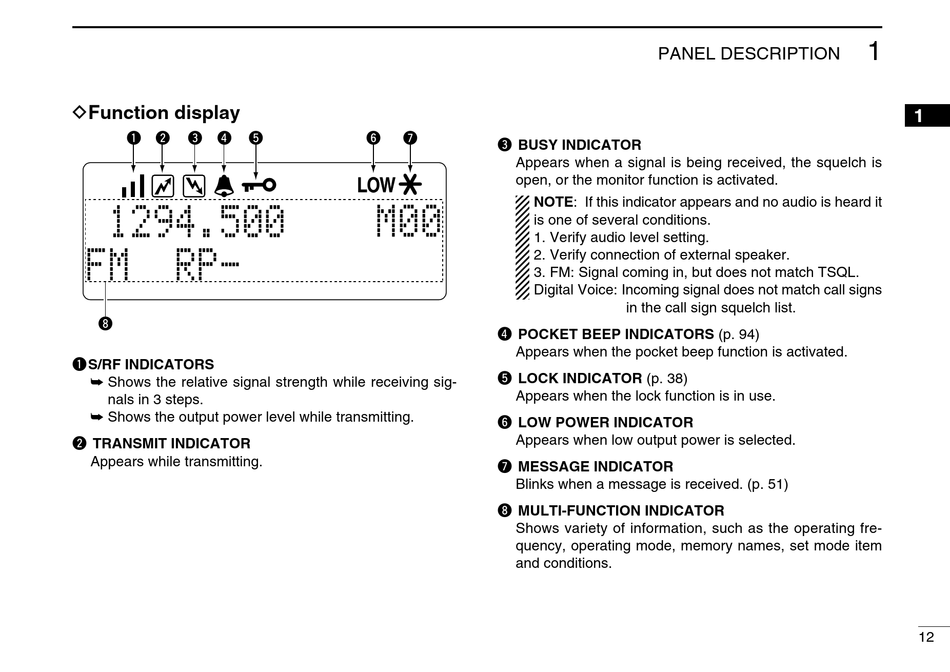

Function Display - Icom ID-1 Instruction Manual

D Function display
q w e r t
1294.500
FM RP-
i
q S/RF INDICATORS
➥ Shows the relatve sgnal strength whle recevng sg-
nals n 3 steps.
➥ Shows the output power level whle transmttng.
w TRANSMIT INDICATOR
Appears whle transmttng.
y u
e BUSY INDICATOR
Appears when a sgnal s beng receved, the squelch s
open, or the montor functon s actvated.
NOTE: If ths ndcator appears and no audo s heard t
M00
s one of several condtons.
1. Verfy audo level settng.
2. Verfy connecton of external speaker.
3. FM: Sgnal comng n, but does not match TSQL.
Dgtal Voce: Incomng sgnal does not match call sgns
r POCKET BEEP INDICATORS (p. 94)
Appears when the pocket beep functon s actvated.
t LOCK INDICATOR (p. 38)
Appears when the lock functon s n use.
y LOW POWER INDICATOR
Appears when low output power s selected.
u MESSAGE INDICATOR
Blnks when a message s receved. (p. 51)
i MULTI-FUNCTION INDICATOR
Shows varety of nformaton, such as the operatng fre-
quency, operatng mode, memory names, set mode tem
and condtons.
