PANEL DESCRIPTION

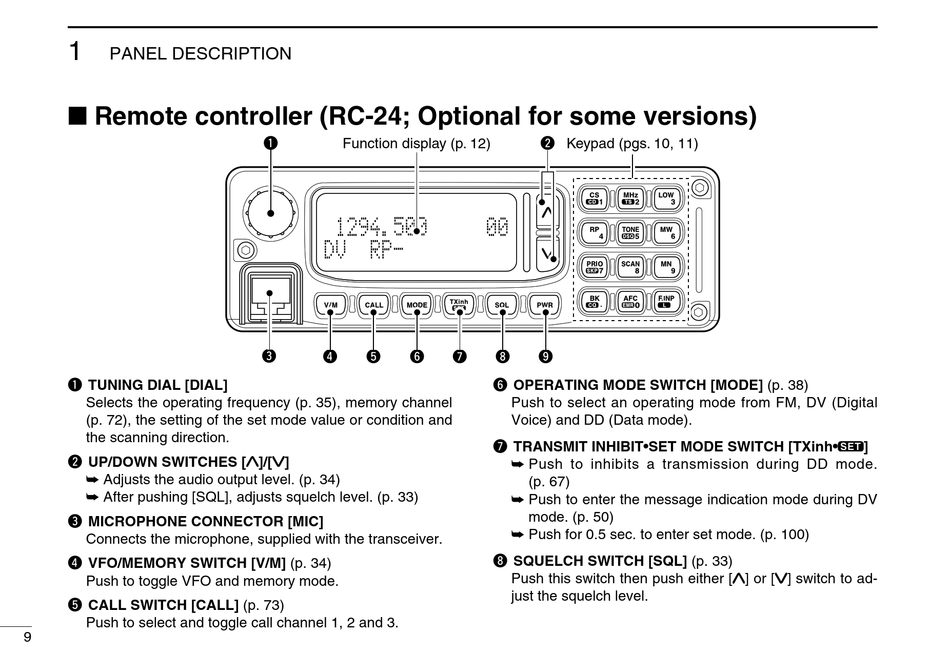

■ Remote controller (RC-24; Optional for some versions)
q TUNING DIAL [DIAL]
Selects the operatng frequency (p. 35), memory channel
(p. 72), the settng of the set mode value or condton and
the scannng drecton.
w UP/DOWN SWITCHES [ ]/[ ]
➥ Adjusts the audo output level. (p. 34)
➥ After pushng [SQL], adjusts squelch level. (p. 33)
e MICROPHONE CONNECTOR [MIC]
Connects the mcrophone, suppled wth the transcever.
r VFO/MEMORY SWITCH [V/M] (p. 34)
Push to toggle VFO and memory mode.
t CALL SWITCH [CALL] (p. 73)
Push to select and toggle call channel 1, 2 and 3.
9
Function display (p. 12)
q
1294. 500
DV RP-
e r t y
Keypad (pgs. 10, 11)
w
00
u i o
y OPERATING MODE SWITCH [MODE] (p. 38)
Push to select an operatng mode from FM, DV (Dgtal
Voce) and DD (Data mode).
u TRANSMIT INHIBIT•SET MODE SWITCH [TXinh•
➥ Push to nhbts a transmsson durng DD mode.
(p. 67)
➥ Push to enter the message ndcaton mode durng DV
mode. (p. 50)
➥ Push for 0.5 sec. to enter set mode. (p. 100)
i SQUELCH SWITCH [SQL] (p. 33)
Push ths swtch then push ether [ ] or [ ] swtch to ad-
just the squelch level.
]
