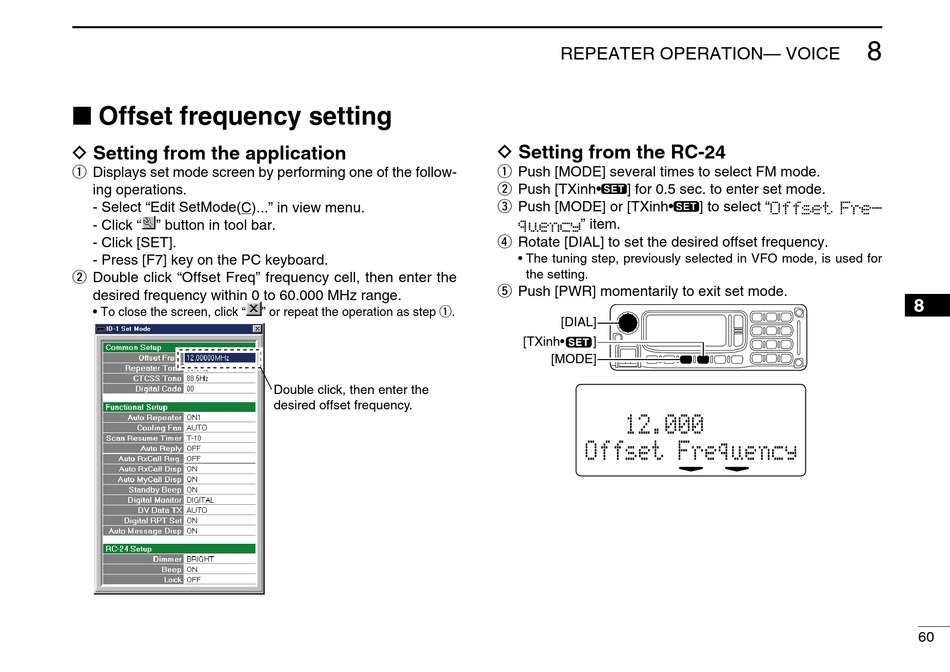

■ Offset frequency setting
D Setting from the application
q Dsplays set mode screen by performng one of the follow-
ng operatons.
- Select "Edt SetMode(C)..." n vew menu.
- Clck " " button n tool bar.
- Clck [SET].
- Press [F7] key on the PC keyboard.
w Double clck "Offset Freq" frequency cell, then enter the
desred frequency wthn 0 to 60.000 MHz range.
• To close the screen, clck " " or repeat the operaton as step q.
Double click, then enter the
desired offset frequency.
REPEATER OPERATION— VOICE
D Setting from the RC-24
q Push [MODE] several tmes to select FM mode.
w Push [TXnh• ] for 0.5 sec. to enter set mode.
e Push [MODE] or [TXnh•
quency" tem.
r Rotate [DIAL] to set the desred offset frequency.
• The tunng step, prevously selected n VFO mode, s used for
the settng.
t Push [PWR] momentarly to ext set mode.
[DIAL]
[TXinh• ]
[MODE]
12.000
Offset Frequency
8
] to select "Offset Fre-
8
60
