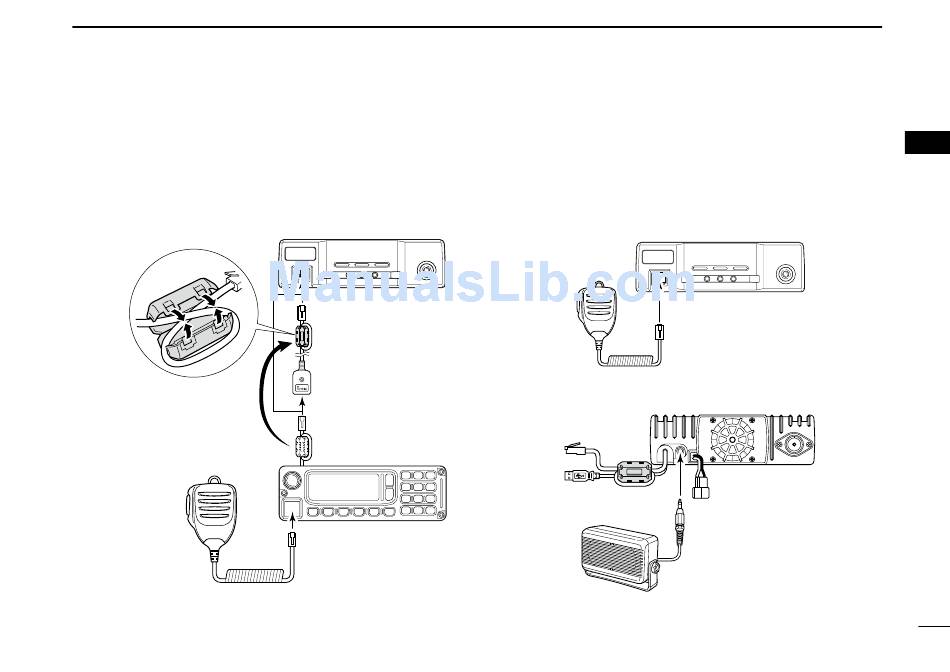

■ Microphone and speaker connections
Connect the suppled mcrophone to the [MIC] connector on
the remote controller (RC-24) or front panel and the speaker
to the [SP] connector on the rear panel as follows.
• Microphone connection through RC-24
Move the ferrite core, attached
with the RC-24, to the mic ex-
tension cable.
*The ferrite core is attached
with the RC-24 European ver-
sions only.
ID-1
to [MIC]
Mic extension
cable, OPC-647
(2.5 m; 8.2 ft)
RC-24
to [MIC]
INSTALLATION AND CONNECTIONS
• Microphone connection without RC-24
to [MIC]
• Speaker connection
*
SP-22
*The ferrte core s adopted for European versons only.
