Voice over IP Manager

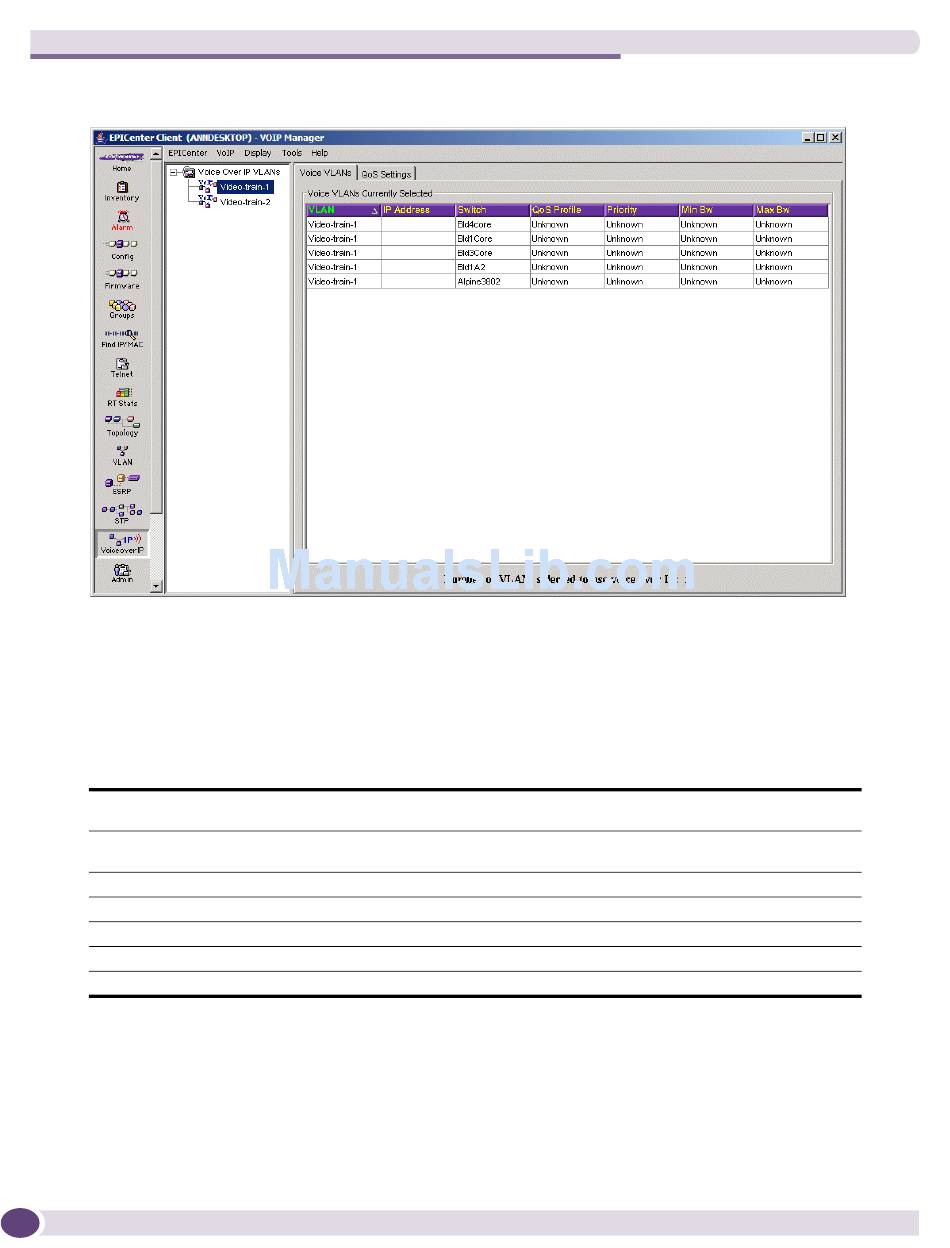

Figure 279: Voice over IP main page showing VoIP VLANs
The Voice over IP window initially displays the Voice VLANs page. Only VLANs selected for Voice
over IP are shown in this table. A message at the bottom of the window indicates how many VLANs
have been configured for Voice over IP.
If you have selected VLANs to carry VoIP traffic, this page shows a summary of the configuration,
switch by switch, of every VLAN that has been selected.
For each switch and VLAN, this table shows the following information:
VLAN
IP Address
Switch
QoS Profile
Priority
Min Bw
Max Bw
When the root node is selected in the component tree (Voice over IP VLANs) the display shows all
VoIP VLANs and their included devices. If you select an individual VLAN in the Component Tree, the
display shows only the devices that include the selected VLAN.
The Select button at the top of this window lets you select VLANs for Voice over IP.
552
The name of the VLAN. This may appear in the list multiple times if the VLAN is
configured on more than one switch.
The IP address assigned to the VLAN on the switch. This may be blank if the VLAN
does not have an IP address assigned (as is the case with the Default VLAN).
The name of the switch.
The QoS profile assigned to this VLAN on this switch.
The priority associated with the QoS profile.
The minimum bandwidth for this QoS profile.
The maximum bandwidth for this QoS profile.
