The ACL Viewer
The display includes the following information:
! (exclamation point)
Policy
Source Port
Profile
Status
Each port is listed separately in the table, as a rule is generated for each port specified by the policy,
even if they are specified in a single policy definition in the Policy Manager.
To view the Source Port QoS rules related to a device, select the device. The Source Port QoS page
displays a comparison of the "ideal" Source Port QoS rules (rules generated by the EPICenter Policy
Manager based on your policy definitions) and the rules actually configured on the device, as shown in
Figure 270.

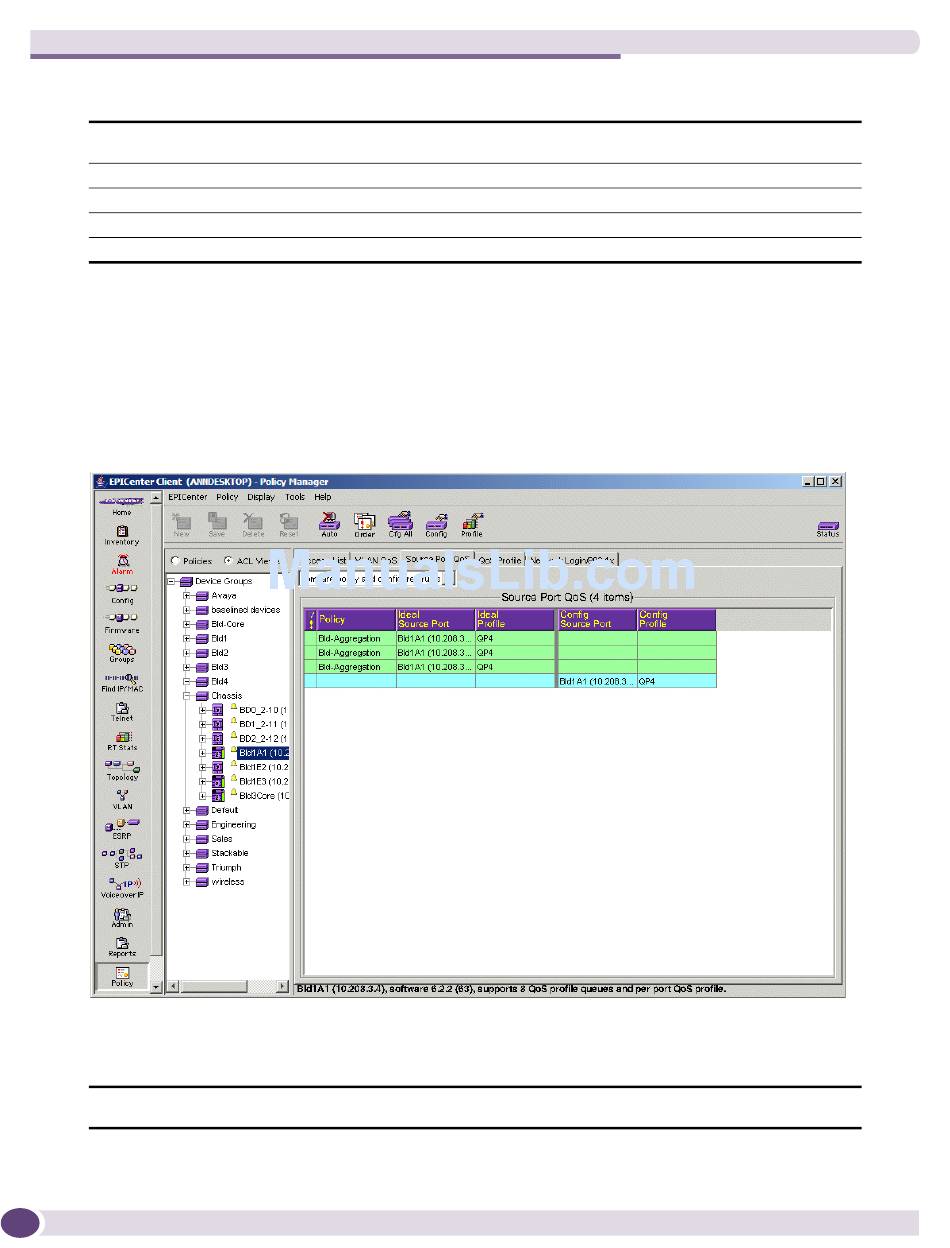

Figure 272: Source Port QoS display showing ideal and configured rules for a device
The View field at the top of the display lets you select how you want to view the device rules. You can
view the access list rules in three ways:
Compare policy and configured
rules
520
An empty column used to invoke a sort by policy precedence. Clicking the column
header will sort the policies in policy precedence order.
Displays the name of the policy.
The device and port for which this policy is specified.
The QoS profile that applies to this VLAN.
Indicates whether the traffic pattern is unique or if it duplicates another traffic pattern.
Select to compare the EPICenter-generated rules with the rules configured on the
device (as shown in Figure 268).
