Wireless Interface Report - Extreme Networks EPICenter Reference Manual

EPICenter Reports
Click on an entry in the Connected Device column in this report to view the Device Details report for
the switch to which the AP is connected.
Click on a port in the Port column to view the Wireless Port Details report for the selected port.

Wireless Interface Report

To see information on all wireless interfaces (radios) in the entire network, click the Wireless Reports
link in the left-hand panel, and then click the Wireless Interfaces link.
output.

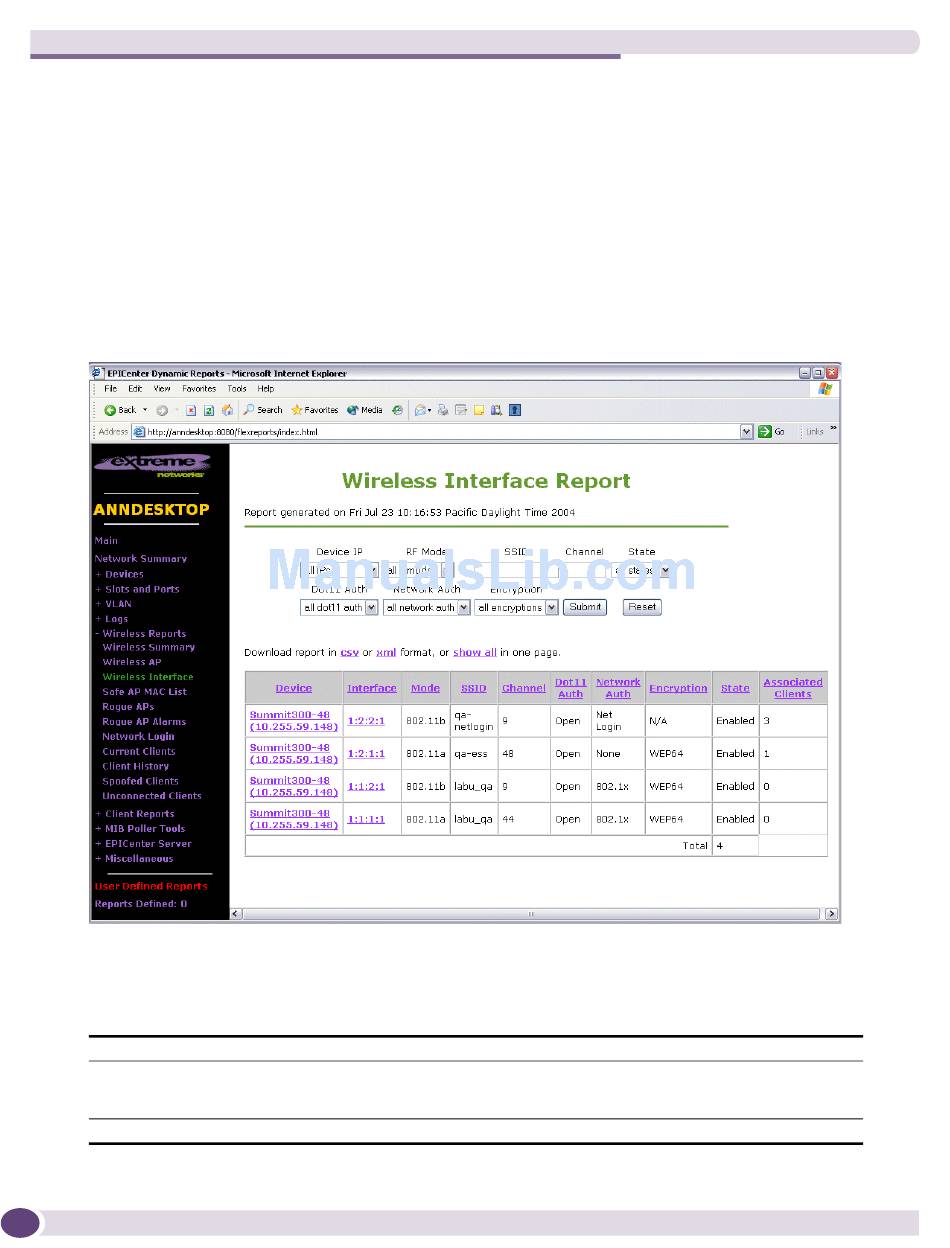

Figure 215: Wireless Interface Report
You can filter this report by IP address, RF mode, SSID, Channel, State, Dot11Authentiction method,
Network Authentication method, Encryption method, or any combination of these factors.
The initial display presents a summary at the wireless interface level:
Device
Interface
Mode
422
Name and IP address of the switch to which the wireless interface is connected
Slot, port, and interface number for this wireless interface. If the interface is a remote
connect interface, the interface number is preceded by a "v" to indicate a virtual
interface, for example v:6:1:1, v:6:1:2, or v::2:1
Wireless LAN RF mode: 802.11a, 802.11b, 802.11g, or 802.11b/g
Figure 215 shows example
EPICenter Reference Guide
