Extreme Networks EPICenter Reference Manual page 139

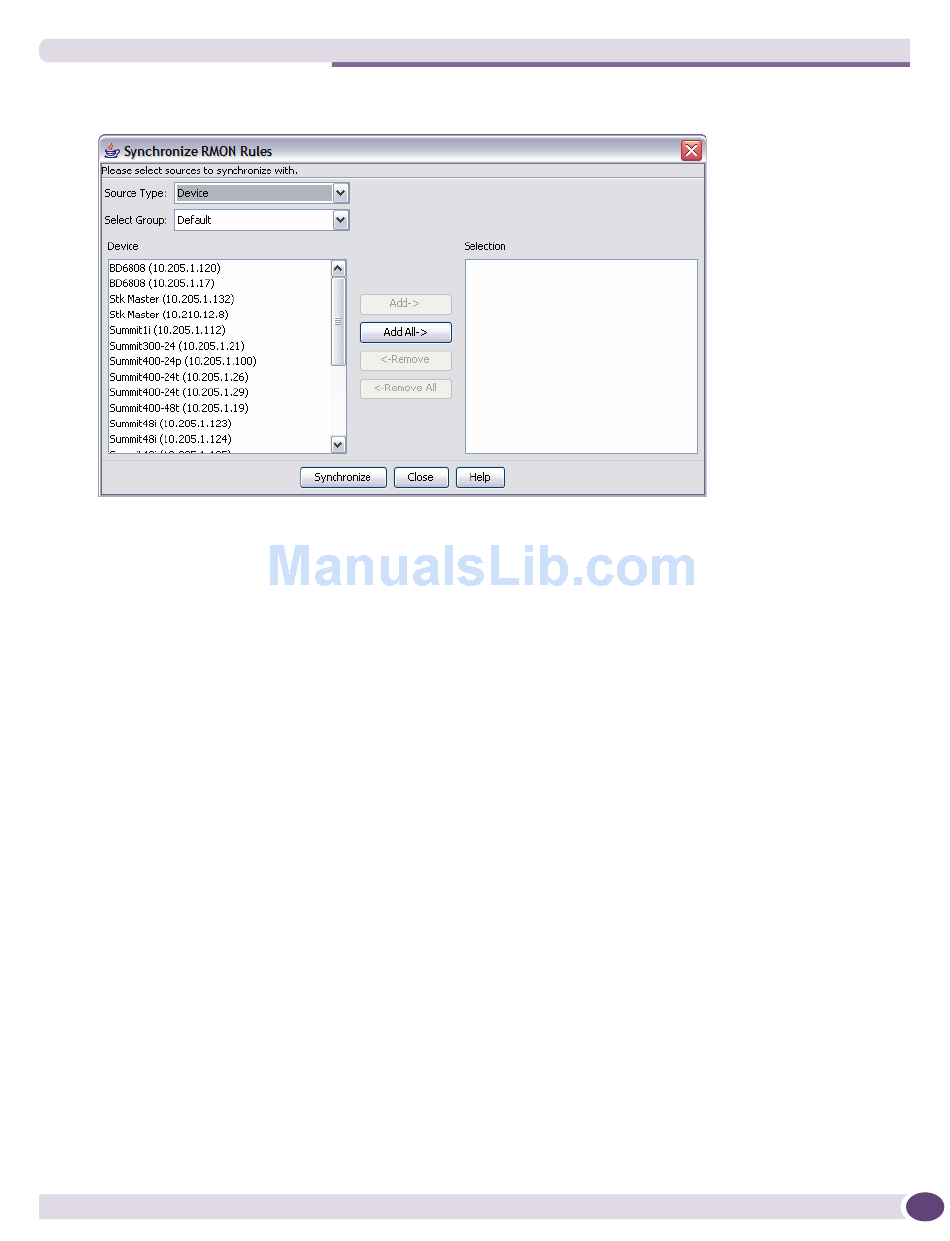

Figure 61: The Synchronize RMON Rules window
You can synchronize individual devices or all devices in a device group.
1 To select a device group, select Device Group from the pull-down list in the Source Type field. A list
of device groups is displayed.
To select individual devices, select Devices in the Source Type field. A list is displayed showing all
the Extreme Networks devices managed by EPICenter.
2 To add a device or device group to the Selection list, select the device or device group and click
Add ->. To add all devices or device groups in the list, click Add All ->.
3 To remove a device or device group from Selection list, select the item and click <- Remove. To
remove all devices or device groups, click <- Remove All.
4 Click Synchronize to initiate the synchronization process.
The Alarm Manager uses SNMP to retrieve configuration and status information from each selected
switch, and updates the database with that information.
5 The Synchronize function displays a dialog box with status or error information. Click OK to
continue.
6 Click Close to exit the Synchronize RMON Rules window.
EPICenter Reference Guide
Synchronizing EPICenter with Device RMON Rules
139
