Table 55: Columns in the Links Table
Column
IP Address
Port
The Shared Ports Display
If a link is a shared link, that fact is indicated by the presence of an SP link in the Shared Port column of
the Links table (see Table

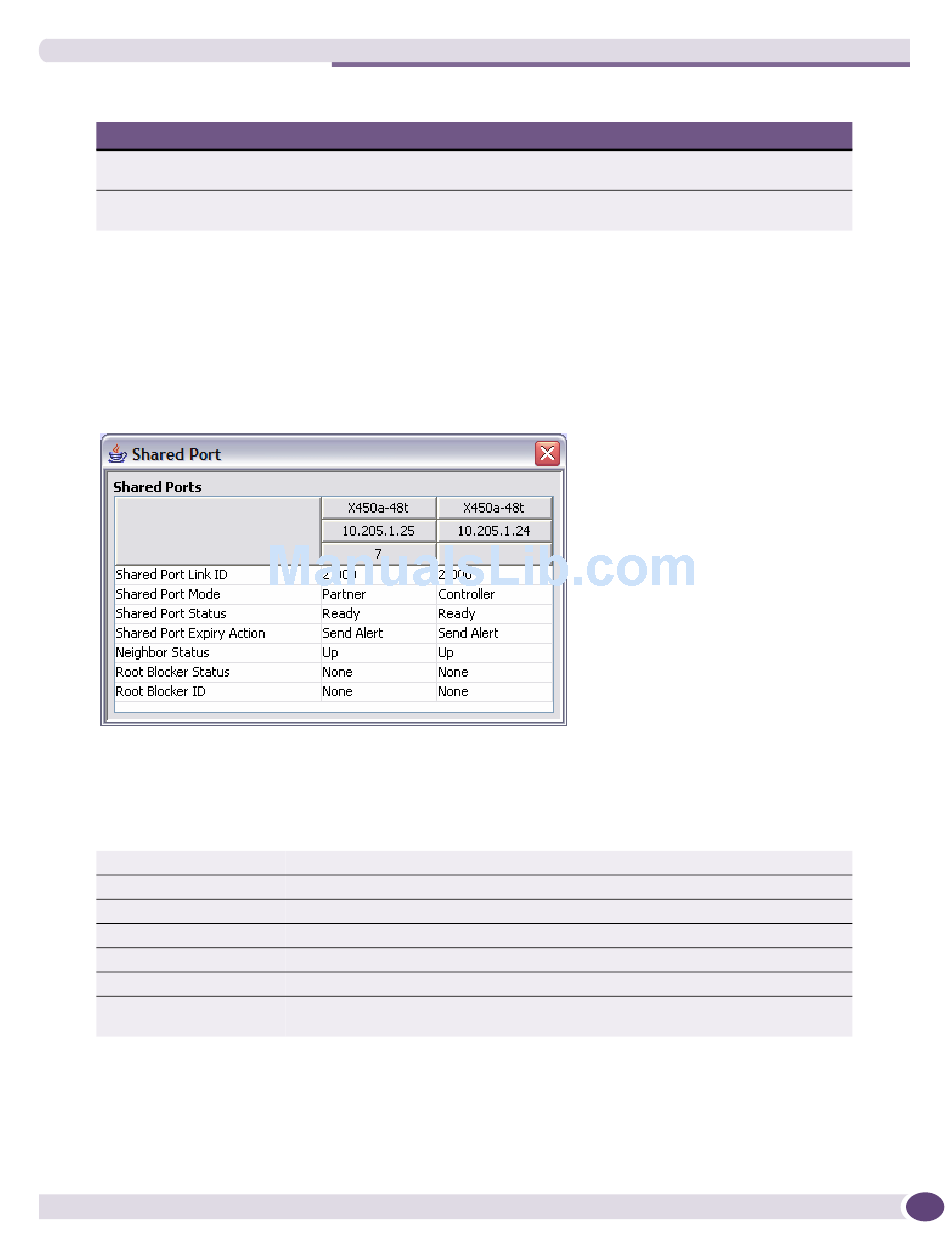

Figure 246 shows the Shared Ports window.
Figure 246: The Shared Ports display
The two columns are headed by the device names, IP addresses, and ports that define the shared link.
For each of the ports, the display shows the following information:
Table 56: Shared Ports window
Shared Port Link ID
Shared Port Mode
Shared Port Status
Shared Port Expiry Action
Neighbor Status
Root Blocker Status
Root Blocker ID
EPICenter Reference Guide
The IP address of the second endpoint device. Clicking the IP address also
displays the Device Properties window.
The port on which the link exists on the second endpoint device. Click the port
number to display the Port Properties window (see
55). Click the SP in the shared port column to open the Shared Port display.
An integer configured on the switch for the shared port
Whether the node acts as a Controller or a Partner node for this shared link.
Status of the shared port: Idle, Ready, Blocking, Preforwarding.
Action to be taken when the Shared Port fail timer expires.
Status of the neighboring node: Down, Up, Error
The status of the port if it is a root blocker, else None if it is not a root blocker)
An integer configured for the port when it is configured as a root blocker. None if
the port is not a root blocker.
