Information about VLAN configurations is obtained when a switch is added to the database.
The VLAN Manager can display information either by VLAN (showing all the switches with ports that
are members of a specific VLAN) or by switch (showing the VLANs that have members on a specific
switch).
Select the By VLAN button to display VLANs at the first level of the Component Tree. Listed under
●
each VLAN is every switch that has the VLAN defined on it (see
When the top level of the tree (the VLANs node) is selected, the right hand panel displays a list of
all VLANs configured on the Extreme Networks switches included in the EPICenter database. The
All VLANs display includes:
Name
Tag
Protocol
Select an individual VLAN to view a summary of the configuration of the switches and ports that
are members of that VLAN.
Select the By Switch button to display switches at the first level of the Component Tree. Listed
●
under each switch is every VLAN that is defined on the switch, as shown in
When the top level of the tree (the Switches node) is selected, the right hand panel displays a list of
the Extreme Networks switches known to the EPICenter database on which VLANs are configured.

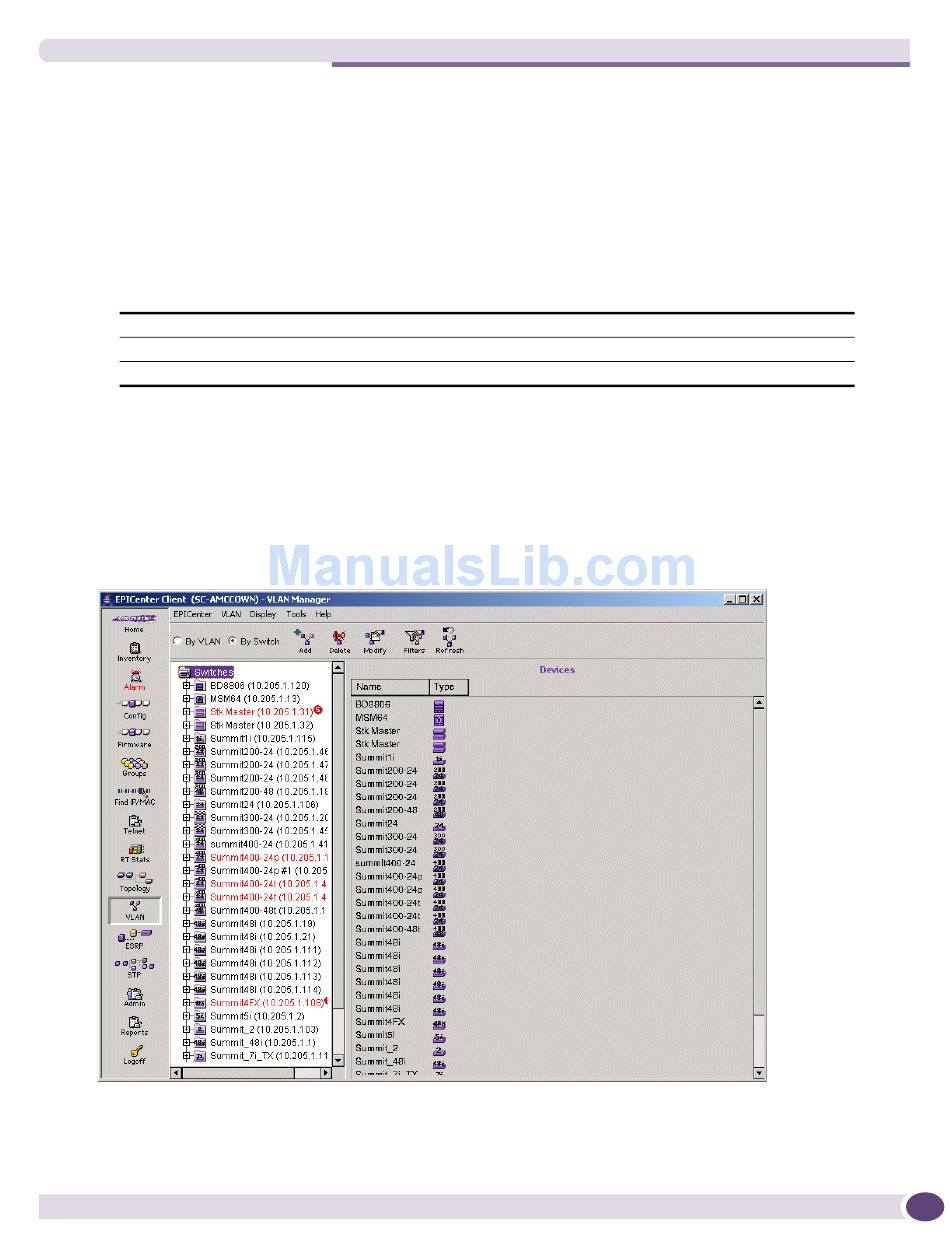

Figure 154: VLAN Manager view By Switch, showing VLANs organized by device
EPICenter Reference Guide
The VLAN name
The VLAN tag value (if any) or "Untagged"
The protocol filter configured for the VLAN
Displaying a VLAN
Figure 153).
Figure 154.
