Extreme Networks EPICenter Reference Manual page 237

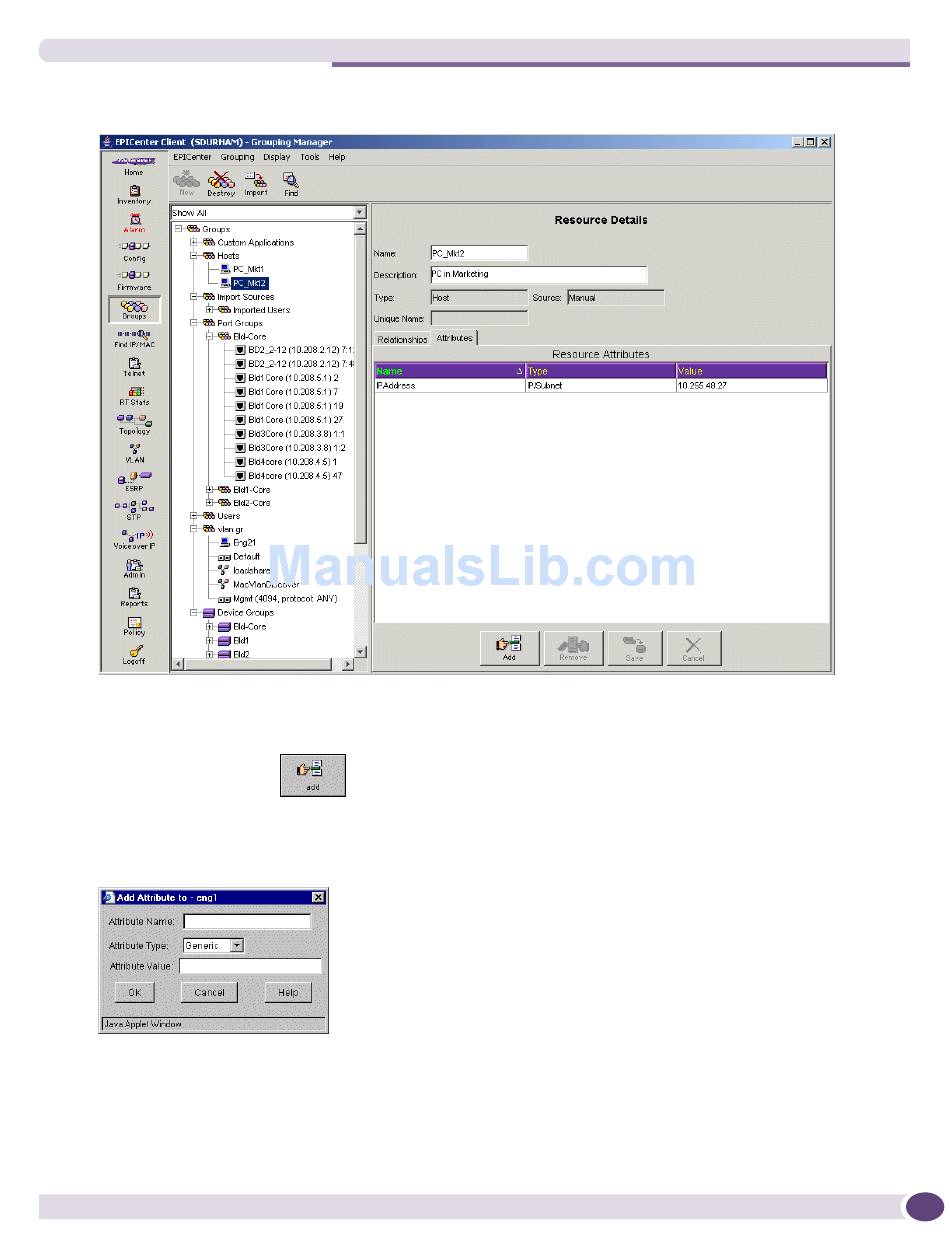

Figure 111: Resource attribute display
To add an attribute to the displayed resource, do the following:
1 Make sure the Attributes page is displayed. If it is not, the Add button is not present.
2 Click the Add button
The Add Attributes pop-up dialog appears, as shown in
Figure 112: Adding attributes to a resource
3 Enter the name of the attribute in the Attribute Name field.
4 Select an attribute type from the drop-down list in the Attribute Type field. You can choose from
the first three for all groups but Custom Applications. For Custom Applications, L4 is the only
allowed attribute type:
EPICenter Reference Guide
.
Adding and Removing Attributes
Figure 112.
237
