Installing The Processor Air Duct; Figure 22. Installing The Processor Air Duct (Sr1630Gp) - Intel SR1630GP - Server System - 0 MB RAM Service Manual

Installing the Processor Air Duct

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Lower the air duct into place, insert the two hooks at the front of the processor air
duct into the corresponding slots on the bracket behind the two system blower fans
(see
pinch or disengage cables that may be near or under the air duct.
5. Install the server system cover. For instructions, see
Cover".
®
Intel Server System SR1630GP / SR1630HGP Service Guide
iii.
30.
Figure 22for SR1630GP); see

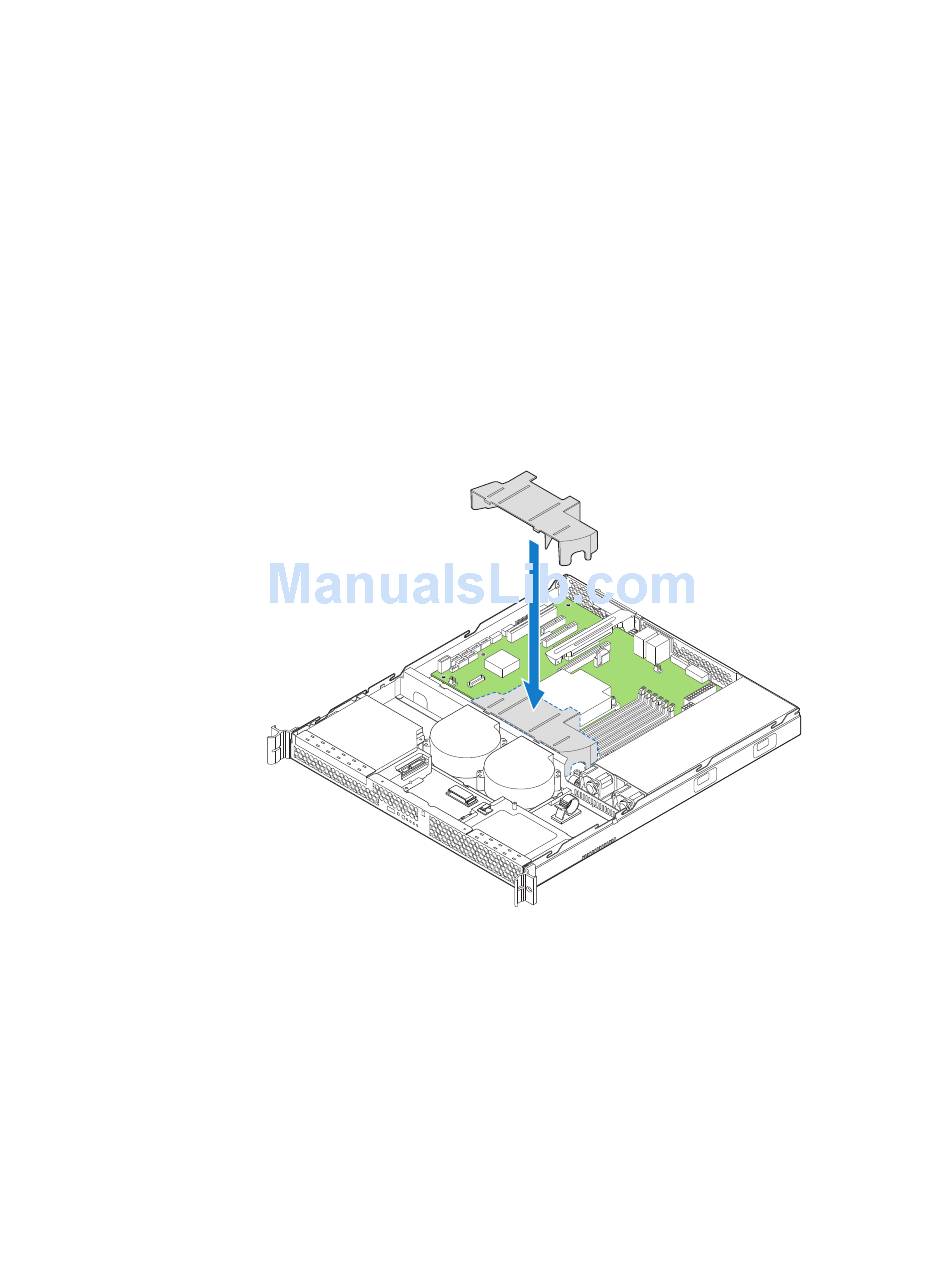

Figure 22. Installing the Processor Air Duct (SR1630GP)
