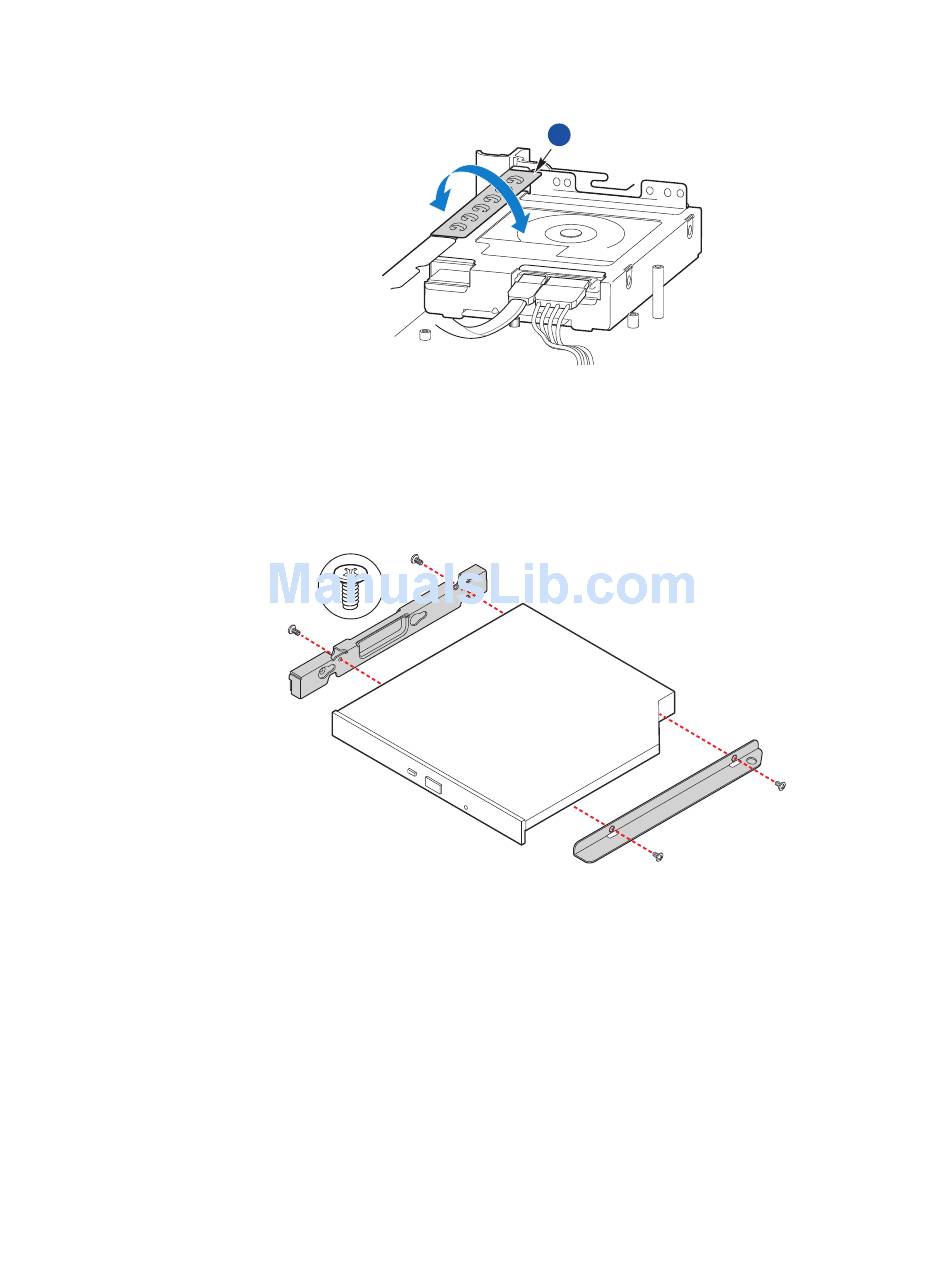

Figure 41. Removing the Knock-out from the Sheet Metal Panel

6. Attach the optical drive to the brackets, using the four screws as shown in
Figure
7. Slide the optical drive assembly in through the front of the chassis, as shown by
letter "A in
8. Reinstall the screw that you removed in Step 5.
9. Connect the mini SATA power connector on the optical drive.
10. Connect the data cable to the optical drive and to the SATA connector on the server
board.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
42.

Figure 42. Attaching the Optical Drive to the Brackets

Figure 43.
A
AF001174
AF000672
55
