Removing and Installing the Front Bezel

The front bezel is available as an optional accessory for the Intel
SR1630GP / SR1630HGP. Note the orientation in the following figures and make sure
you position your bezel as shown.

Removing the Front Bezel

If your system includes a front bezel, use the following steps.
1. Unlock the bezel.
2. Pull the bezel from the server system.
28

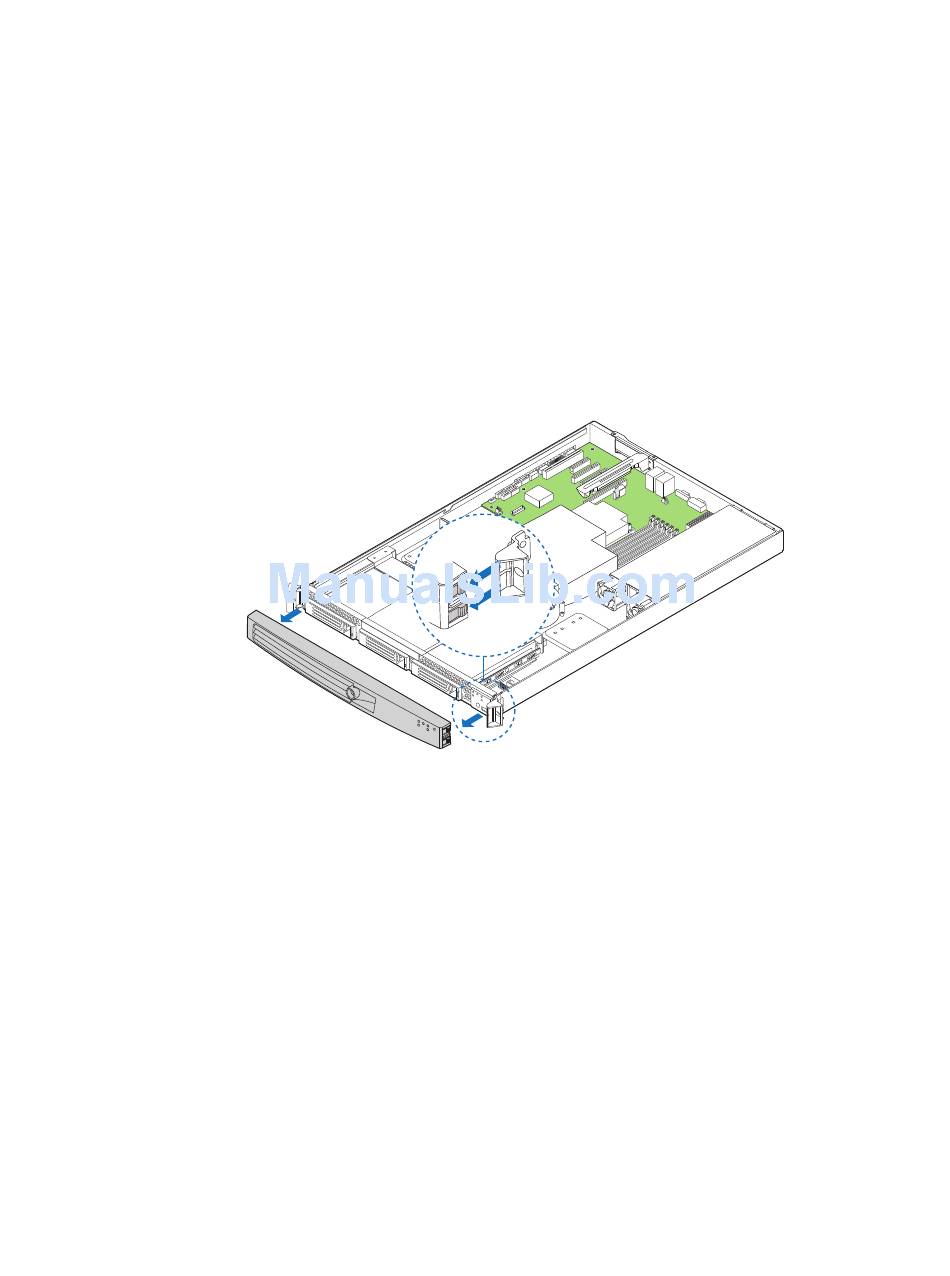

Figure 14. Removing the Front Bezel

®
Intel
Server System SR1630GP / SR1630HGP Service Guide
®
Server System
AF003246
