7. Lift the fan from the system (see letter "C" in Figure 75).
AF003278

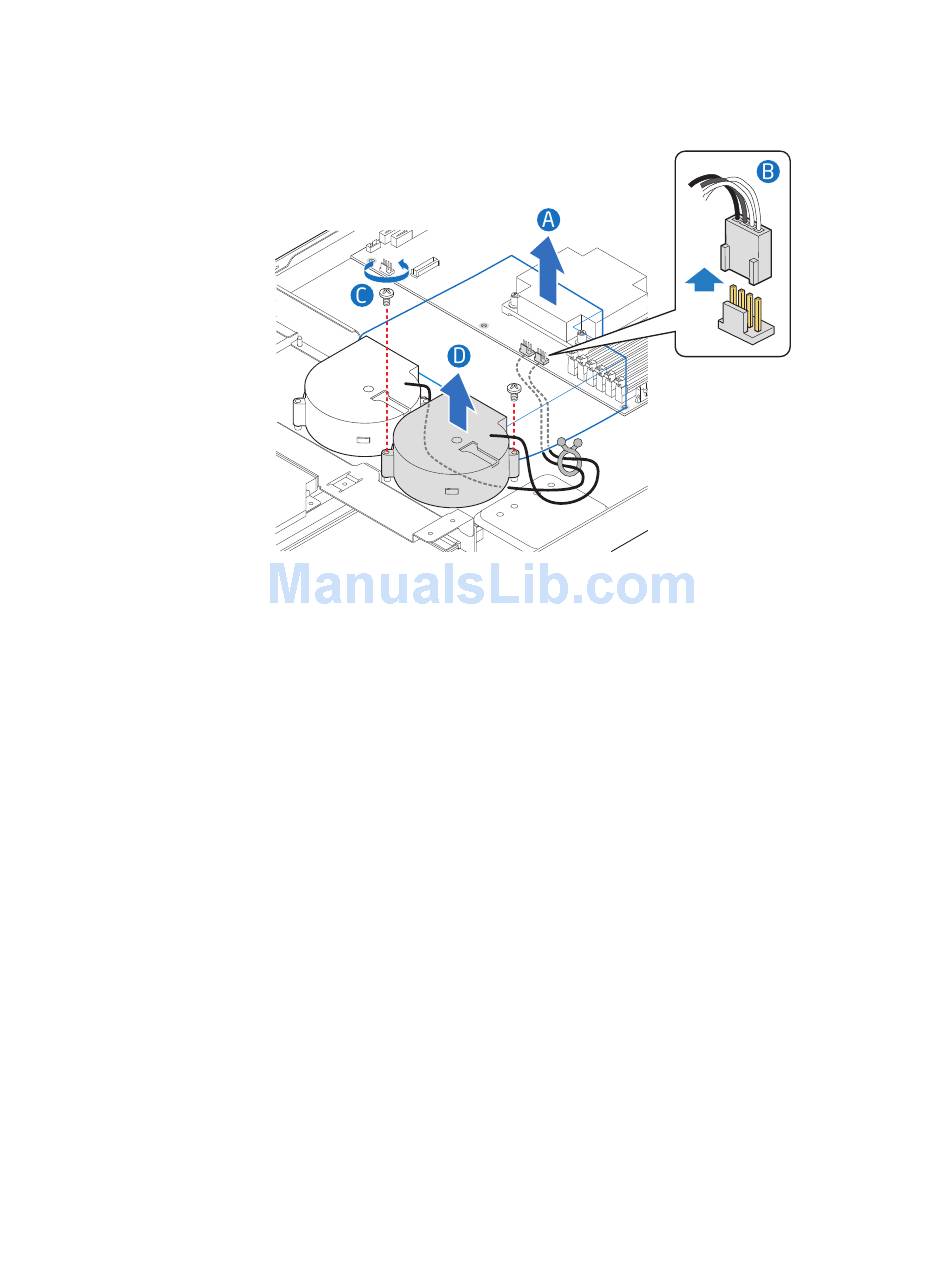

Figure 75. Removing Fan from the Server System (SR1630HGP)
8. Install the replacement fan into the chassis (see letter "A" in Figure 76), using the
two screws you removed previously.
9. Connect the fan cable to the server board (see letter "B" in Figure 76).
10. Install the processor air duct (see letter "C" in Figure 76).
®
92
Intel
Server System SR1630GP / SR1630HGP Service Guide
