5. Remove the screw at the rear of the riser assembly. See letter "A" in
Save this screw. You will reinstall it later.
6. If a filler panel is installed over the opening at the rear of the riser assembly, lift it
from the riser assembly. See letter "B" in Figure 54. Save the filler panel in case
you later need to remove the add-in card.
7. Insert the add-in card into the socket in the riser assembly. Push the add-in card into
place firmly until it seats in the riser card connector, but use caution so you do not
twist or bend the card. See letter "C" in Figure 54.
8. Re-install the screw you removed in Step 5. See letter "A" in Figure 54.
9. Install the PCIe* Riser assembly into the server system. For instructions, see
"Installing the PCIe* Riser Assembly" on page
10. Install the server system cover. For instructions, see
Cover".
11. Plug all peripheral devices and the AC power cable into the server.
Removing a PCI Add-in Card
1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Remove the PCIe* Riser assembly. For instructions, see
Riser Assembly" on page
66
C

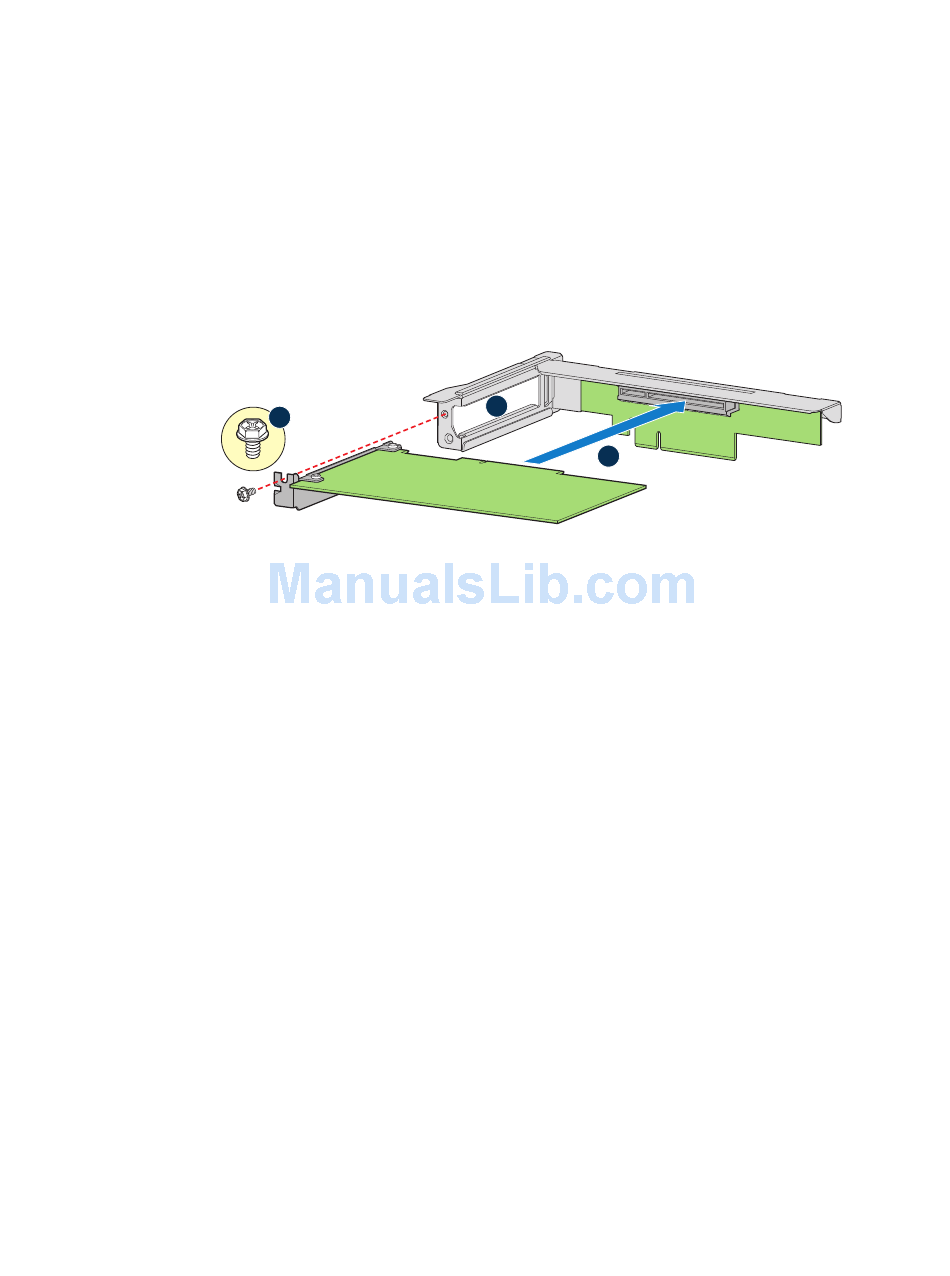

Figure 54. Installing an Add-In Card
iii.
30.
61.
Intel
A
B
62.
"Installing the Server System
®
Server System SR1630GP / SR1630HGP Service Guide
Figure
54.
Riser Assembly
Supports one
PCIe* card.
AF003286
"Safety
"Removing the Server
"Removing the PCIe*
