4. Wait five seconds.
5. Move the jumper back to default position, covering pins 1 and 2.
6. Close the server chassis.
7. Reconnect the AC power and power up the system. The CMOS is cleared and can
be reset by going into the BIOS setup.

Updating the Integrated BMC

When performing the standard Integrated BMC firmware update procedure, the update
utility places the Integrated BMC into an update mode, allowing the firmware to load
safely onto the flash device. In the unlikely event the Integrated BMC firmware update
process fails (due to the Integrated BMC not being in the proper update state), the server
®
Intel Server System SR1630GP / SR1630HGP Service Guide
CMOS
Default
Clear
2
CLEAR
J1F5
CMOS
3

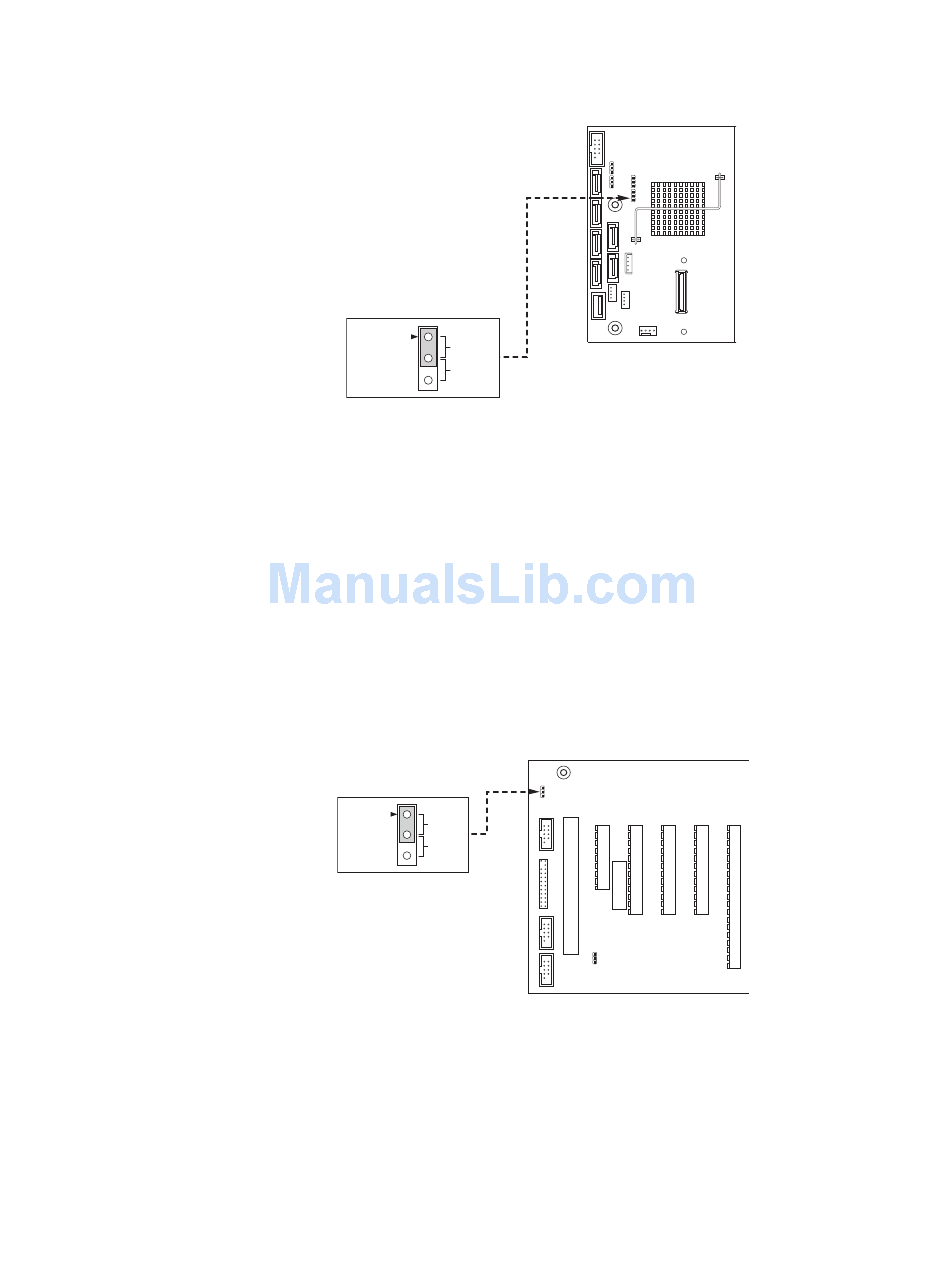

Figure 12. CMOS Recovery Jumper

BMC
Default
Force
2
Update
Enabled
J1A2
3

Figure 13. BMC Force Update Jumper

AF003182
AF003291
25
