Figure 33. Installing Drive Into Drive Carrier (Sr1630Gp); Figure 34. Install Drive Assembly Into The Server System (Sr1630Gp) - Intel SR1630GP - Server System - 0 MB RAM Service Manual

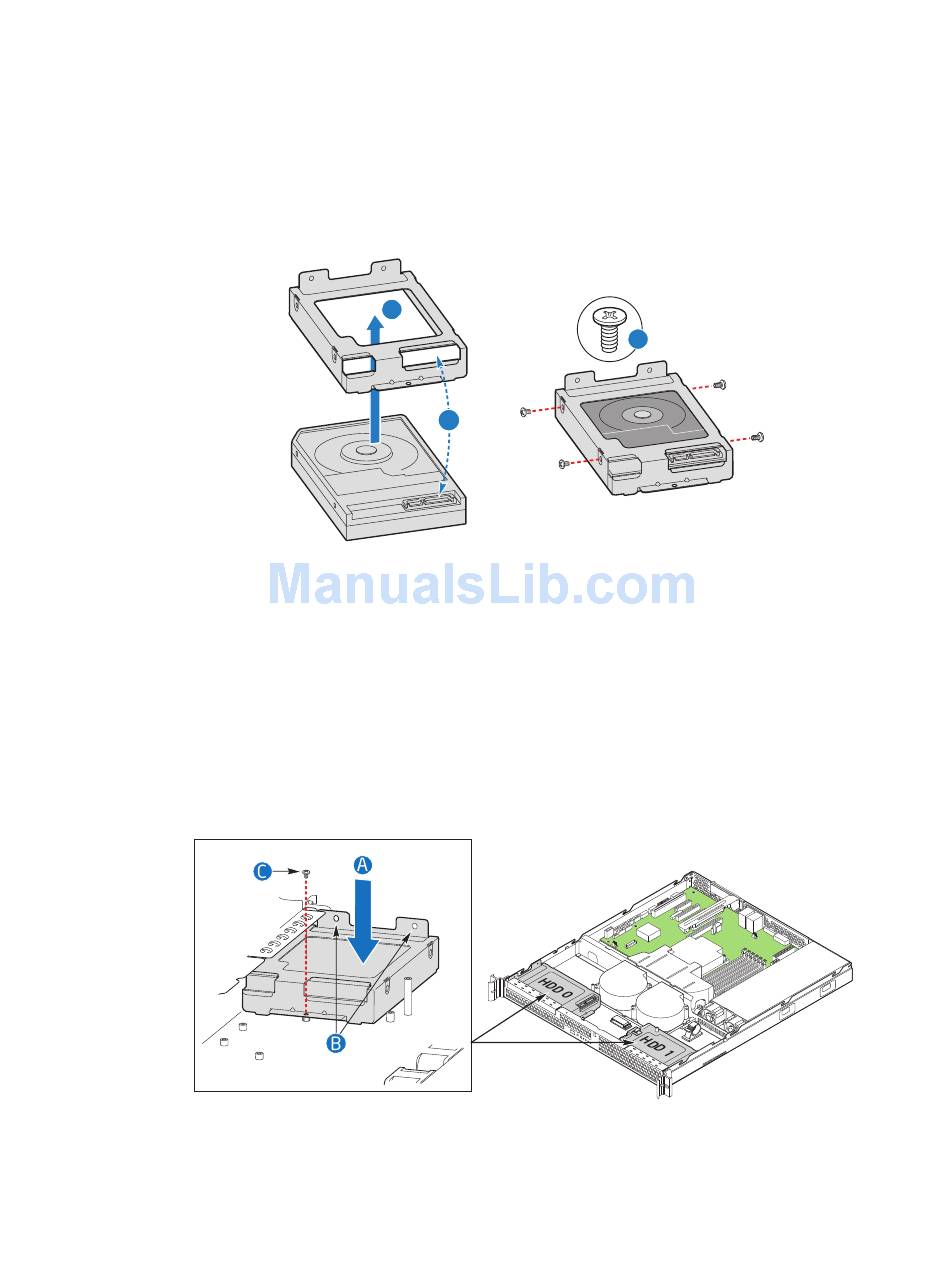

8. Position the drive with the drive connectors facing up as shown in Figure 33.
9. Set the drive carrier over the drive, as shown by the letter "A" in the figure. The
data and power connectors must be positioned so they are accessible through the
cut-out as shown by letter "B".
10. Use the four screws provided to attach the drive to the carrier. See letter "C" in
Figure 33.
11. Set the drive assembly into place in the chassis. See letter "A" in Figure 34.
12. Attach the drive assembly to the chassis side with two screws. See letter "B" in
Figure 34.
13. Attach the drive assembly to the chassis with the screw you removed in Step 6. See
letter "C" in Figure 34.
Note: You must install the assembly that contains the optical drive bracket at the left side of the
system.

Figure 34. Install Drive Assembly into the Server System (SR1630GP)
