6. If you need to add or replace a PCIe* Riser connector, see
a PCIe* Riser Card" on page
7. If you need to add or replace a PCI add-in card, see
Add-in Card" on page
8. If you removed the PCIe* Riser assembly for another procedure, continue with that
procedure.

Installing the PCIe* Riser Assembly

Note: For clarity, the figures in this series of instructions does not show an attached add-in
card. If you are installing an add-in card, do so before installing the PCIe* riser assembly
into your server system.
1. Lower the riser assembly into place over the add-in card slot. See letter "A" in
Figure 51.
2. Align the three hooks in the riser assembly with the matching slots at the back of
the server system. See letter "B" in Figure 51.

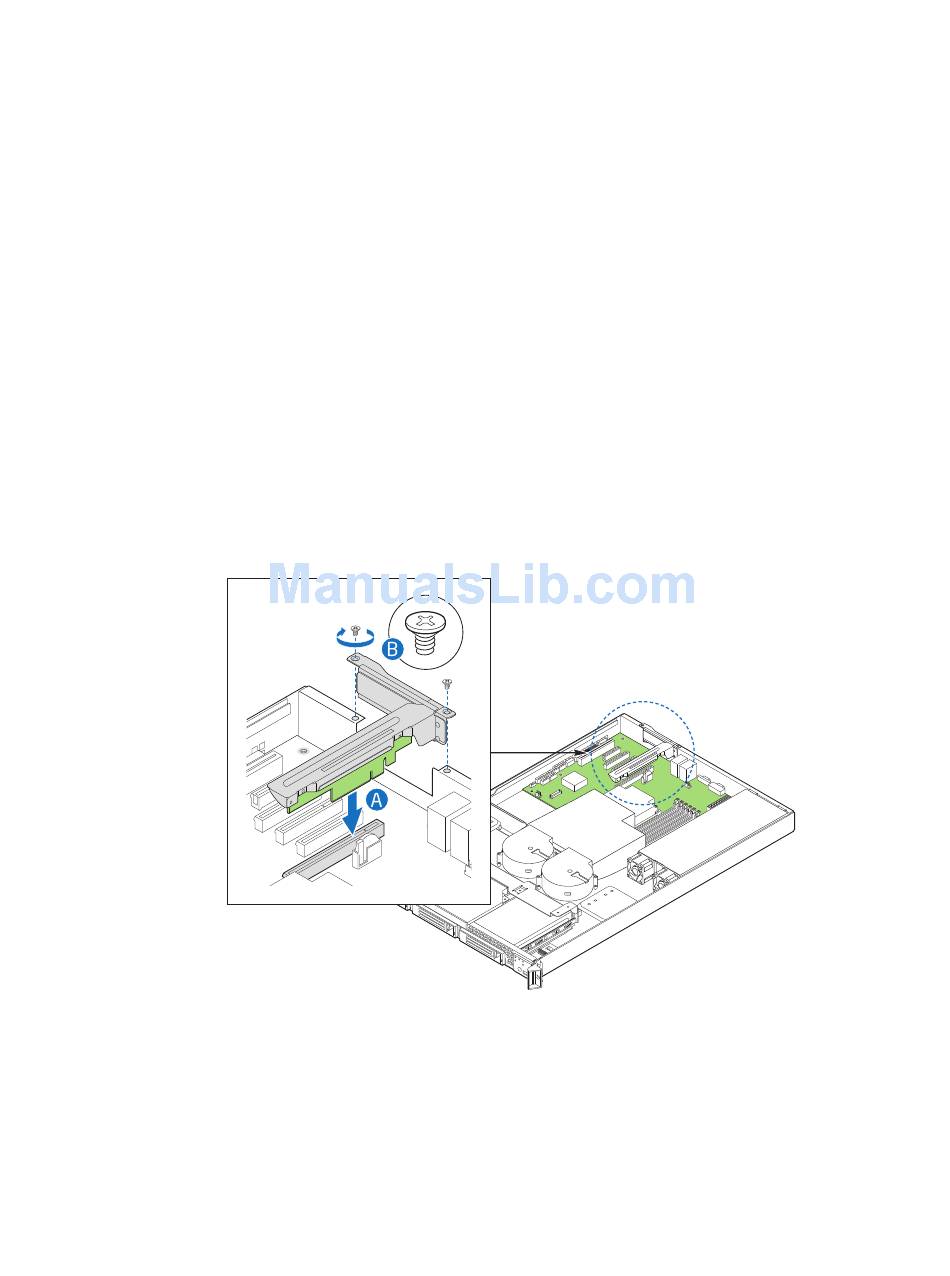

Figure 51. Installing PCIe* Riser Assembly into the Server System

3. Press down uniformly until the two hooks on the rear of the PCIe* riser assembly
engage the server system back panel slots. The riser cards will seat into the
matching sockets on the server board.
62
63.
65.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
"Installing or Replacing
"Installing and Removing a PCI
AF003260
