Installing and Removing the PCIe* Riser
Assembly
Caution: The PCIe* riser assembly is NOT hot-swappable. Before removing or replacing the PCIe*
riser assembly, you must first take the server out of service, turn off all peripheral devices
connected to the system, turn off the system by pressing the power button, and unplug the
AC power cord from the system or wall outlet.

Removing the PCIe* Riser Assembly

To remove the PCIe* riser assembly, use the following instructions.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Disconnect any cables attached to any add-in cards.
5. Lift riser assembly up to remove it. Use caution to gently ease the riser card from
the add-in card slot so you do not damage the slot or the riser card. See

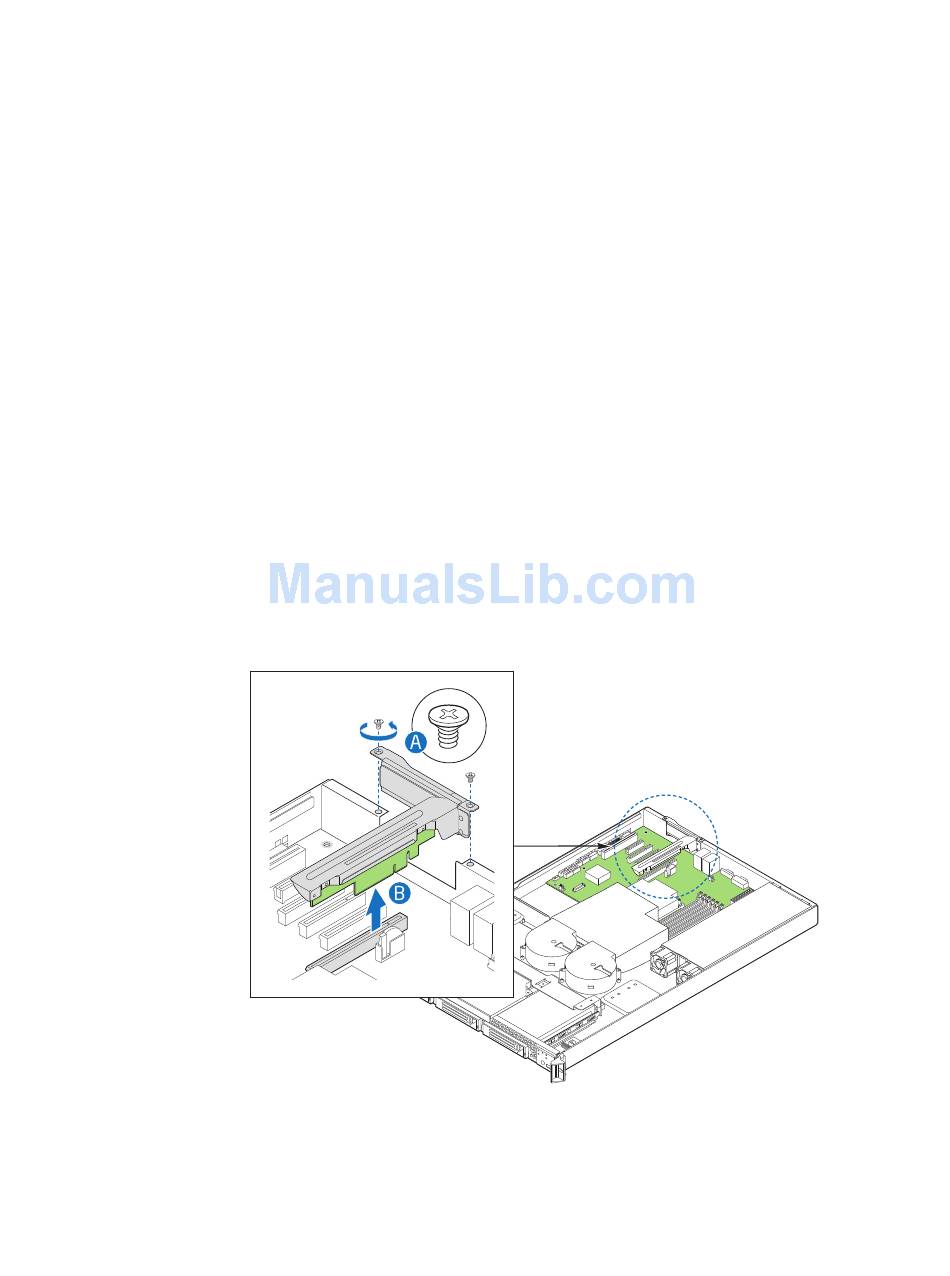

Figure 50. Removing PCIe* Riser Assembly from the Server System

®
Intel Server System SR1630GP / SR1630HGP Service Guide
iii.
30.
"Safety
"Removing the Server
Figure
AF003259
50.
61
