10. With the black lever in the fully open position, slide the drive assembly into the
server system (see letter "A" in Figure 40). The green latch at the front of the drive
carrier must be to the right. Do not push on the black drive carrier lever until the
lever begins to close by itself.
11. When the black drive carrier lever begins to close by itself, push on it to lock the
drive assembly into place (see letter "B" in Figure 40).

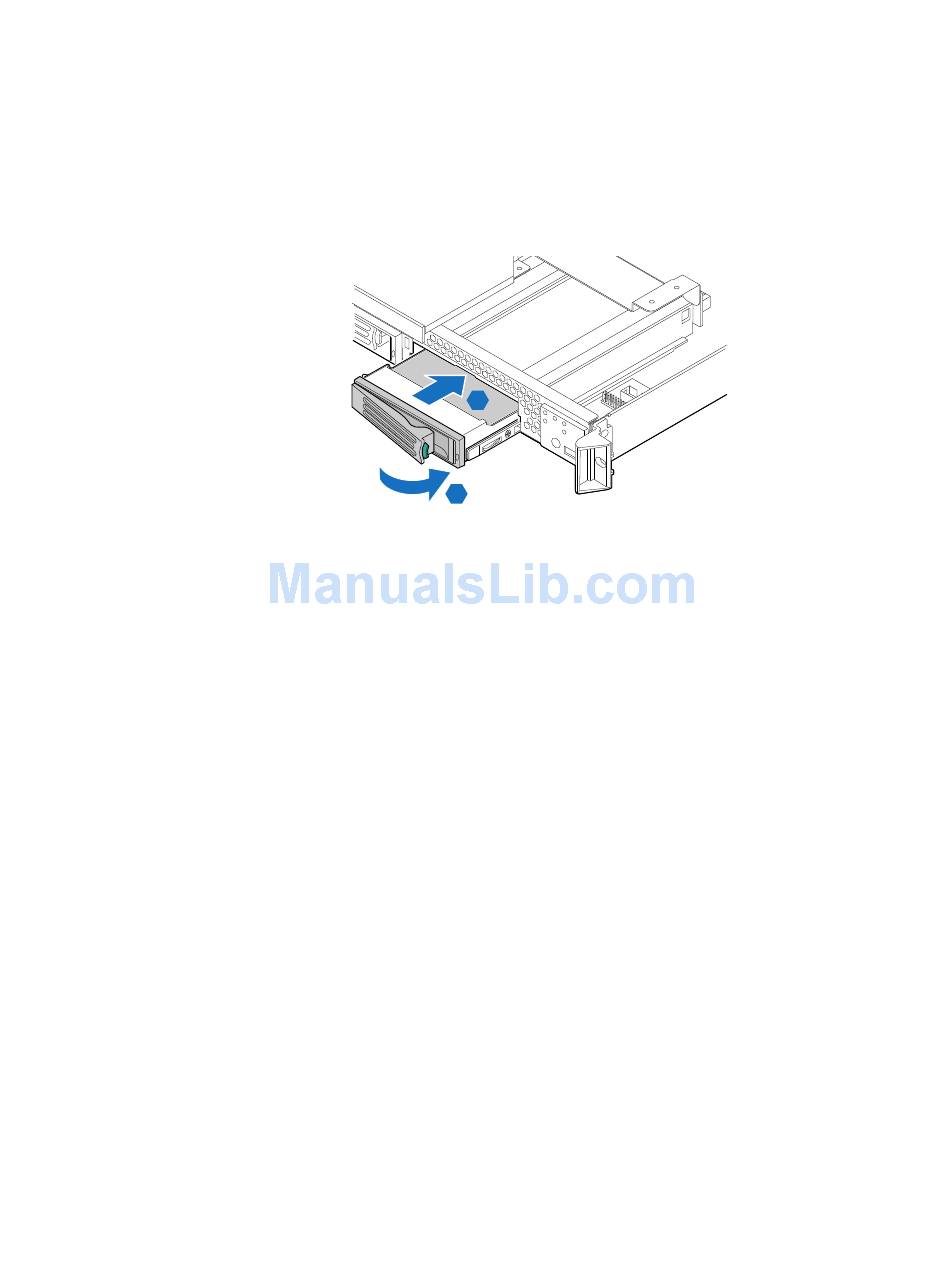

Figure 40. Install Drive Assembly into the Server System (SR1630HGP)

12. Install the server system cover. For instructions, see
Cover".
13. (Optional) Install the front bezel. For instructions, see
14. Plug all peripheral devices and the AC power cable into the server.

Removing a Hot-Swap SATA Drive (SR1630HGP)

1. If it is installed, remove the front bezel. For instructions, see
Bezel".
2. Press in on the green latch at the front of the hard drive carrier.
3. Pull out on the black lever to slide the carrier from the server system.
4. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive
from the carrier. Store the drive in an anti-static bag.
5. If you are not installing a new drive, place the plastic retention device into the drive
carrier, using the four screws you removed from the hard drive.
6. Insert the screws that held the drive in the carrier into the screw locations on the
carrier for future use.
7. With the black lever in the fully open position, slide the drive carrier into the server
system. The green latch must be to the right. Do not push on the black lever until
the lever begins to close by itself.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
A
B
AF001585
"Installing the Server System
"Installing the Front
"Removing the Front
Bezel".
53
