Removing and Installing the Processor Air Duct and

Processor Air Dam

Always operate your server chassis with the processor air duct in place. The air duct is required to

maintain proper cooling of the processors.

For instructions on adding or replacing a processor, first remove the processor air duct and the

processor air dam, and then see your server board user guide for instructions on processor

installations and removals. Return to these instructions to reinstall the processor air dam and the

processor air duct after installing your processor and heat sink.

1. Observe the safety and ESD precautions at the beginning of this book. See

Information."

2. Power down the server and unplug all peripheral devices and the AC power cable or DC

external source.

3. Remove the chassis cover. For instructions, see

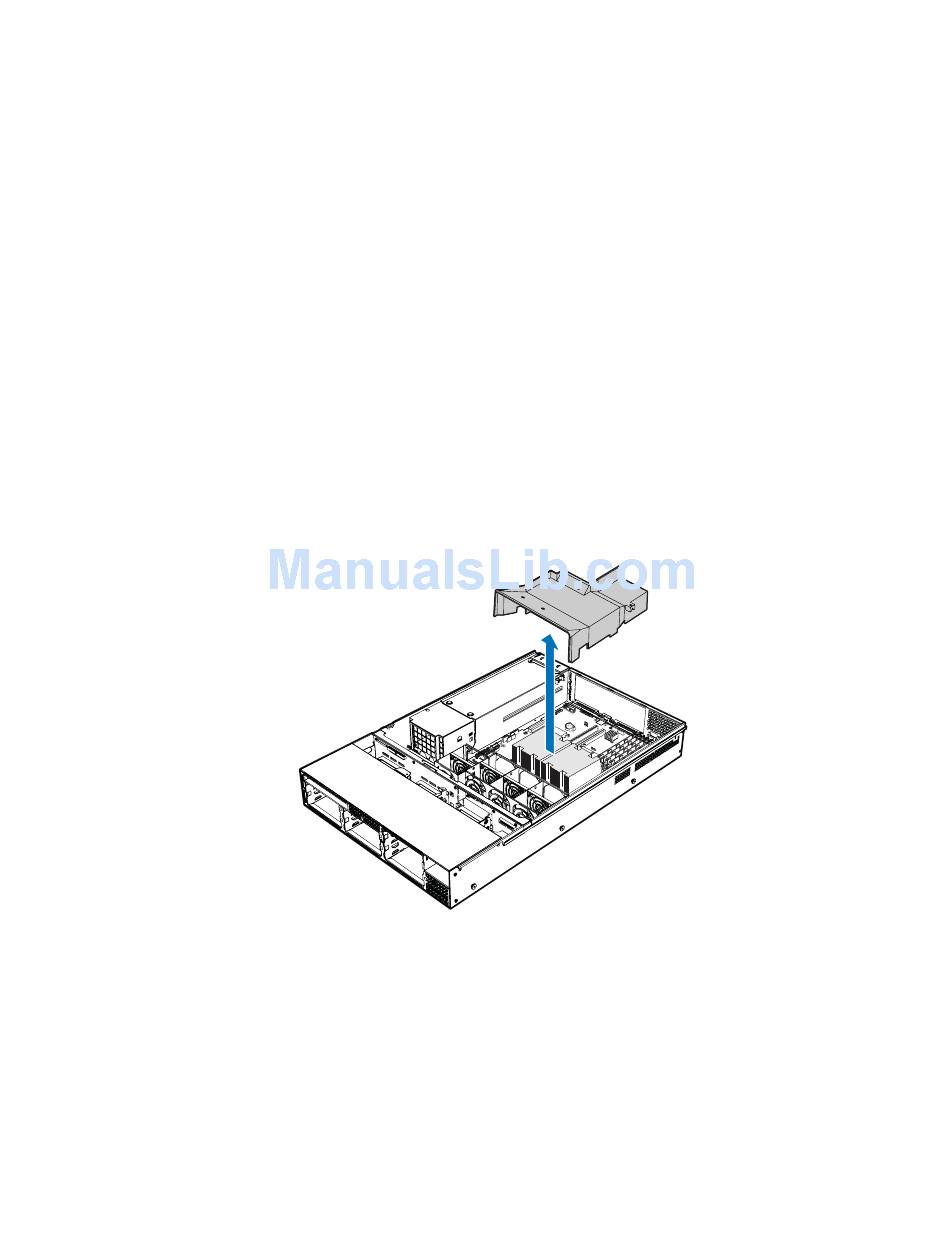

4. Lift the processor air duct from its location over the processor socket(s). See the figure below.

"Removing the Chassis Cover."

TP01343

"Safety
