Removing A Slimline Optical Drive (Sr1630Hgp); Figure 47. Installing The Optical Drive Into The System - Intel SR1630GP - Server System - 0 MB RAM Service Manual

7. Slide the optical drive assembly in through the front of the chassis (see letter "A" in
Figure 47).
8. Install the screws to lock the drive in place (see letters "B" and "C" in Figure 47).
9. (Optional) Install the front bezel. For instructions, see
on page
10. Install the server system cover. For instructions, see
Cover".

Removing a Slimline Optical Drive (SR1630HGP)

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. If it is installed, remove the bezel. For instructions, see
Bezel" on page
5. Remove the screws holding the drive in place (see letters "A" and "B" in Figure 48)
and slide the optical drive assembly out through the front of the chassis (see letter
"C" in Figure 48).
®
Intel Server System SR1630GP / SR1630HGP Service Guide
C
A

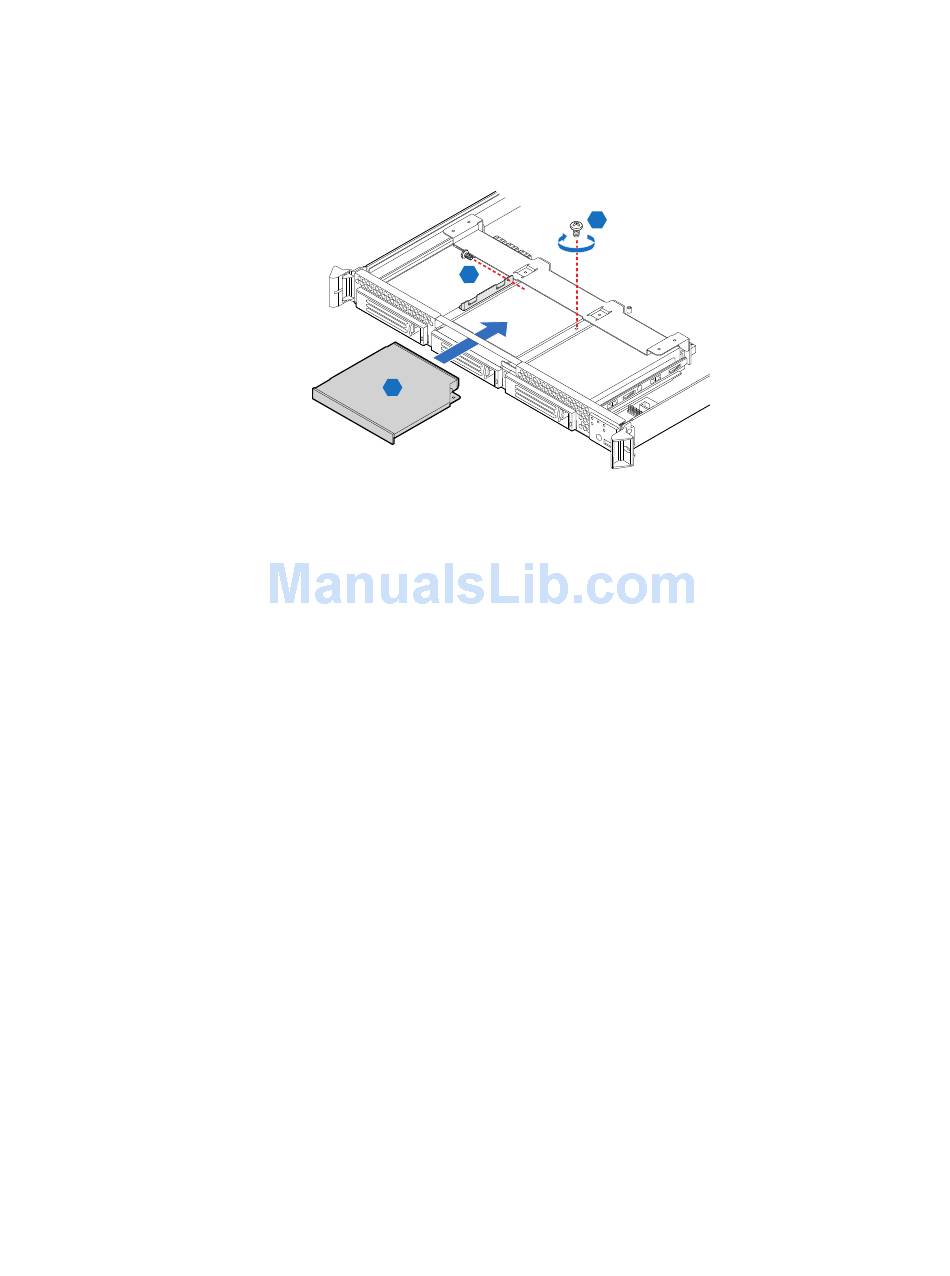

Figure 47. Installing the Optical Drive into the System

29.
iii.
30.
28.
B
AF001636
"Installing the Front Bezel"
"Installing the Server System
"Removing the Server
"Removing the Front
"Safety
59
