10. Lower the CPU load plate.
11. Lower the socket lever.
12. Install the heat sink. For instructions, see

Installing the Heat Sink

Before installing the heat sink, you must install your processor. For instructions, see
"Installing the Processor" on page
Caution: The heat sink has Thermal Interface Material (TIM) located on the bottom of it. Use
caution when you unpack the heat sink so you do not damage the TIM.
1. Remove the protective cover from the TIM on the underside of the heat sink. Do
not touch the TIM.
2. Orient the heat sink over the processor as shown in Figure 30. You must position
the fins as shown to provide correct airflow through the system.
3. Set the heat sink over the processor, lining up the four captive screws with the four
posts surrounding the processor.
4. Loosely screw in the captive screws on the heat sink corners in a diagonal manner
as shown by the four circled numbers in Figure 30. Do not fully tighten one screw
before tightening another.
5. Gradually and equally tighten each captive screw in the same order until each is
firmly tightened.
®
Intel
Server System SR1630GP / SR1630HGP Service Guide
40.
3
2
4

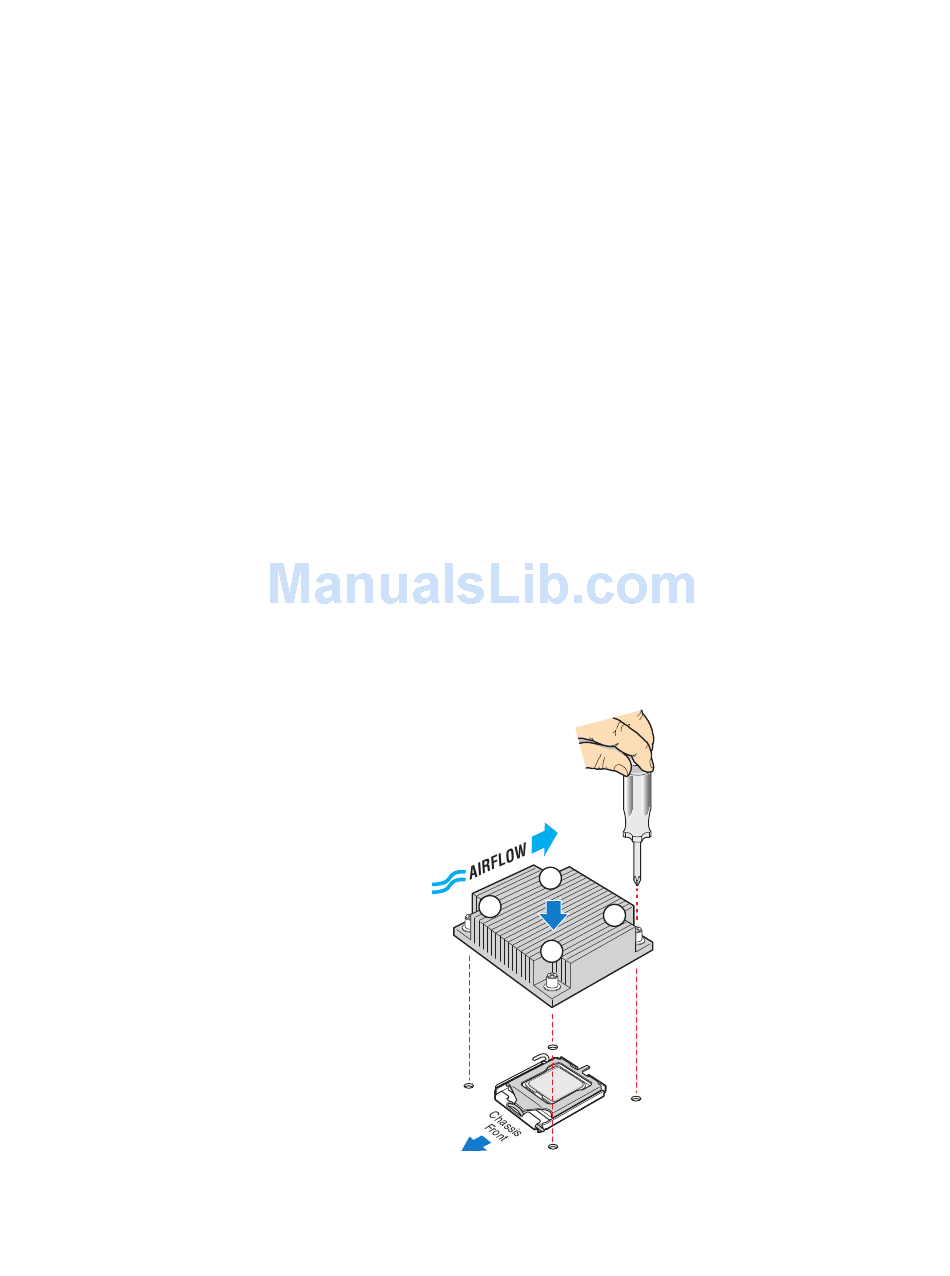

Figure 30. Installing the Heat Sink

"Installing the Heat
Sink".
1
AF001049
43
