Removing and Installing the Server Cover
Removing the Server System Cover
You must operate the server system with the server system cover in place to ensure proper
cooling. You must remove the cover to add or replace components inside of the server.
None of the internal components are hot-swappable. Before removing the server system
cover, power down the server and unplug all peripheral devices and the AC power cable.
Note: You may need a non-skid surface or a stop behind the server system to prevent the server
system from sliding on your work surface.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord.
4. SR1630GP: Remove the two screws at the front of the chassis. See letter "A" in
Figure 16.
5. SR1630GP: Loosen the screw at the rear of the chassis. See letter "B" in Figure 16.
6. SR1630GP: Push rearward on the blue grip point at the front of the server. Slide the
cover back until it stops and then lift the cover upward to remove it. See letter "C"
in Figure 16.
30
iii.
A

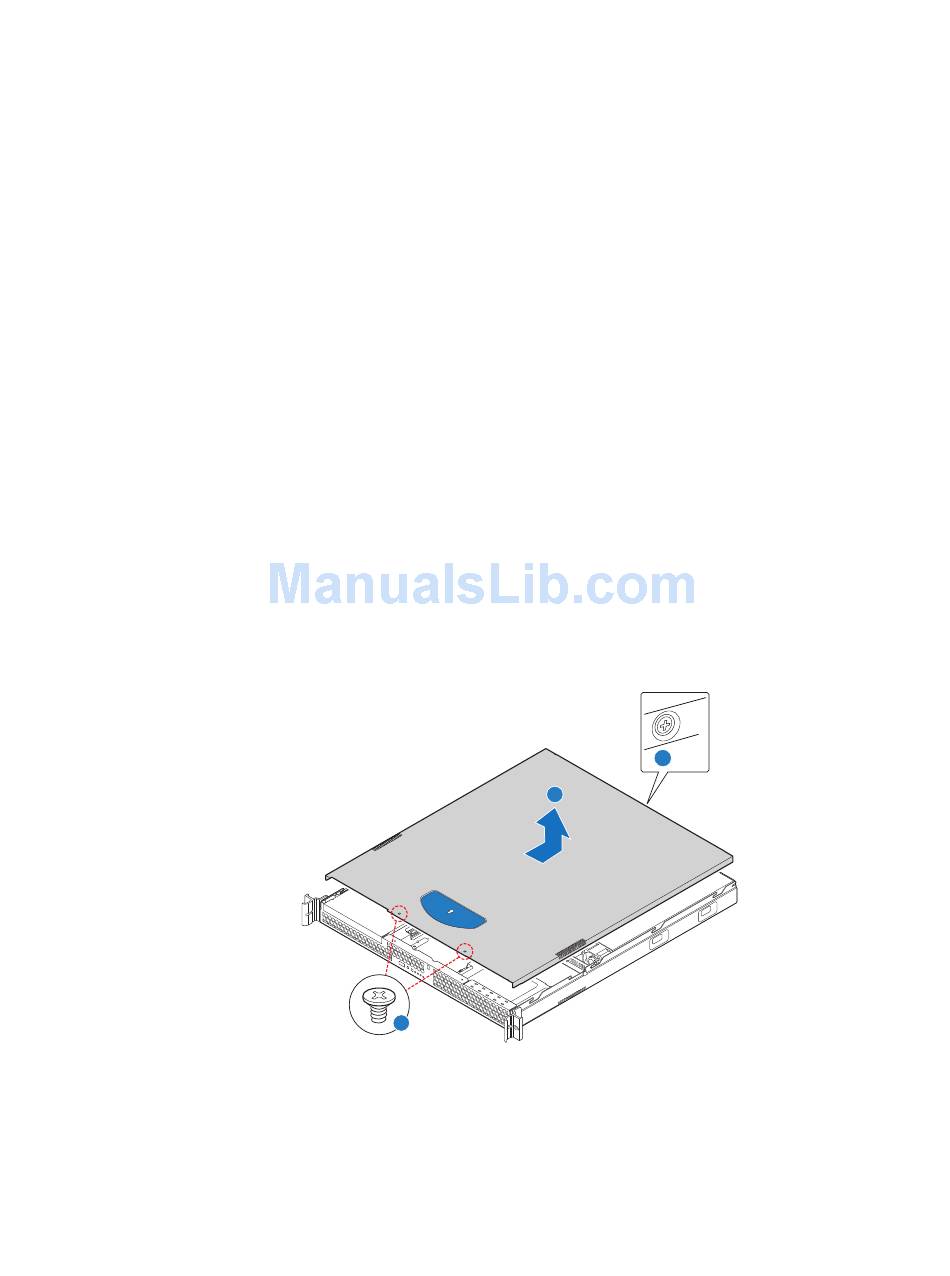

Figure 16. Removing the Server System Cover (SR1630GP)
C
®
Intel
Server System SR1630GP / SR1630HGP Service Guide
"Safety
B
AF000662
