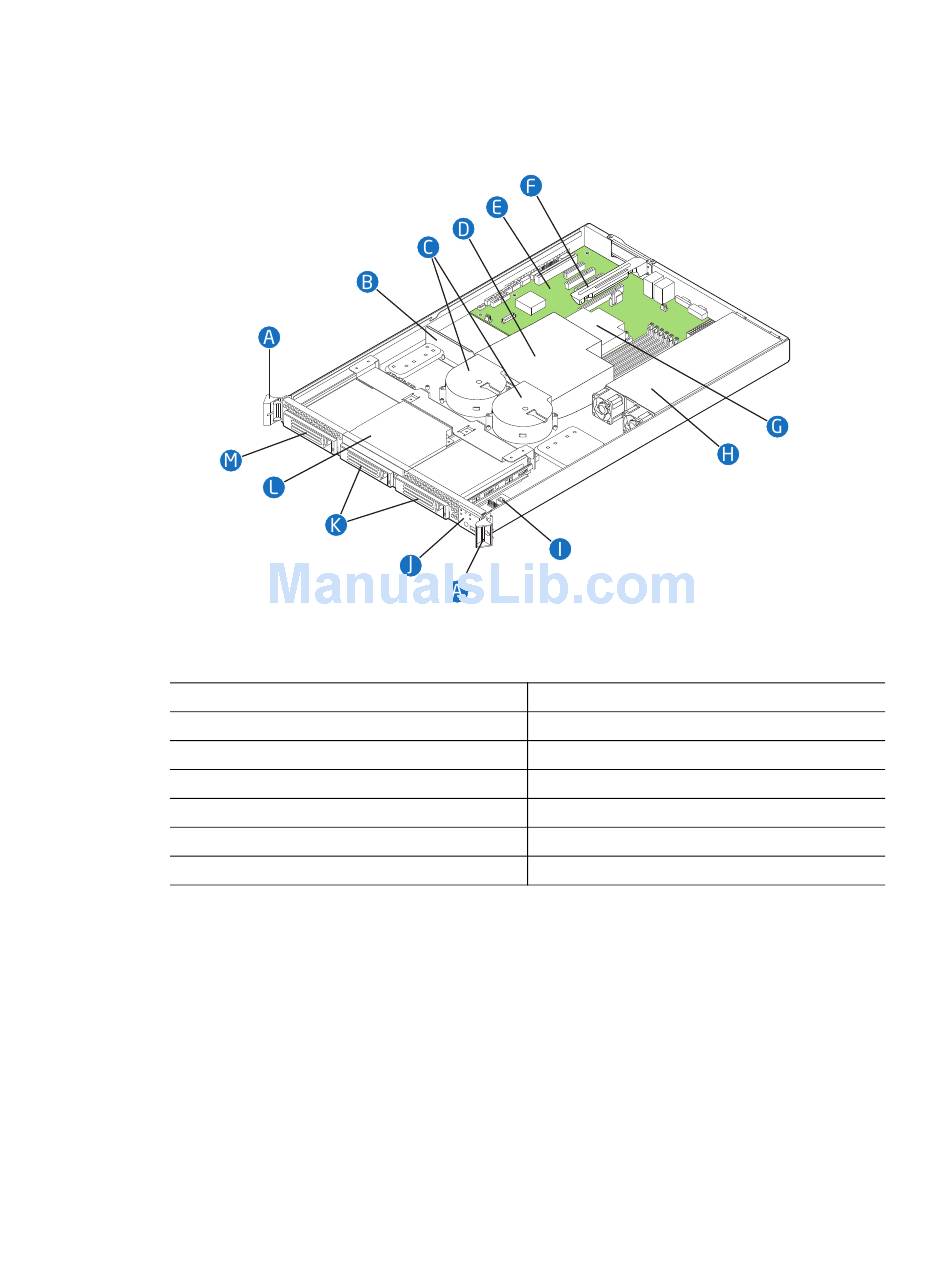

Internal Components (SR1630HGP)

A. Rack Handles (two)
B. PCI Air Baffle
C. System Blower Fans (two)
D. Processor Air Duct
E. Server Board
F. PCIe* Riser Assembly
G. Processor and Heat Sink
12

Figure 7. System Components (SR1630HGP)

®
Intel Server System SR1630GP / SR1630HGP Service Guide
H. Power Supply
I. Front Panel Board
J. Front Panel
K. Hard Drive Carriers (two)
L. Slimline Optical Drive Bay
M. Hard Drive Carrier (one)
AF003243
