7. Remove the light pipes from the front panel board by lifting straight up (see letters
"A" and "B" in Figure 68). You will use these in the replacement front panel board.

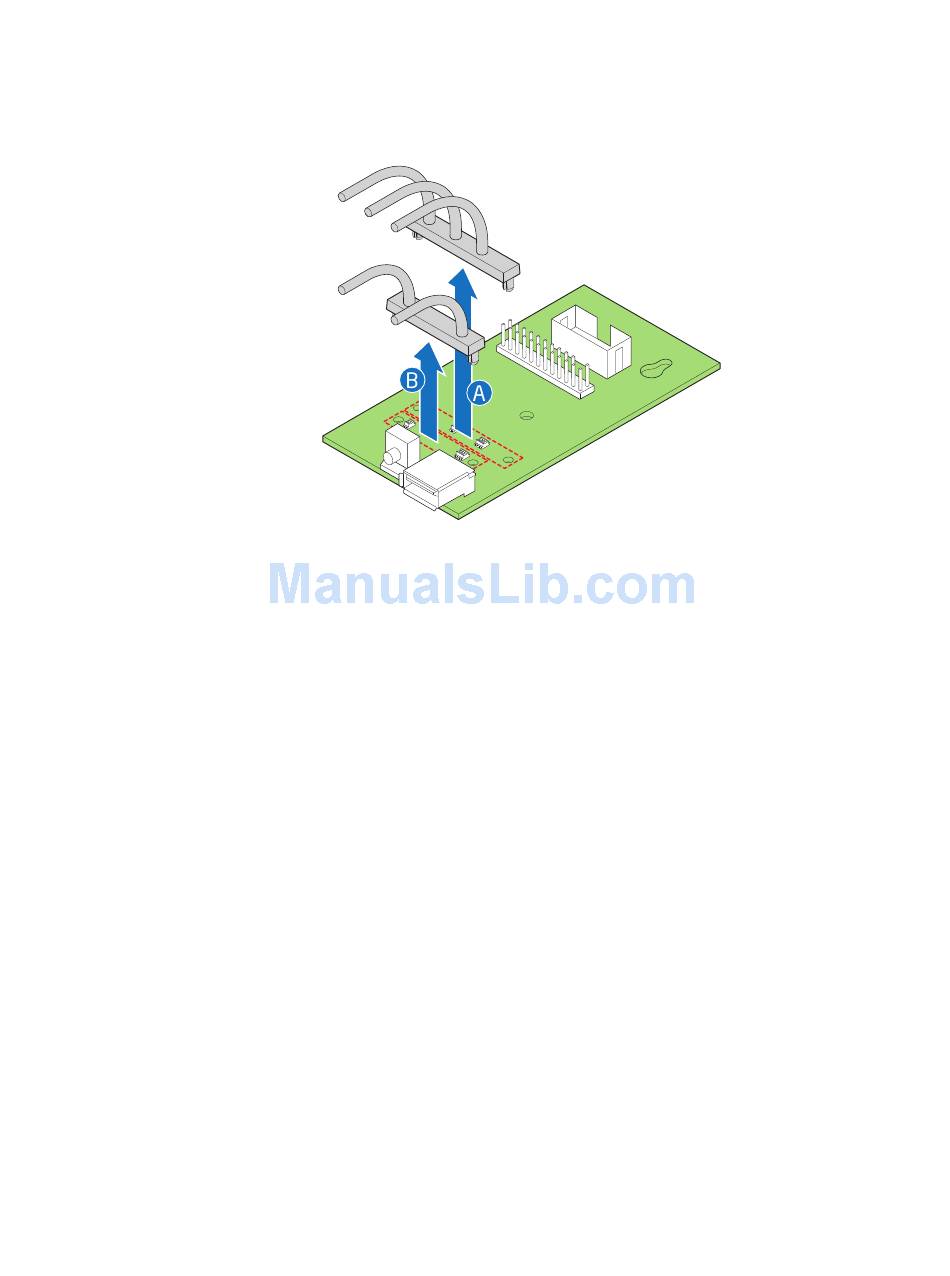

Figure 68. Removing Light Pipes from the Front Panel Board (SR1630HGP)

8. Insert the replacement front panel board into the server system over the standoff
(see letter "A" in Figure 69) and slide the front panel board forward until the board
clicks into place (see letter "B" in Figure 69).
9. Use the screw you removed in Step 5 to attach the front panel board to the system
(see letter "C" in Figure 69).
