Installing and Removing a Hot-Swap SATA Drive

(SR1630HGP)

You can install up to three hot swappable SATA drives. The HDD0 drive bay is at the left

side of the chassis; the HDD1 drive bay is in the middle of the chassis—underneath the

optional optical drive. The HDD2 drive bay is at the right side of the chassis. You do not

need to install the drives in order; you can install HDD1 before HDD0.

Cautions: If you install less than three drives or devices, the empty drive bays must be occupied by

carriers with baffles to maintain proper system cooling.

Note: The server system does not support all hard drives. See

page x

for an Internet link to a list of supported hardware.

1. If it is installed, remove the front bezel. For instructions, see

Bezel".

2. Locate the drive position you want to use. See

Intel

Server System SR1630GP / SR1630HGP Service Guide

"Server System References" on

"Removing the Front

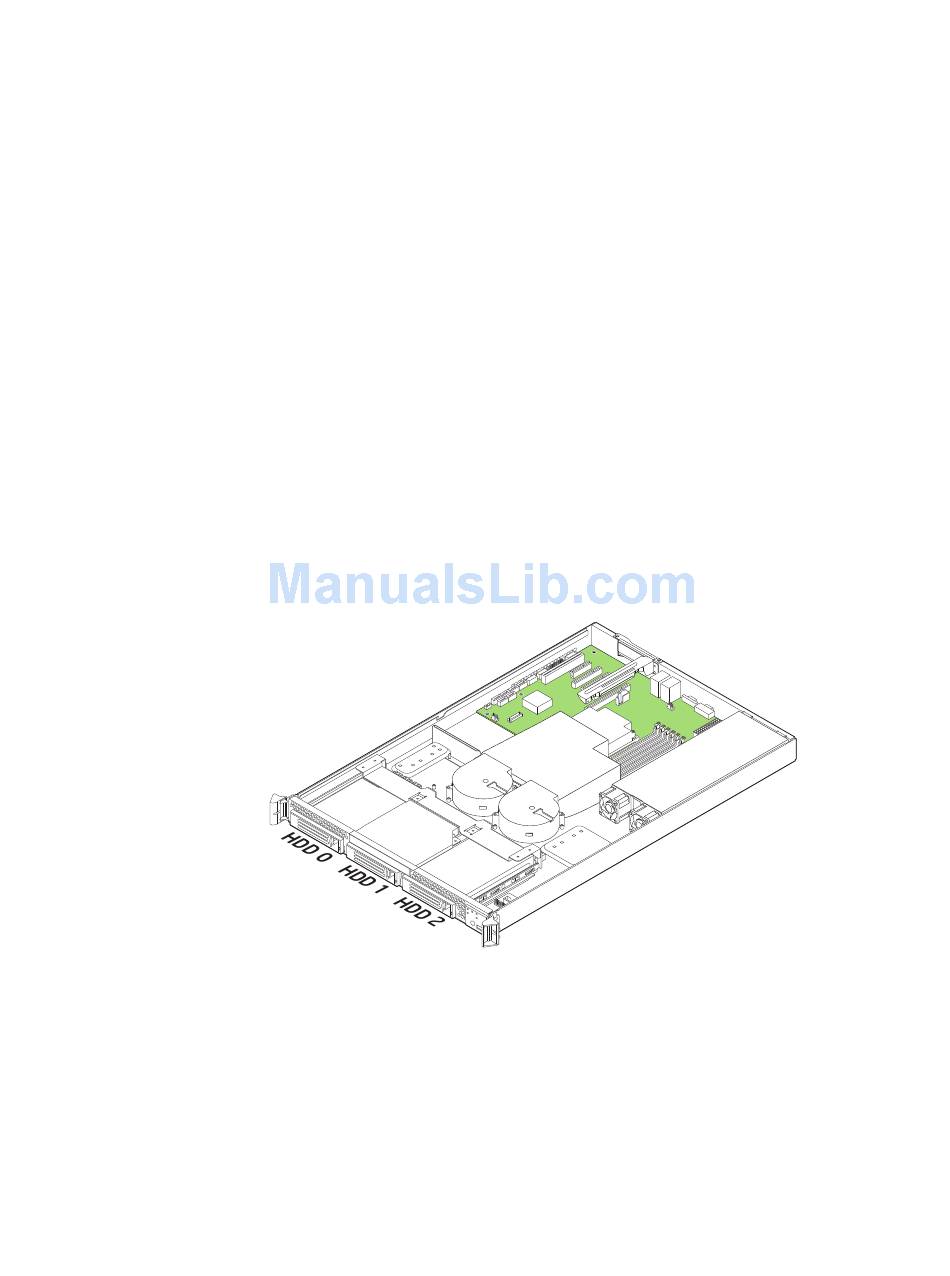

Figure

37.

AF003255
