Figure 36. Removing Drive Carrier From The Server System (Sr1630Gp) - Intel SR1630GP - Server System - 0 MB RAM Service Manual

4. Disconnect the power and data cables from the drive.
5. HDD1 location only: Slide the power cable from the cable clip located on the top of
the hard drive carrier.
6. Remove the screw that holds the hard drive bracket to the chassis. See letter "A" in
Figure 36. Save this screw. You will use it to reinstall the drive assembly later.
7. Lift the drive carrier from the chassis. See letter "B" in Figure 36.

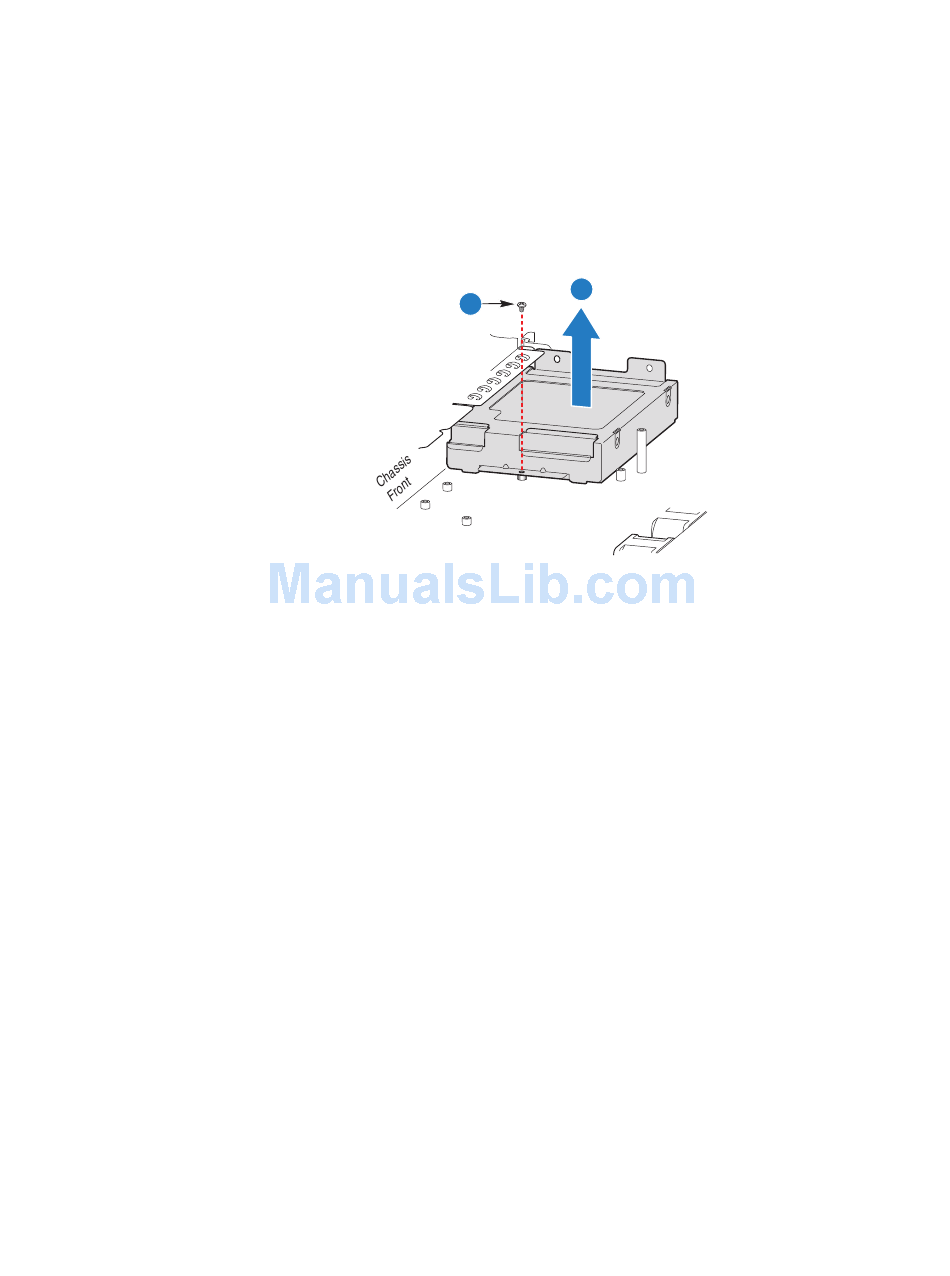

Figure 36. Removing Drive Carrier from the Server System (SR1630GP)

8. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive
from the carrier. Store the drive in an anti-static bag.
9. If you are installing a new drive, skip the rest of these steps and instead see
"Installing a Hard Disk Drive (SR1630GP)" on page
10. Insert the screws that held the drive in the carrier into the screw locations on the
carrier for future use.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
B
A
AF001050
44, beginning with step 8.
49
