Figure 58. Replacing The Cmos Battery - Intel SR1630GP - Server System - 0 MB RAM Service Manual

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Remove the server's cover and locate the battery. See
5. Pull back gently on the metal tab at the top of the battery.
6. Remove the battery from its socket.
7. Dispose of the battery according to local ordinance.
8. Remove the new lithium battery from its package, and, being careful to observe the
correct polarity, insert it in the battery socket.
9. Close the chassis.
10. Run the BIOS Setup utility to restore the configuration settings.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
iii.
30.

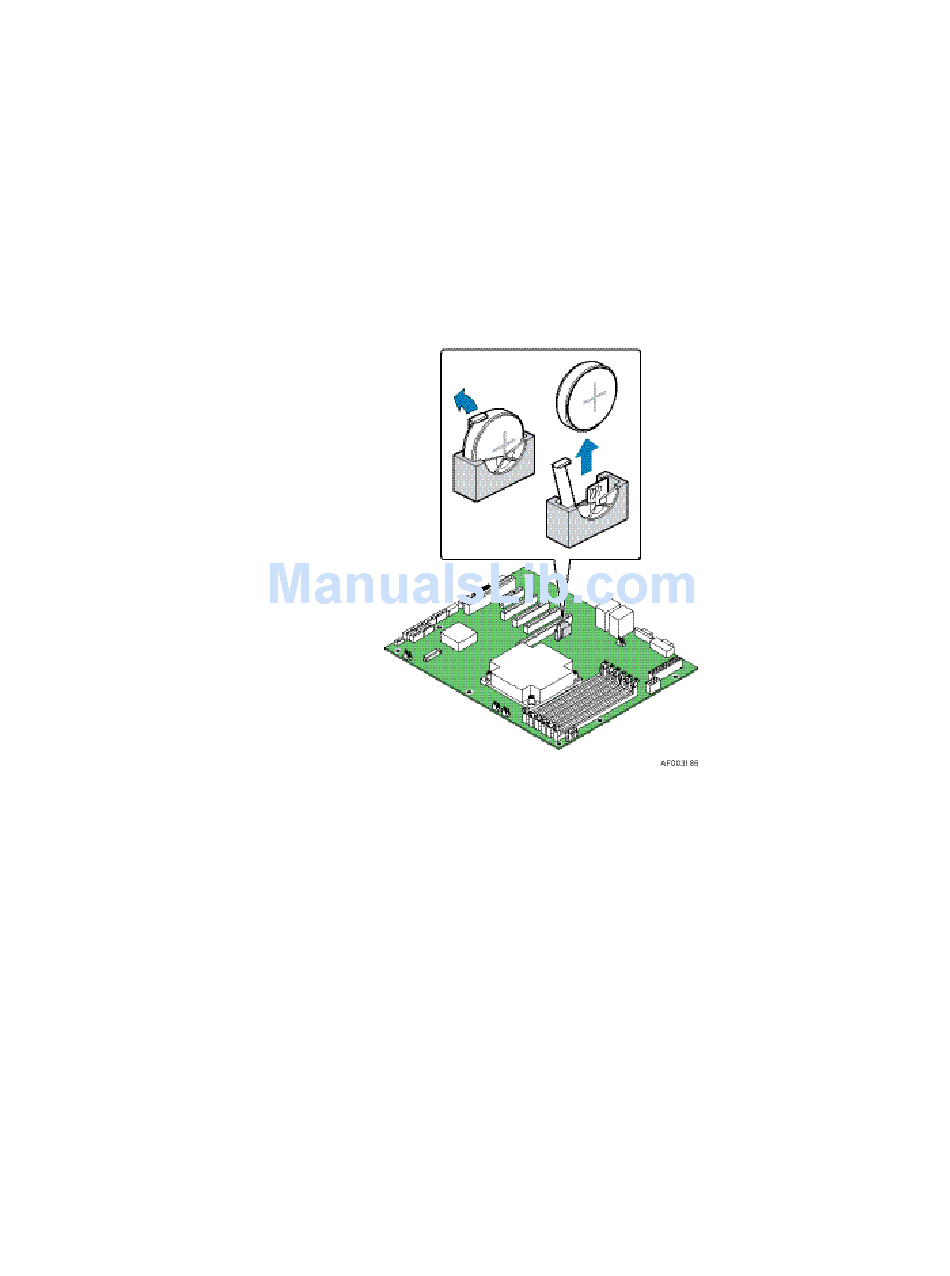

Figure 58. Replacing the CMOS Battery

"Safety
"Removing the Server
Figure 58.
73
