Figure 61. Installing Power Supply Module Into The Server System (Sr1630Gp) - Intel SR1630GP - Server System - 0 MB RAM Service Manual

8. Insert the replacement power supply at an angle into the server system, sliding the
power connector side in first to fit it through the cut-out area at the rear of the
system. See letter "A" in Figure 61.
9. Set the front of the power supply down pushing the power supply back so it fits
behind the foot at the bottom of the chassis. See letter "B" in Figure 61.
10. Insert the screw you removed in Step 5 to attach the power supply to the server
system. See letter "C" in Figure 61.

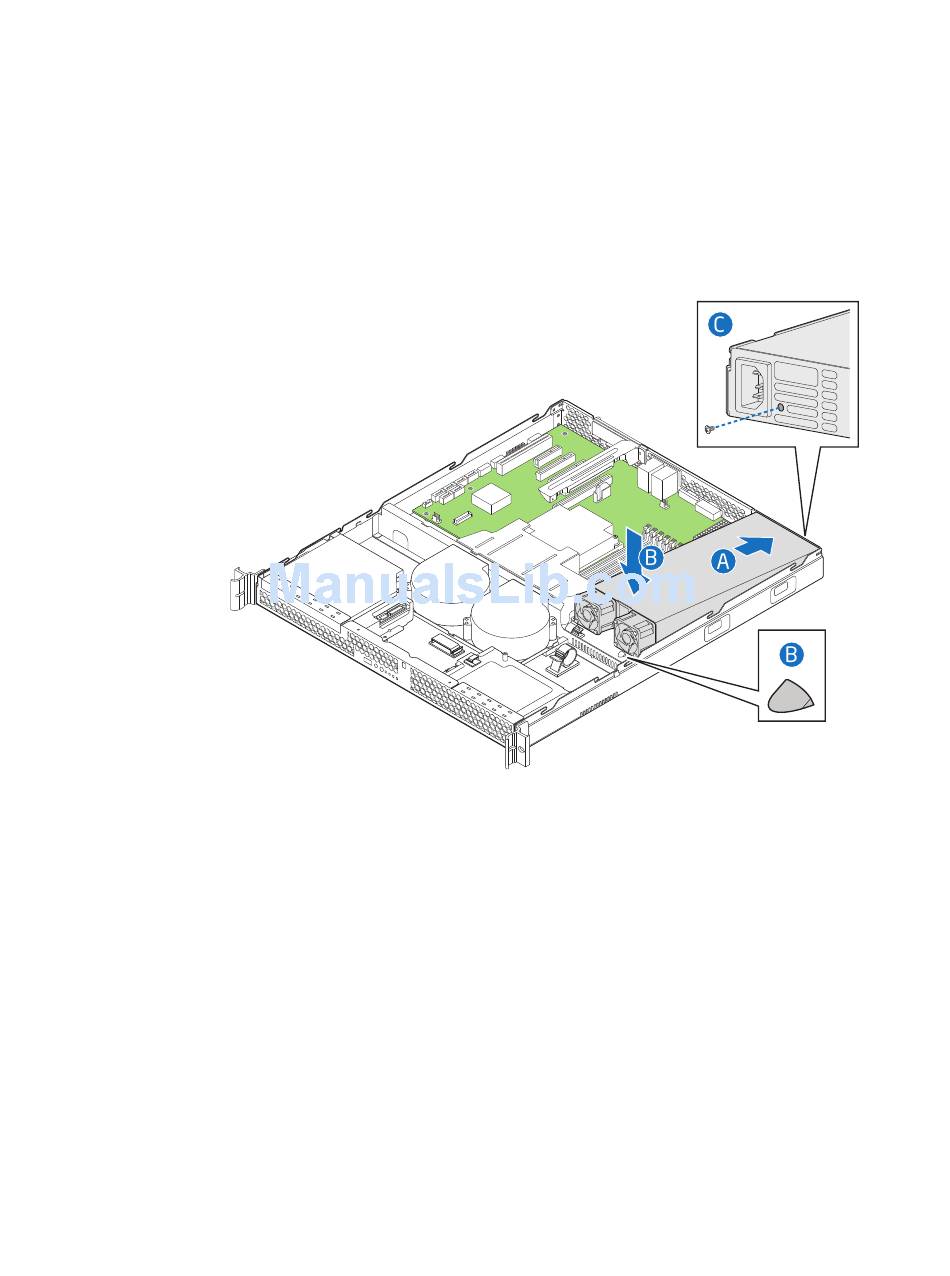

Figure 61. Installing Power Supply Module into the Server System
®
Intel Server System SR1630GP / SR1630HGP Service Guide
(SR1630GP)
