Removing A Slimline Optical Drive; Figure 43. Installing The Optical Drive Into The System - Intel SR1630GP - Server System - 0 MB RAM Service Manual

11. (Optional) Install the front bezel. For instructions, see
on page
12. Install the server system cover. For instructions, see
Cover".
13. Plug all peripheral devices and the AC power cable into the server.

Removing a Slimline Optical Drive

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. If it is installed, remove the bezel. For instructions, see
Bezel" on page
5. Disconnect the optical drive power and data cables. See letters "A" and "B" in
Figure
6. Remove the screw that holds the optical drive bracket to the server chassis. See
letter "C" in Figure 44. Save this screw. You will reinstall it later.
7. Slide the optical drive out through the front of the system. See letter "D" in
Figure 44.
56

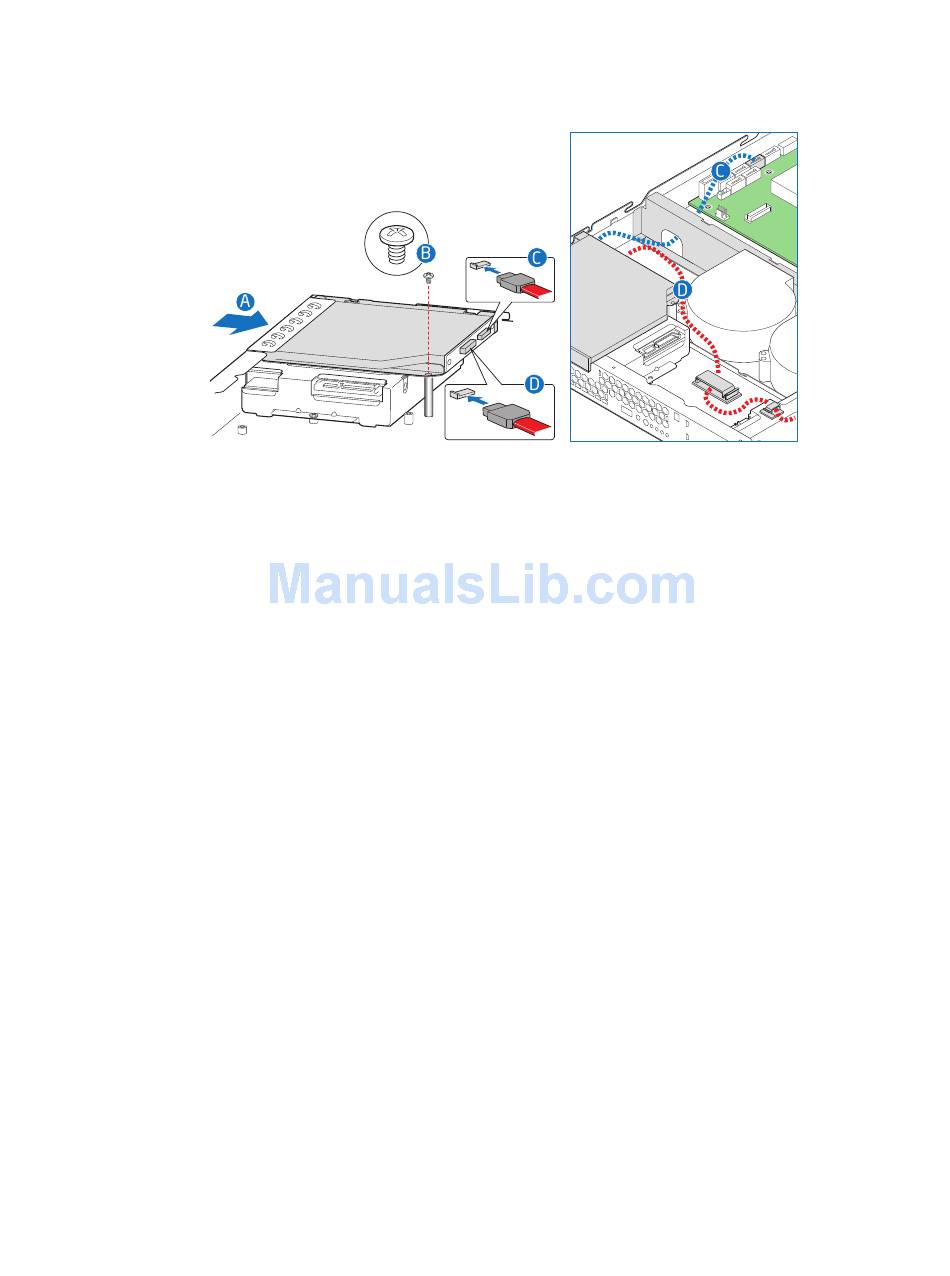

Figure 43. Installing the Optical Drive into the System

29.
iii.
30.
28.
44.
Intel
"Installing the Server System
®
Server System SR1630GP / SR1630HGP Service Guide
AF003257
"Installing the Front Bezel"
"Safety
"Removing the Server
"Removing the Front
