7. Orient the processor with the socket so the processor cutouts match the socket
notches. See letter "A" in Figure 28.
8. Set the processor into place as shown by letter "B" in Figure 28.
Note: Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
9. Remove the protective socket cover. See
Note: Retain the protective socket cover for use when removing a processor that will not be
replaced.
42

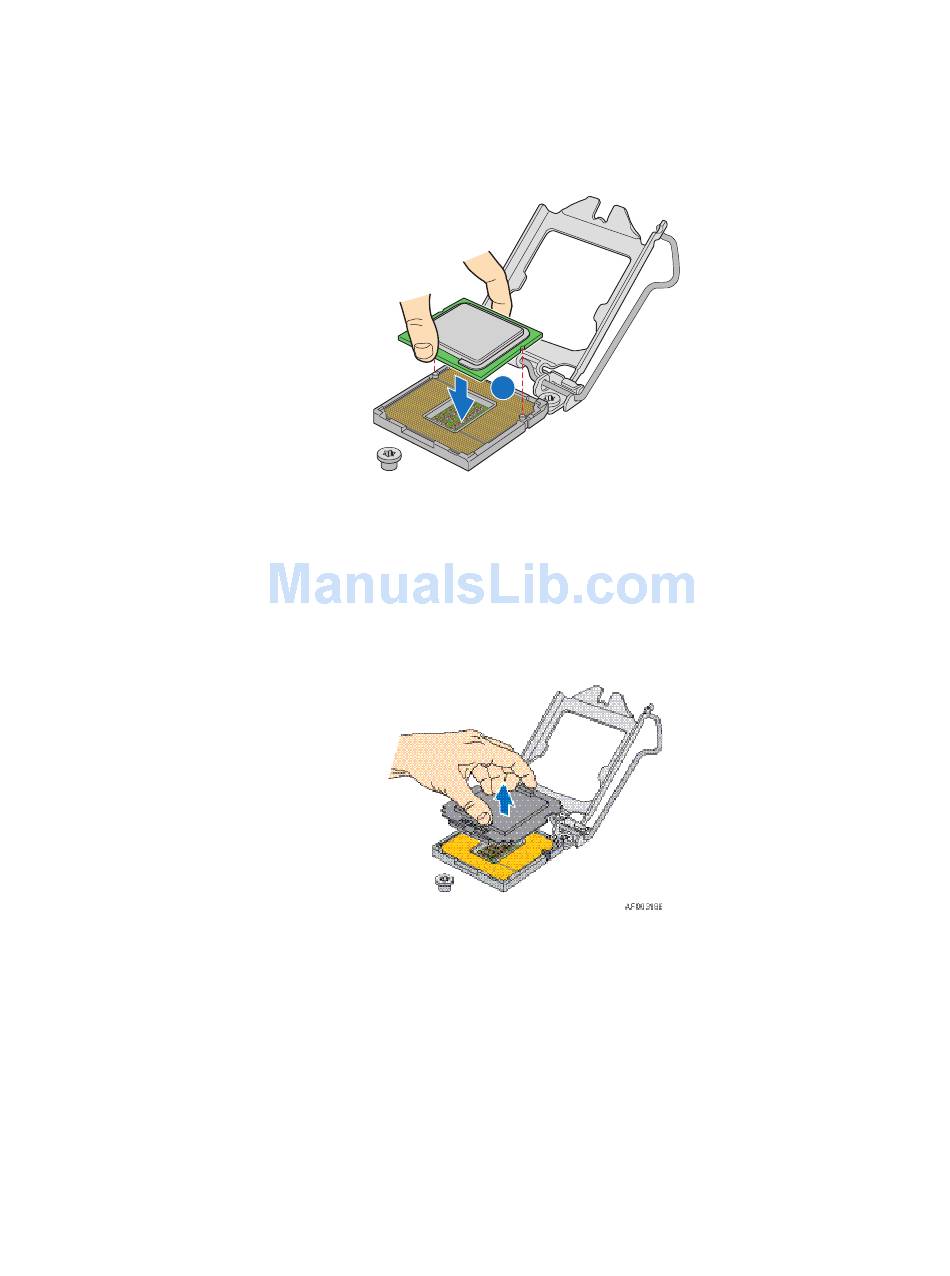

Figure 28. Installing the Processor
Figure 29. Removing the Protective Socket Cover
®
Intel
A
AF003190
Figure
29.
Server System SR1630GP / SR1630HGP Service Guide
