4. Connect any cables to add-in cards that require them. See your add-in card
documentation for information and add-in card requirements.
5. Install the server system cover. For instructions, see
Cover".

Installing or Replacing a PCIe* Riser Card

Caution: The PCIe* Riser card is NOT hot-swappable. Before removing or replacing the PCIe*
Riser card, you must first take the server out of service, turn off all peripheral devices
connected to the system, turn off the system by pressing the power button, and unplug the
AC power cord from the system or wall outlet.
You have the option to install one of two PCIe* Riser cards into your server system:
•
A low-profile PCI Express* riser with one PCI Express x16 slot.
Note: To eliminate the possibility of installing the replacement connector on the wrong side of
the PCIe* Riser assembly, replace one connector at a time.

Removing a PCIe* Riser Card

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Disconnect any cables attached to any add-in cards.
5. Remove the PCIe* Riser assembly. For instructions, see
Riser Assembly" on page
6. Remove any add-in cards from the PCIe* Riser connector. For instructions, see
"Removing a PCI Add-in Card" on page
7. Remove the two screws that attach the riser card to the riser assembly. See
Figure 52. Save these screws to be used later.
®
Intel Server System SR1630GP / SR1630HGP Service Guide
iii.
30.
61.

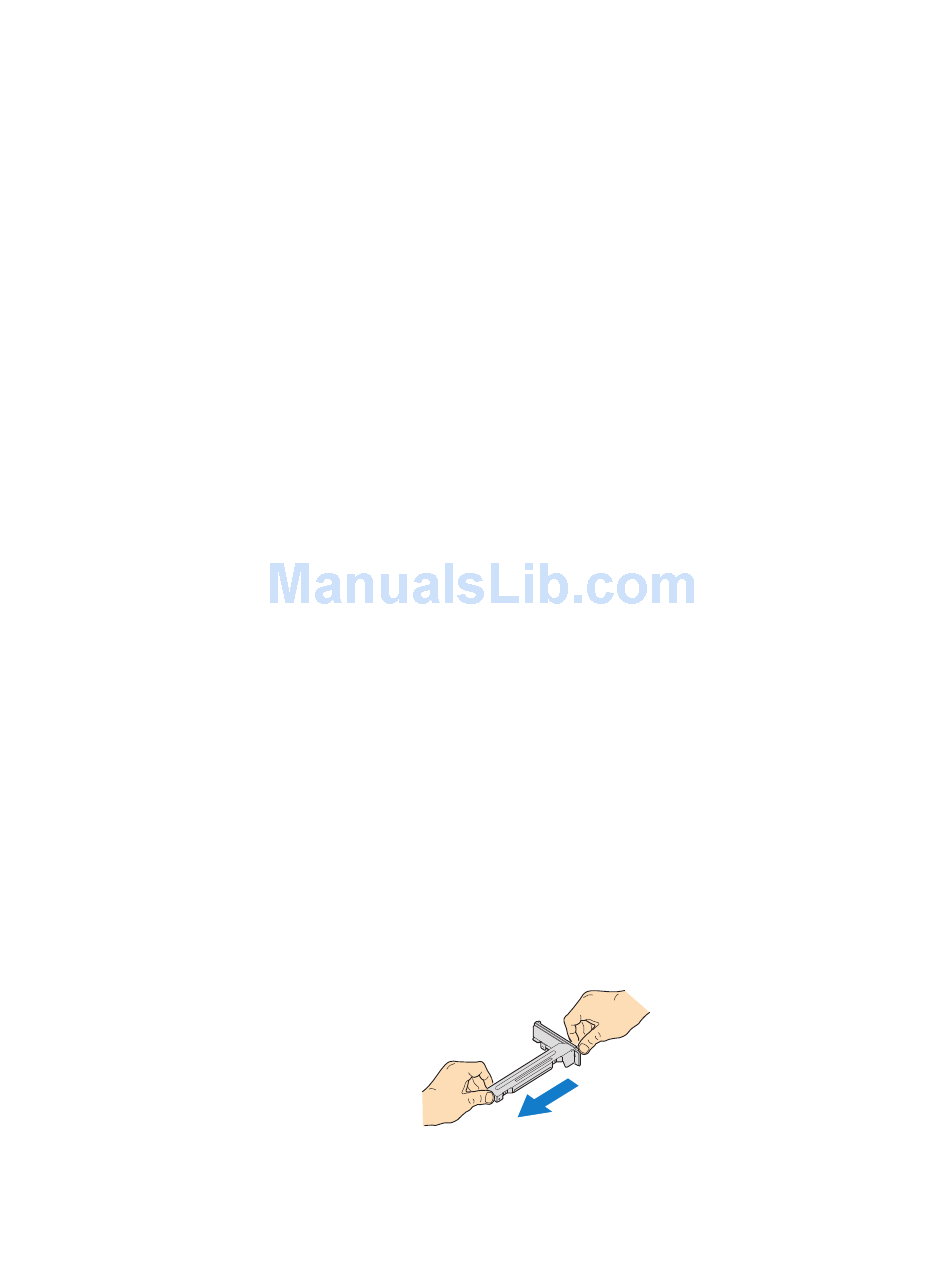

Figure 52. Removing Riser Card from Riser Assembly

"Installing the Server System
"Removing the Server
"Removing the PCIe*
66.
AF003288
"Safety
63
