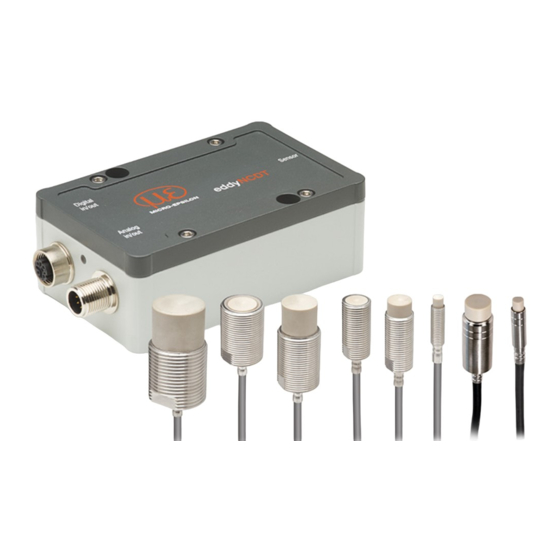

MICRO-EPSILON eddyNCDT 3060 Quick Manual
Hide thumbs Also See for eddyNCDT 3060:

Advertisement

Quick Links

Quick Manual
eddyNCDT
3060
eddyNCDT
3061
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eddyNCDT 3060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MICRO-EPSILON eddyNCDT 3060

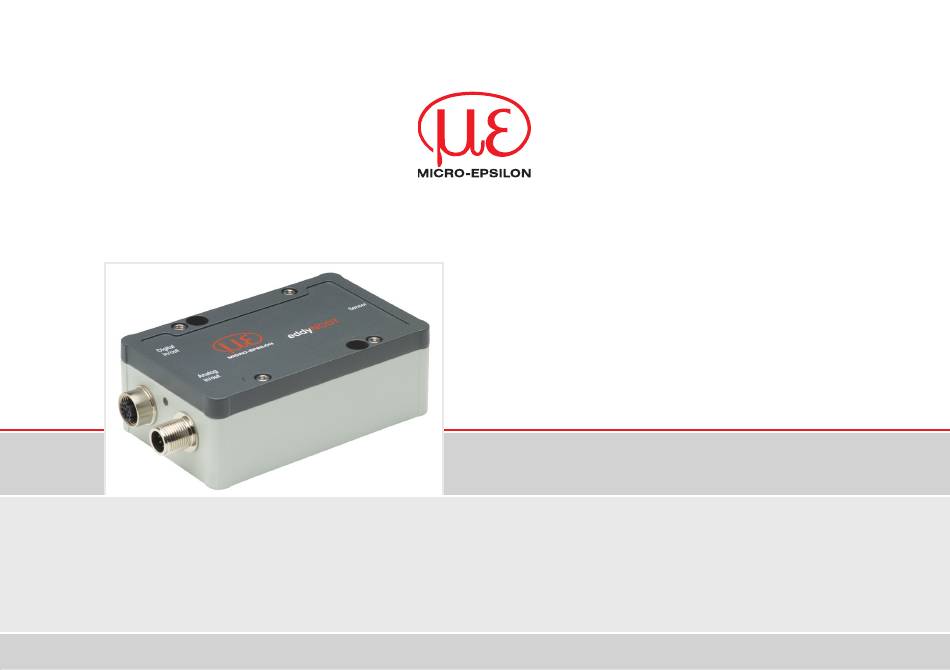

  • Page 1 Quick Manual eddyNCDT 3060 eddyNCDT 3061...
  • Page 2 MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Strasse 15 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 e-mail info@micro-epsilon.de www.micro-epsilon.com...
  • Page 3: Symbols Used

    General General Symbols used The following symbols are used in this document: Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates a situation that may result in property damage if not avoided. Indicates a user action. Indicates a tip for users.
  • Page 4: Intended Use

    General Intended Use - The measuring system is designed for use in an industrial environment. It is used for ƒ measuring displacement, distance movement and thickness, ƒ measuring the position of parts or machine components. - The measuring system must only be operated within the limits specified in the technical data. The measuring system must be used in such a way that no persons are endangered or machines and other mate- rial goods are damaged in the event of malfunction or total failure of the controller..
  • Page 5: Setup, Connection Options

    General Setup, Connection Options Pin Assignment Supply, Analog Output Power supply and signal output are provided via plug con- PIN Wire color Signal nectors on the front of the controller. PCx/8-M12 brown +24 VDC supply, polarity protection Ethernet blue GND supply white (load min.
  • Page 6: Measurement Setup, Operating Multiple Sensors

    General Measurement Setup, Operating Multiple Sensors Sensors of the eddyNCDT 3060 series cannot be synchronized. Observe the following installation information regard- ing the minimum distance between two sensors: - 3x sensor diameter distance between two unshielded sensors with equal carrier frequency (e. g. low frequency) - 1.5x sensor diameter distance between two shielded sensors with equal carrier frequency (e.
  • Page 7: Led Controller, Led

    General LED Controller, LED Glossary, Analog Output Start of measuring range. Minimum distance between sensor front and measuring, sensor State specific Midrange End of measuring range (Start of measuring range + measuring range). Maximum distance Ethernet between sensor front and measuring object. Measuring range LED State green orange red...
  • Page 8: Installation And Assembly

    Installation and Assembly Installation and Assembly Shielded sensors - Type designation: ES-Sx No sharp or heavy objects should be allowed to affect - Construction: The sensor en- the cable sheath of the sensor cable, the supply cable closed up to its front face with and the output cable.
  • Page 9: Standard Mounting

    Micro-Epsilon. Sensors with a thread Insert the sensor through the hole in the sensor holder.
  • Page 10: Flush Mounting

    Linearize the measuring system, if possible, when respond to factory calibration. it is exactly arranged (in the same way as it will be Micro-Epsilon recommends to arranged later during the measurement process). carry out at least a 3-point field linearization.
  • Page 11: Target Size

    Check the plugged connections for firm seating. A successful calibration is a prerequisite to minimize linearity errors. In order to achieve an optimal result, Micro-Epsilon recommends a linearity calibration on the correspond- ing measuring object. A change of the measuring object size has significant effects on the quality of the measure- ment results.
  • Page 12: Operation Using Ethernet

    Installation and Assembly Operation Using Ethernet Controller The controller generates dynamic web pages, that con- 127 (5.00) tain the current settings of the controller and the periph- 105 (4.13) erals. The operation is only possible as long as there is an Ethernet connection to the controller.
  • Page 13 Operation Using Ethernet Direct connection to PC Network PC with static IP PC with DHCP Controller with dynamic IP , PC with DHCP Connect the controller to a PC via a direct Ethernet connection Connect the controller to a switch. (LAN).
  • Page 14: Access Via Web Interface

    Operation Using Ethernet Access via Web Interface Operating Menu, Setting Controller Parameters You can program eddyNCDT 306x using two different methods simultaneously: - using the web browser via the sensor web interface - using the ASCII command set and the terminal pro- gram via Ethernet (Telnet).
  • Page 15: Scaling Measuring Range

    Operation Using Ethernet Scaling Measuring Range Menu Settings > Characteristics > Scale measuring range. There are two ways to scale the measuring range of the eddyNCDT 306x: Change in the professional user level - by using the mouse function directly in the graphic - using the fields Current measuring range be- Enter the password into the Password box, and click gin and Current measuring range end.
  • Page 16: Point Linearization

    Operation Using Ethernet 3-Point Linearization are specified by a comparison standard. You can freely choose the linearization points within the sensor measu- Menu Settings > Characteristics > Carry ring range. out field linearization. Place the 50 % 100 % If the sensor or the measurement object is changed by Sensor measurement ob- Target...
  • Page 17: Storage Of Multiple Characteristic Curves

    Operation Using Ethernet Storage of Multiple Characteristic Curves Here you can export all controller settings in a file or reimport them from a file. Menu Settings > Characteristics > Se- Controller Hardware filter, temperature settings, lect Characteristic. settings outputs The DT3060 can save one field calibration. Ethernet IP address, subnet mask The DT3061 can save up to four different field calibra-...
  • Page 18: Scaling Displacement Analog Output

    Operation Using Ethernet Scaling Displacement Analog Output 100 % Menu Settings > Outputs > Displacement Analog Default characteristic analog. output Max. output range: 4 mA ... 20 mA or 0 V ... 10 V Measuring Output amplification D I : 16 mA or D U : 10 V;...
  • Page 19: Limit Output

    Operation Using Ethernet Limit Output Threshold A (A) Menu Settings > Outputs > Limit val- ue 1/2. The eddyNCDT 3061 can check the measurement result to adjustable limits. This means that threshold values Threshold B (B) can be monitored, impermissible tolerances detected and sorting criteria realized.
  • Page 20 Operation Using Ethernet Hysteresis Thres- hold A Thres- hold B t < Hold time Timing limit monitoring, event (E) < hold time, logic: positive Hysteresis Thres- hold A Thres- hold B Event Hold time Timing limit monitoring, event (E) > hold time, logic: negative Duration of limit infringement...
  • Page 21: Positioning The Target

    Displacement Measurements Displacement Measurements Positioning the Target Position the target within the sensor measuring Switch to the Measuring > Measuring data range. display menu. Click the Start button. The value for the start of the measuring range (SMR) depends on the sensor. This value can be found in the technical data of the sensor.
  • Page 22: Service & Repair

    Within this period, defective parts, except for wear- GmbH & Co. KG ing parts, will be repaired or replaced free of charge, if the device is returned to MICRO-EPSILON with shipping Königbacher Straße 15 94496 Ortenburg / Deutschland costs prepaid. Any damage that is caused by improper handling, the use of force or by repairs or modifica- Tel.
  • Page 23: Model Designation Sensor

    Liability for Material Defects Model Designation Sensor A = mini Measuring range Eddy S = male connector B = normal Sensor 1 / 2 / 3 / 4 mm C = integrated cable Cable length [m] C = large Option S = shielded C = cylindric A = axial...
  • Page 24 X9691385-A021098MSC MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Str. 15 · 94496 Ortenburg / Germany MICRO-EPSILON MESSTECHNIK Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 info@micro-epsilon.de · www.micro-epsilon.de *X9691385-A01*...
