Installation and Assembly

4.
4.1
No sharp-edged or heavy objects should be allowed to affect the sensor cable sheath.
i
4.2
The sensors may be mounted free-standing or flush.
When assembling, make sure that the polished sensor surface is not scratched.
4.2.1
Do not use metal grub screws!
> Danger of damaging the sensor
capaNCDT 61xx/IP
Installation and Assembly

Precautionary Measures

Protect the cable against pressure loads in pressurized rooms.
Avoid folding the cables in any case.
Check the connections for tight fit.
A damaged cable cannot be repaired.

Sensor

Radial Point Clamping, Circumferential Clamping, Series CSE Sensors

This simple type of fixture is only recommended for a
force and vibration-free installation position. The grub
screw must be made of plastic so that it cannot dam-
age or deform the sensor housing.

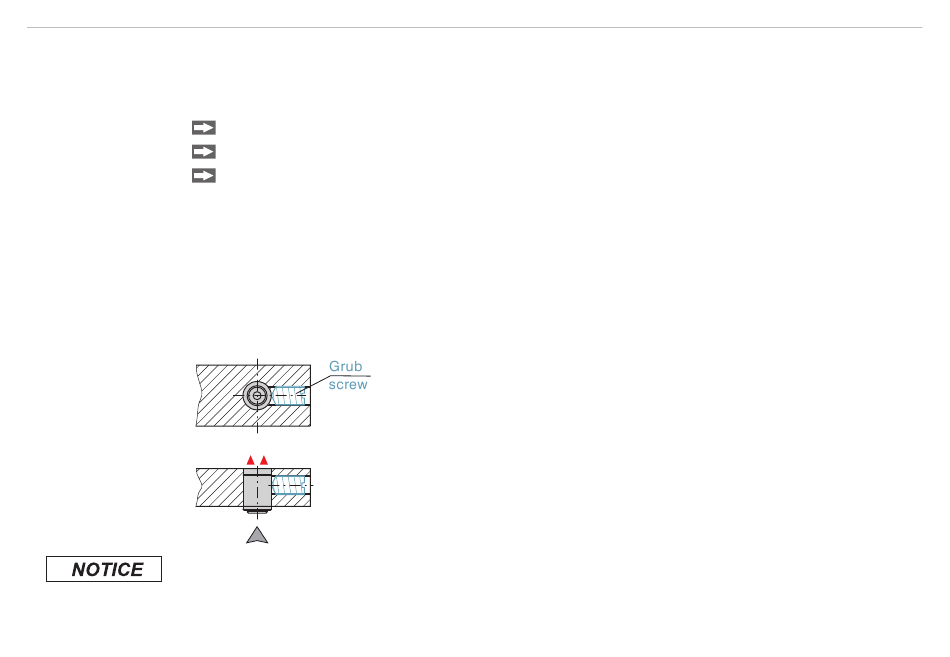

Fig. 7 Radial point clamping with grub screw
