Installation and Assembly

4.
4.1
No sharp-edged or heavy objects may come into contact with the sensor cable sheath.
In pressurised rooms the cable must be protected against pressure loads.
The minimum bending radius is 20 mm (.79 inch). Kinks must be avoided at all cost.
The connections must be checked for tight fit.
i
4.2
i
Legend
mm (inches)

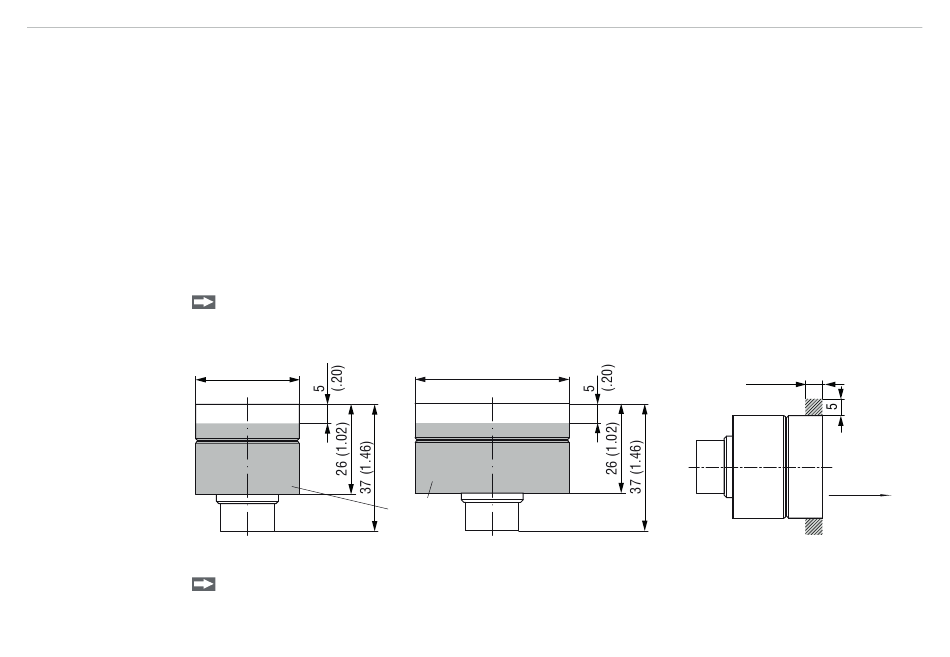

Fig. 5 Sensor dimensions
combiSENSOR 64x0
Installation and Assembly

Precautionary Measures

A damaged cable cannot be repaired.

Sensor

When assembling, make sure that the polished sensor surface is not scratched.
The target must not touch the sensor surface. Comply with the working distance.
ø 30 (1.18)
Mounting
KSH5
Make sure when assembling the sensor that there are no metallic conductive objects within the gray
marked area, see Fig. 6. Else the linearity may be changed of the eddy current sensor by up to about 1
% of measuring range.
ø 45 (1.77)
KSH10
area
5 (0.20)
Measuring
direction
Fig. 6 Free space with no metallic
conductive objects
Page 17
