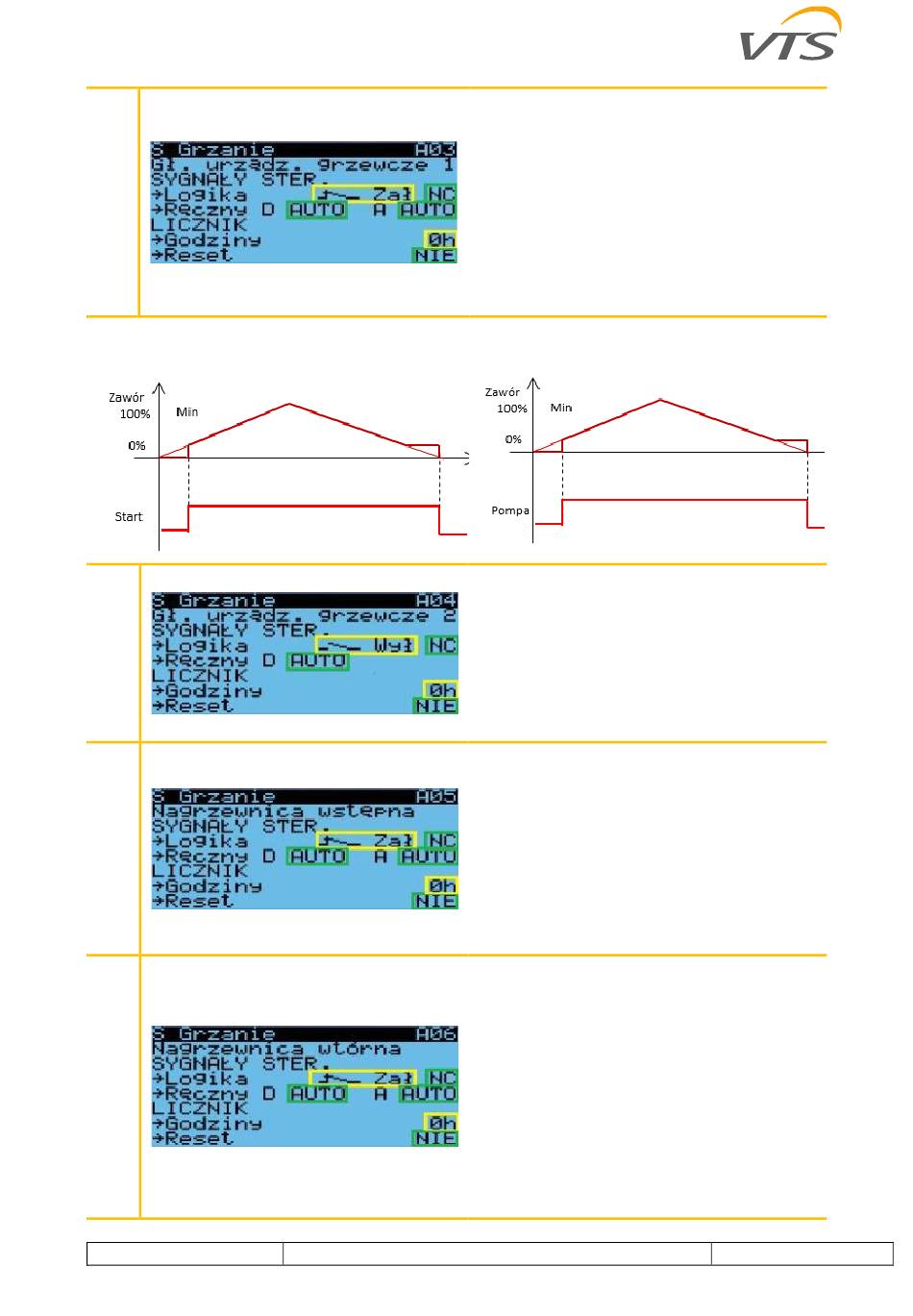

Control - water heater
•
•
•
•
•
•
•
•
•
•
•
•
•
•
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
"Logic" - type of main logic (NO/NC) used in the
first stage of the heater
"Manual D" - manual assignment of 0/1 value to
the digital output responsible for enabling the
operation of the first stage of the main heater
"Manual A" - manual assignment of 0-100%
values to the analogue output responsible for the
control level of the first stage of the main heater
"Hours" - operating time counter of the first stage
of the main heater
"Reset" - resetting the operating time counter of
the first stage of the main heater
"Logic" - type of main logic (NO/NC) used in the
second stage of the heater
"Manual D" - manual assignment of 0/1 value to
the digital output responsible for enabling the
operation of the second stage of the main heater
"Hours" - operating time counter of the second
stage of the main heater
"Reset" - resetting the operating time counter of
the second stage of the main heater
"Logic" - the type of logic used in the preheater
(NO/NC)
"Manual D" - manual assignment of a value of
0/1 to the digital output responsible for
authorising the operation of the pre-heater
"Manual A" - manual assignment of 0-100%
values to the analogue output responsible for the
pre-heater control level
"Hours" - preheater operating time counter
"Reset" - resetting the pre-heater operating time
counter
"Logic" - type of logic used in the secondary
heater (NO/NC)
"Manual D" - manual assignment of 0/1 value to
the digital output responsible for permitting the
operation of the secondary heater
"Manual A" - manual assignment of 0-100%
values to the analogue output responsible for the
control level of the secondary heater
"Hours" - secondary heater operating time
counter
"Reset" - resetting the operating time counter of
the secondary heater
