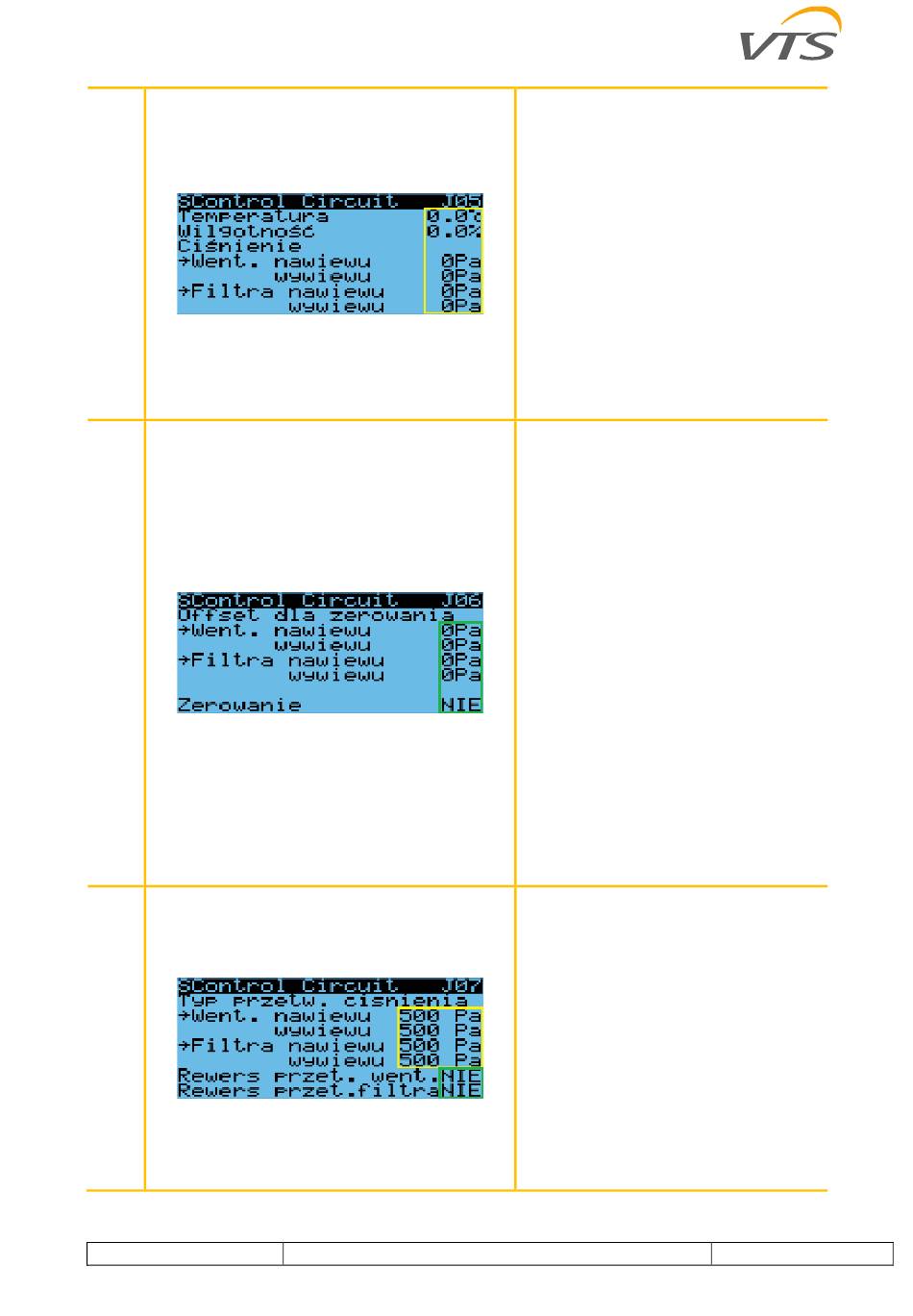

J05
J06
J07
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
•
"Temperature" -
temperature before recovery (sensor B2)
of the Control Circuit module
•
"Humidity" - current value of exhaust
humidity before recovery (sensor B2) of
the Control Circuit module
•
"Supply fan" - current value of the
supply fan pressure of the Control Circuit
transmitter
•
"Exhaust fan" - current pressure value of
the exhaust fans of the Control Circuit
transmitter
•
"Inlet filter" - current value of the control
pressure of the inlet filters of the Control
Circuit transmitter
•
"Exhaust filter" - current value of the
control pressure of the exhaust filters of
the Control Circuit transmitter
•
"Supply fan" - correction (offset) of the
supply fan pressure to be taken into
account after the resetting process of the
Control Circuit module transducers
•
"Exhaust fan" - pressure correction of
the exhaust fans to be taken into account
in the resetting process of the Control
Circuit module transducers
•
"Supply air filter" - correction of the
supply air filter control pressure, which
will be taken into account in the resetting
process of the Control Circuit module
transducers
•
"Extract filter" - correction of the supply
filter control pressure to be taken into
account in the resetting process of the
Control Circuit module transducers
•
"Zeroing" - confirming the start of the
zeroing (calibration) operation of the
Control Circuit module's
transducers (correction
automatically selected based on the
transducers' current readings - during the
calibration process,
measurement hoses
disconnected)
•
"Supply fan" - type of supply fan
pressure transducer used in the Control
Circuit module (500Pa and 6000Pa
present)
•
"Exhaust fan" - type of exhaust fan
pressure transducer used Control Circuit
module
•
"Supply air filter" - type of supply air
filter control pressure transducer used
Control Circuit module
•
"Exhaust filter" - type of exhaust filter
control pressure transducer used Control
Circuit module
•
"Reverse of fan transducers" - Polarity
reversal - swapping the negative (-) with
positive (+) channels
measurement hoses of the supply and
current exhaust
pressure
values are
the module's
must be
for the
