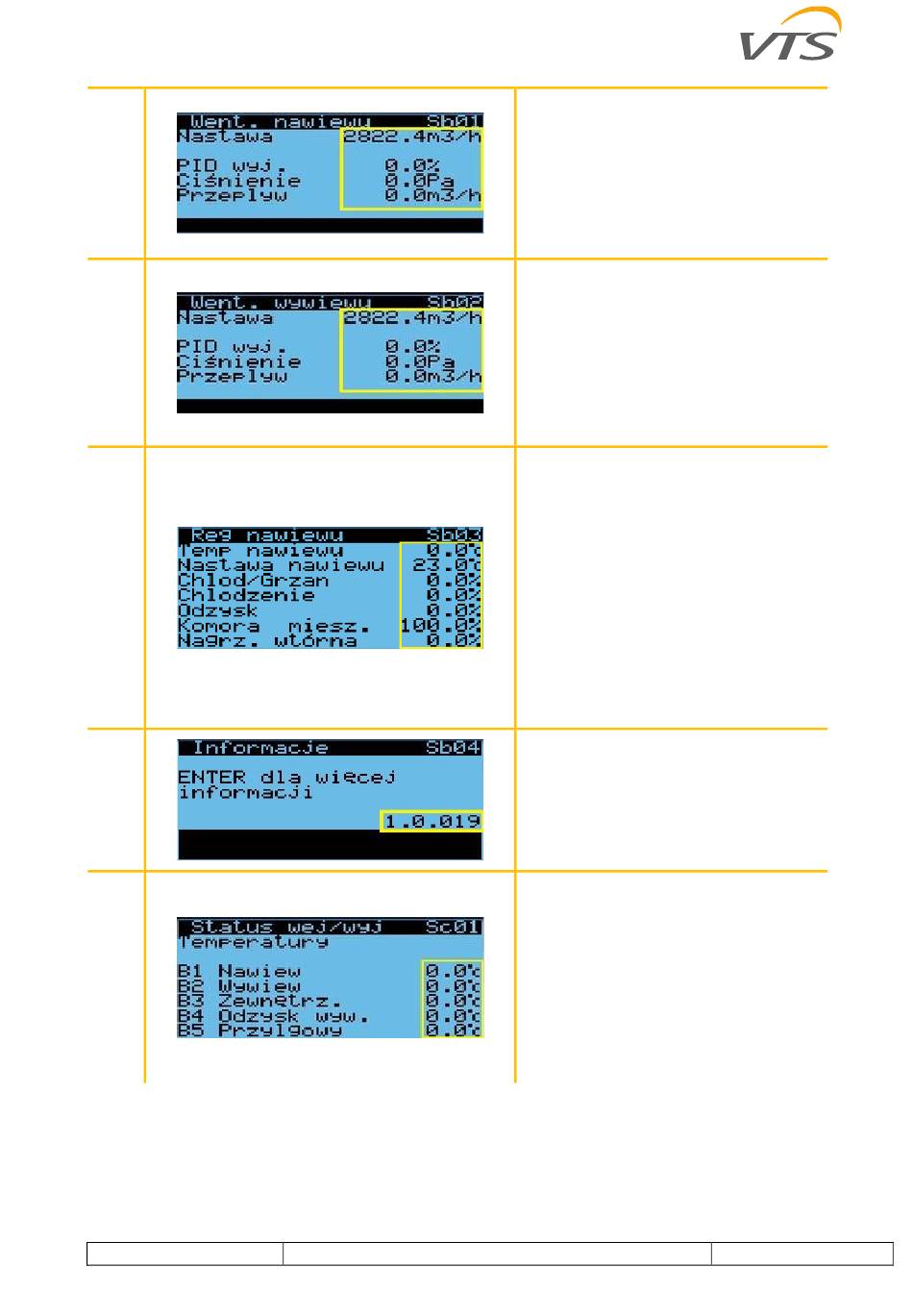

Sb01
Sb02
Sb03
Sb04
Sc01
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
•
"Setpoint" - supply fan operation setting
•
"PID output" - current control of the PID
controller of the supply fans
•
"Pressure" - current pressure measured
for the fans in the supply duct
•
"Flow" - air flow in the supply duct,
corresponding to the current pressure
•
"Setpoint" - exhaust fan operation
setting
•
"PID output" - current control of the PID
controller of the exhaust fans
•
"Pressure" - current pressure measured
for the fans in the exhaust duct
•
"Flow" - air flow in the exhaust duct,
corresponding to the current pressure
•
"Supply air temperature" - current
supply air temperature (sensor B1)
•
"Supply air setting"
temperature setting
•
"Cooling / heating" - current control of
the PID controller of the DX system
heater/cooler
•
"Cooling" - current control of the PID
controller of the cooler
•
"Recovery" - current control of the
recovery PID controller
•
"Mixing chamber" - current control of
the mixing chamber PID controller
•
"Secondary heater" - Current PID
controller control of the secondary heater
•
"ENTER for more information" - entry
to advanced screens with indications of
AHU operation
•
"X.X.XXX" - Controller software version
•
"B1 Supply" - current supply air
temperature
•
"B2 Exhaust" -
temperature
•
"B3 External" -
temperature
•
"B4 Recovery Exhaust" - current
exhaust temperature after recovery
•
"B5 Flush" - Current temperature of the
touchdown sensor of the main water
heater
- supply air
current exhaust
current outside
