VENTUS COMPACT standalone air handling units (AHUs)can be installed indoors or outdoors.
The units are designed to work with air duct systems supplying and extracting air from rooms according
to the ventilation design for parameters indicated in the unit selection sheet. The duct connection
ensures that there is no access to the rotating parts of the unit (fan impeller). Nominal parameters and
equipment of the unit are presented in the unit selection sheet. Installation of the unit outdoors requires
the use of roofing and air intakes and outlets respectively, as well as protection of peripheral automatic
components against weather conditions.
!
! IT IS STRICTLY FORBIDDEN TO OPEN THE INSPECTION PANELS WHILE THE AIR
HANDLING UNIT IS IN OPERATION OR TO START UP THE AIR HANDLING UNIT WITH THE
INSPECTION PANELS OPEN.
! SWITCH OFF THE CONTROL UNIT AND WAIT TWO MINUTES FOR ALL ELEMENTS IN
MOTION TO STOP BEFORE OPENING THE INSPECTION PANELS.
! DISCONNECT AND SECURE THE POWER SUPPLY TO PREVENT UNCONTROLLED
START-UP OF THE CONTROL PANEL.
! AN CONTROL SYSTEM IS REQUIRED TO ENSURE CONTROL OF OPTIMAL OPERATION
OF THE UNIT AND TO PROTECT THE UNIT AGAINST FAILURE. THE AUTOMATICS MUST
INDICATE THE DEGREE OF DIRTINESS OF THE AIR FILTERS.
The unit is equipped with a number of duct functions and accessories and an Control system.
The unit's functions and their parameters are given in the selection sheet generated from the
manufacturer's IT system according to the design guidelines.

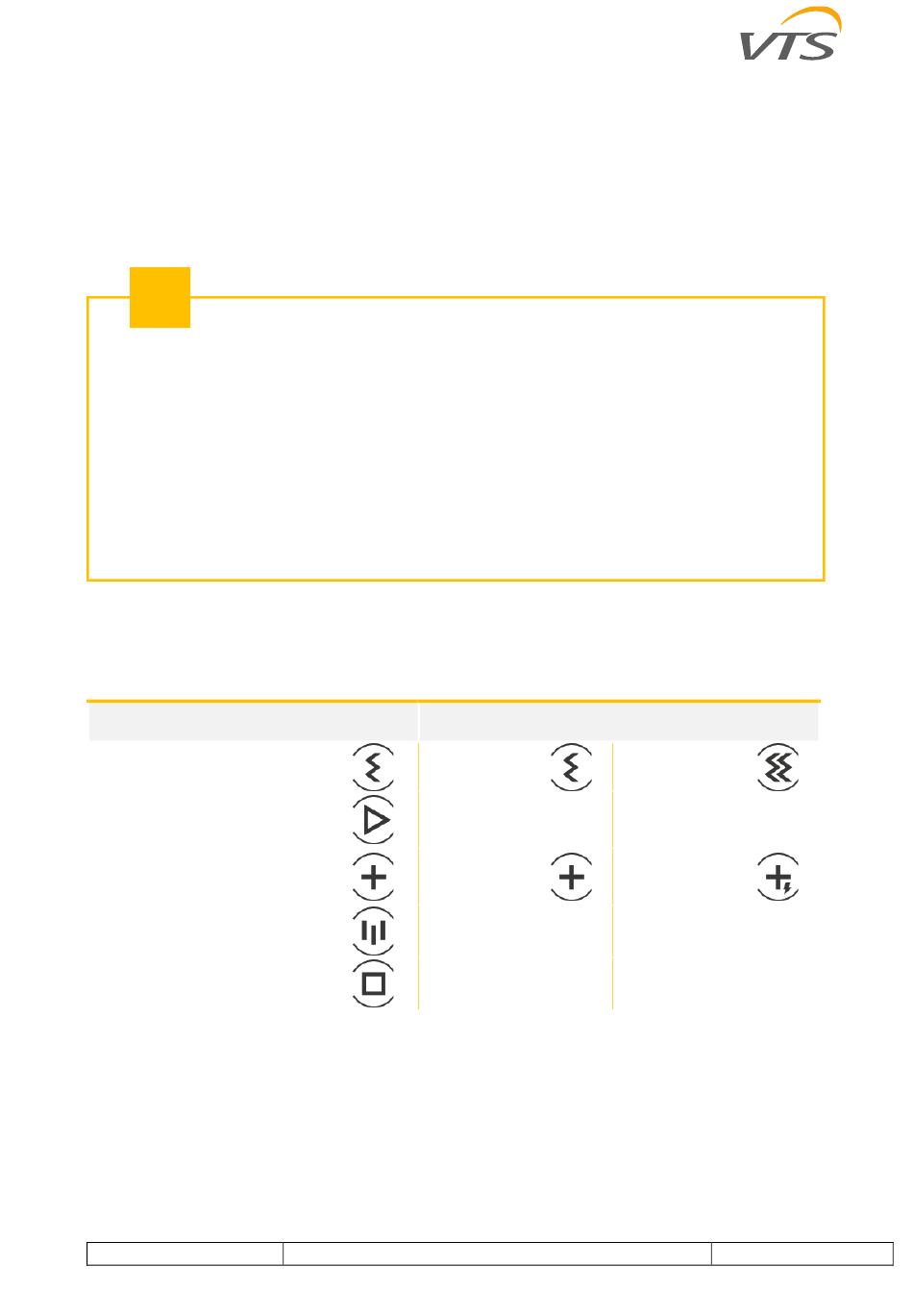

FUNCTION
F Air filter
V Fan
H Heater
Noise
S
suppressor
E Empty section
www.vtsgroup.com
Air filter
initial
Heater
Water
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
FUNCTIONAL VERSIONS
Air filter
secondary
Heater
Electric
