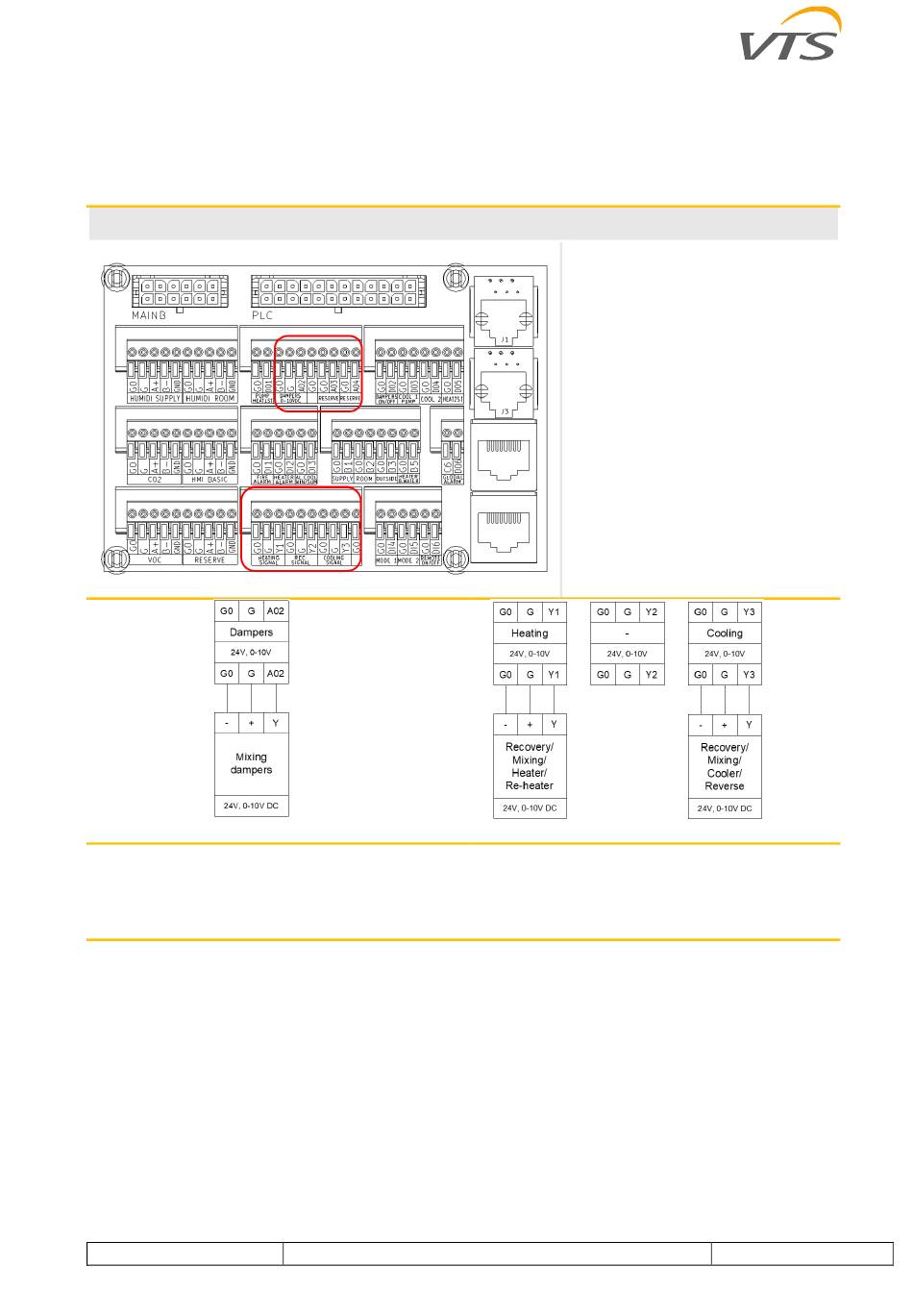

6.6 ANALOGUE OUTPUTS (0-10V DC)

ANALOGUE OUTPUTS (NTC10K)
•
A01* - factory connection outside terminal 1 (T1)
•
Y1** - Priority: 1. main heater, 2. secondary heater for heat pump (DX-H), 3 Mixing chamber,
•
Y3*** Priority: 1. Refrigerator, 2. Heat pump secondary heater (DX-H), 3. Mixing chamber,
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
AO1* Heat recovery
AO2 Air mixing
AO3 Humidification or
secondary heater
AO4 Pre- or post-heater
Main heater or
Y1** secondary heater
behind DX-H or mixing
chamber
Aftercooler or after-
heater after DX-H or
Y3*** mixing chamber
