C16
www.vtsgroup.com

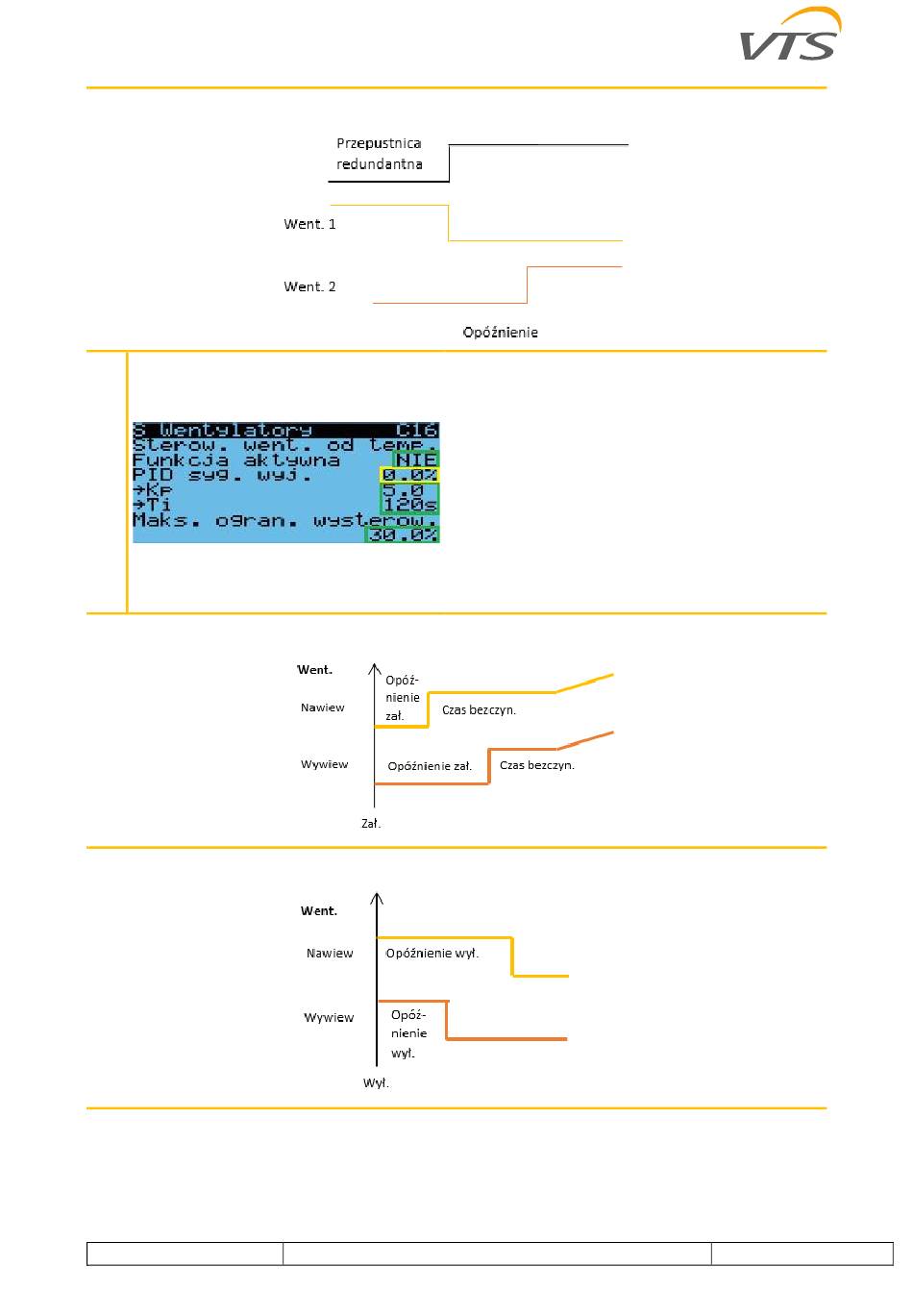

Redundant fans
•
"Active function" - fan speed limitation if the AHU
does not reach the set temperature in heating mode,
despite maximum control of all available heating
devices
•
"PID output signal" - current control of the PID
controller limiting the speed of the fans
•
"Kp" - gain factor of the PID controller limiting the
speed of the fans
•
"Ti" - doubling time of the PID controller limiting the
speed of the fans
•
"Maximum control limitation" - maximum value by
which, under the influence of the PID controller
limiting the speed of the fans, the fans can slow down
(not exceeding 0%), expressed in percentage points
Fan start-up sequence
Fan stop sequence
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
103
