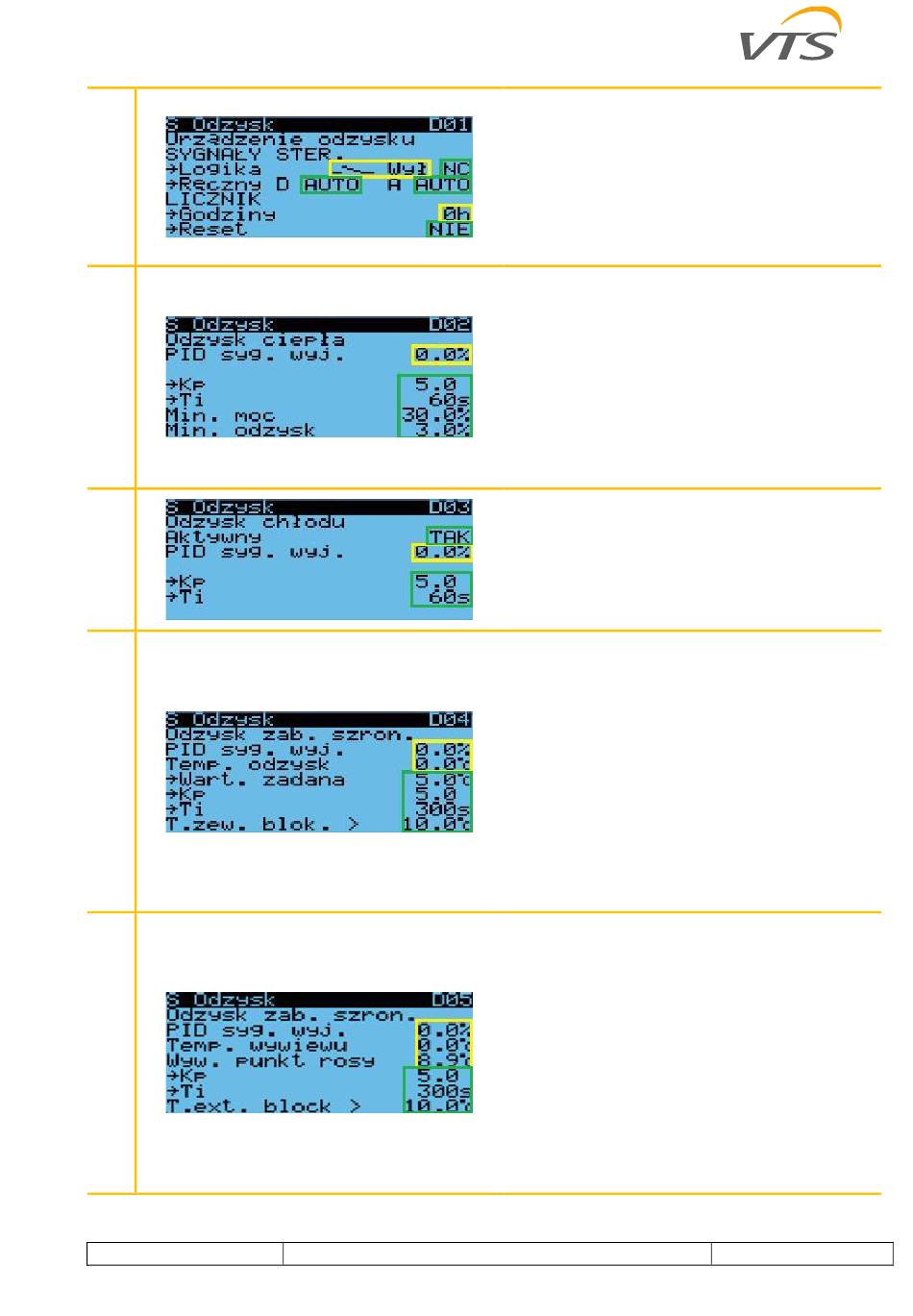

"Logic" - type of logic used in recovery (NO/NC)
"Manual D" - manual assignment of a value of 0/1
to the digital output responsible for permitting
recovery operation
"Manual A" - manual assignment of 0-100% values
to the analogue output responsible for the recovery
control level
"Hours" - recovery time counter
"Reset" - resetting the recovery time counter
"PID output signal" - current control of the heat
recovery PID controller
"Kp" - gain factor of the heat recovery PID controller
"Ti" - doubling time of the heat recovery PID
controller
"Minimum power" - minimum control of the
recovery controller, after which the recovery is
controlled
"Minimum recovery" - the minimum fixed recovery
control
"Active" - activation of the cooling recovery function
"PID output signal" - current control of the PID
controller for cooling recovery
"Kp" - amplification factor of the PID controller for
cooling recovery
"Ti" - cooling recovery PID controller doubling time
"PID output signal" - current control of the recovery
frost protection PID controller
"Recovery temperature" - current temperature
after recovery on the exhaust (sensor B4)
"Setpoint" - temperature setting behind the
recovery on the exhaust, the maintenance of which
will be carried out by the PID controller of the
recovery frost protection in case of its drop
"Kp" - amplification factor of PID controller of
recovery frost protection
"Ti" - recovery frost protection PID controller
doubling time
"Outside
blocking
temperature (sensor B3) above which recovery frost
protection is inactive
"PID output signal" - current control of the
recovery frost protection PID controller
"Exhaust temperature" - current temperature after
recovery on the exhaust (sensor B4)
"Exhaust - dew point" - temperature after the
recovery on the exhaust, the maintenance of which
will be carried out by the PID controller of the
recovery frost protection in case of its drop
"Kp" - amplification factor of PID controller of
recovery frost protection
"Ti" - recovery frost protection PID controller
doubling time
"Outside
blocking
temperature (sensor B3) above which recovery
frost protection is inactive
temperature"
-
outside
temperature"
-
outside
