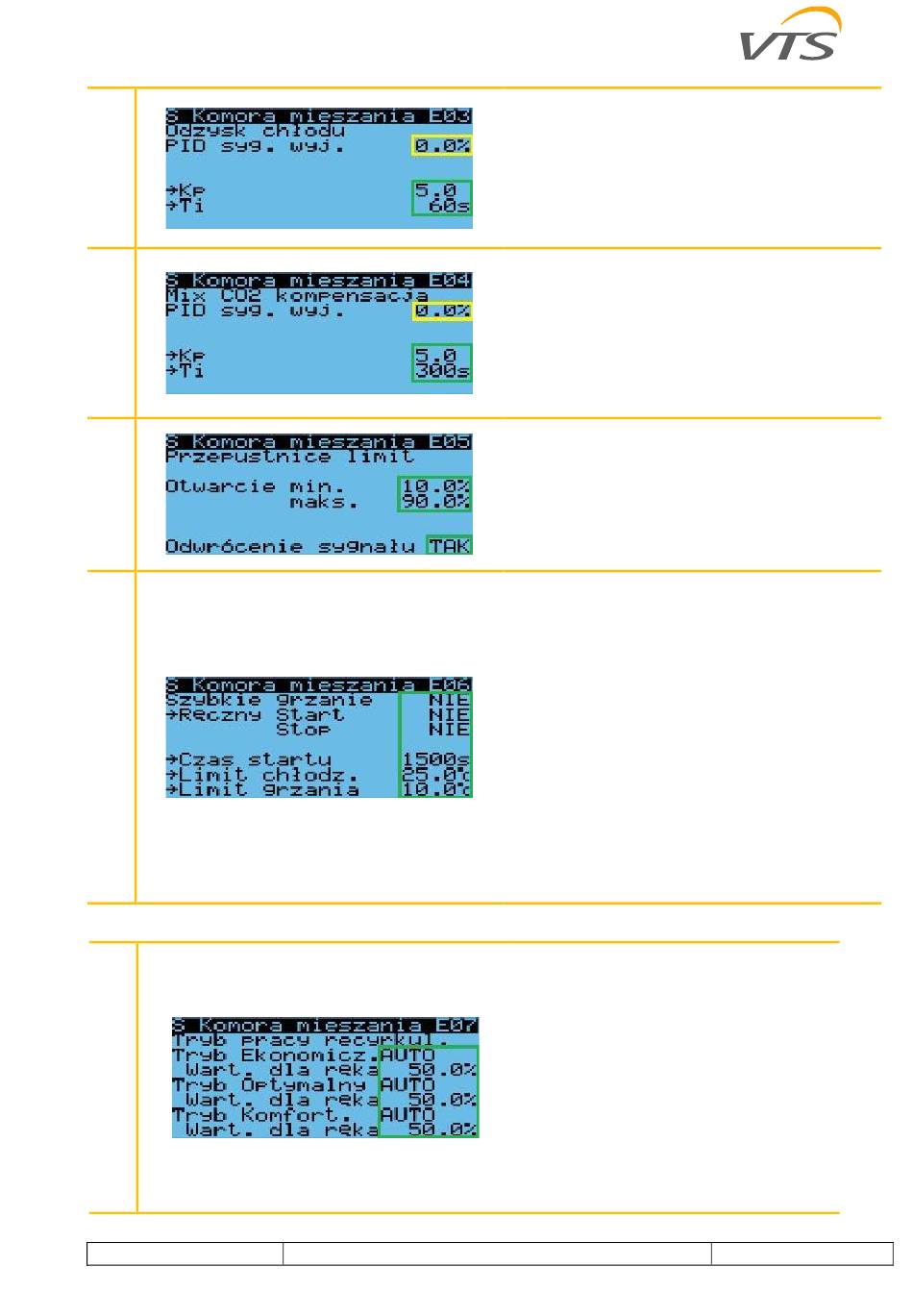

"PID output signal" - current control of the PID
controller of the cooling recovery implemented by
the mixing chamber
•
"Kp" - amplification factor of the PID controller of the
cooling recovery realized by the mixing chamber
•
"Ti" - doubling time of the PID controller of the
cooling recovery implemented by the mixing
chamber
•
"PID output signal" - current control of the PID
controller for CO2 compensation of the mixing
chamber
•
"Kp" - amplification factor of the PID controller of the
CO2 compensation of the mixing chamber
•
"Ti" - doubling time of the PID controller for the CO2
compensation of the mixing chamber
•
"Minimum opening" - minimum controller control
from which the mixing chamber damper opens
•
"Maximum opening" - maximum controller control
with which the mixing chamber damper can open
•
"Signal inversion" - conversion of the mixing
chamber throttle control signal from 0-10V to 10-0V
•
"Fast heating" - operation of the AHU with
heater/cooler (if this is not blocked by low outside
temperature) combined with 100% recirculation
once the AHU is started until the set temperature is
reached for the first time (after which it returns to
operation with fresh air supply control)
•
"Manual start" - manual override to activate rapid
heating/cooling mode
•
"Manual stop" - manually force a stop to the rapid
heating/cooling mode
•
"Start time" - minimum time to switch on the rapid
heating/cooling function after it has been activated
•
"Cooling limit" - outdoor temperature above which
the rapid cooling function (sensor B3) is activated
when the AHU is started.
•
"Heating limit" - outdoor temperature below which
the rapid heating function is activated when the AHU
is activated
•
"Economy mode" - selection of the
operation mode of the mixing chamber
(automatic / manual) for the Economy mode
•
"Hand value" - value of manual control of
the mixing chamber throttle for the Economy
mode
•
"Optimal mode" - selection of mixing
chamber operation mode (automatic /
manual) for Optimal mode
•
"Hand value" - setting of manual control of
the mixing chamber throttle for the Optimum
mode
•
"Comfort mode" - selection of the operation
mode of the mixing chamber (automatic /
manual) for the Comfort mode
