7.2.3

HMI ADVANCED

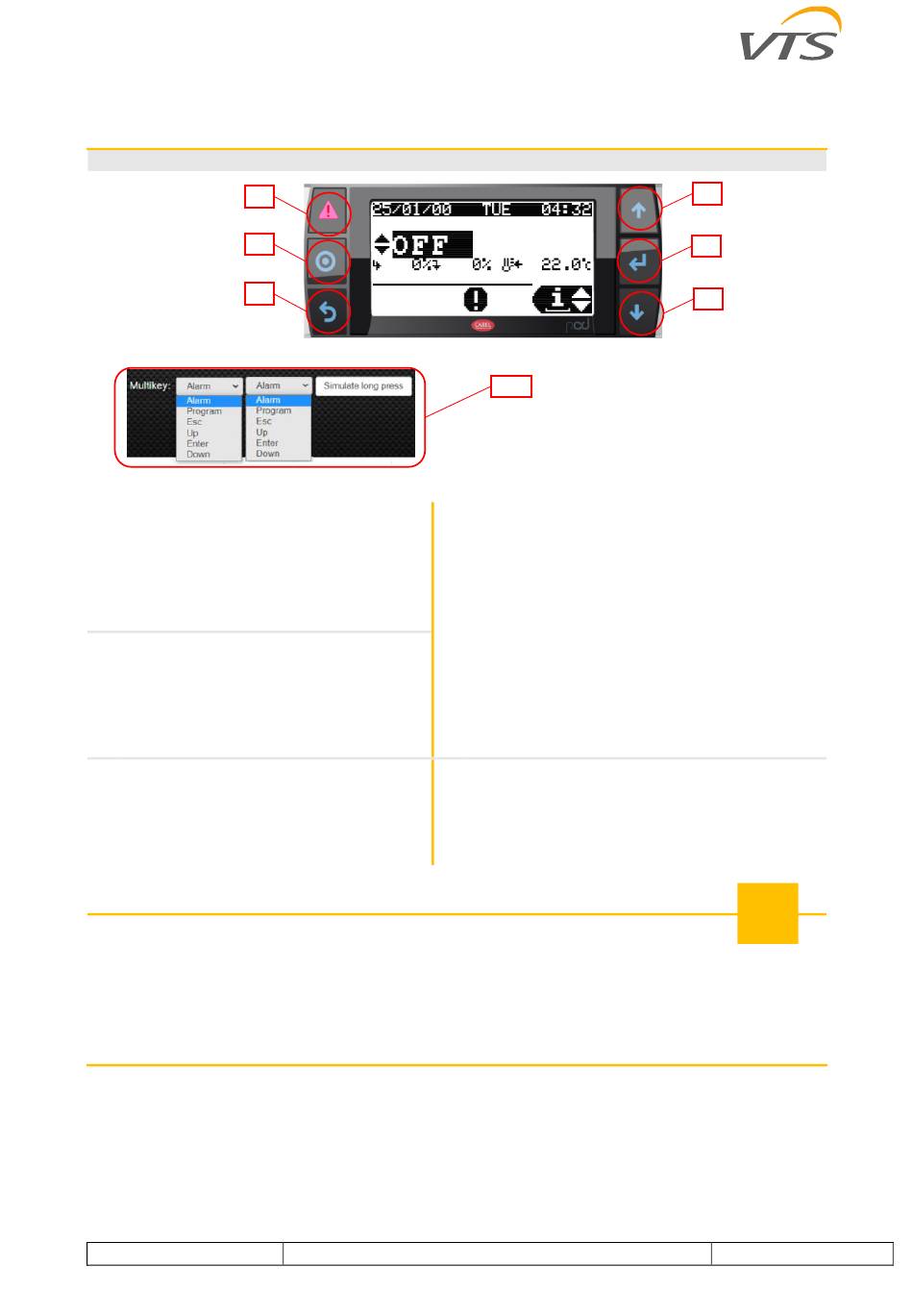

HMI ADVANCED - NAVIGATION
1
2
3
"Alarm" button (calling up active and
archived alarms, clearing alarms). When
1
an alarm is active, the button is
illuminated in red.
Button for changing the operating modes
(OFF/Auto/Low/Econo/Comfort).
2
Confirmation by pressing ENTER.
ESC button (return to previous field or
3 screen)
! The parameters available in the LCD display window depend on the type of air handling unit and
the application of the Control system. Therefore, in the case of AHUs without a heater, you will
not see the options related to the heating section.
! The HMI Advanced cannot be used as a room temperature sensor.
www.vtsgroup.com
Arrows to navigate up and down and to change
parameter values
UP:
•
•
4
DOWN:
•
•
ENTER button.
•
5
•
•
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
A
Simulation of equal pressures
in the WEB HMI
Moving up through the menu screens (when
the cursor remains in the top left corner)
Increasing the parameter value
Moving down through the menu screens
(when the cursor remains in the top left
corner)
Decreasing the parameter value
selection of the parameter to be changed,
transition to another parameter,
validation of the selected value
4
5
4
!
