DIFFERENTIAL PRESSURE SWITCH - CHARACTERISTICS
DIFFERENTIAL
PRESSURE SWITCH

5.5 CONNECTION OF ELECTRIC HEATER CONTROL

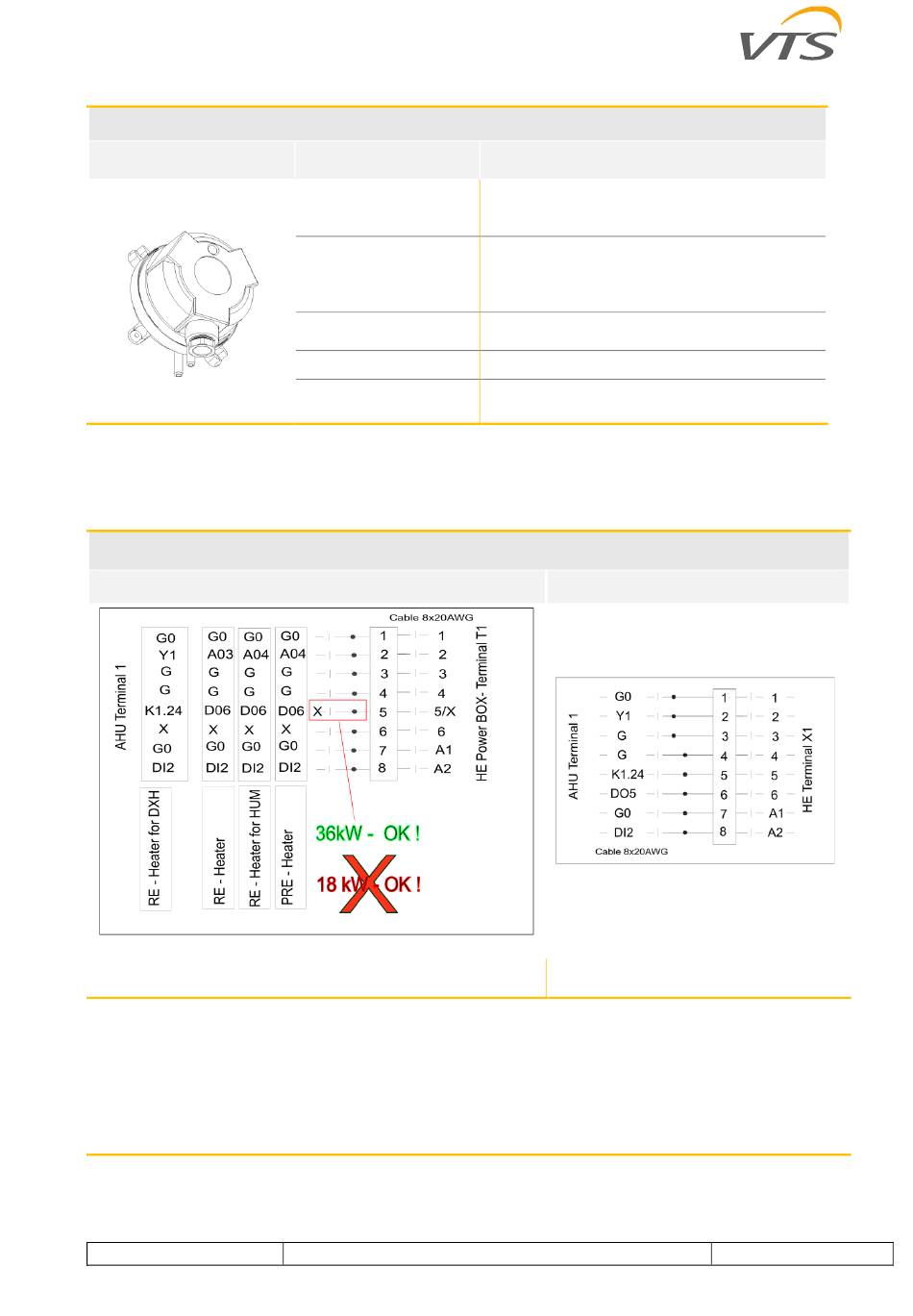

ELECTRIC HEATER CONNECTION CABLE MARKING
- PLUG&PLAY CONTROL
PRIMARY AND SECONDARY HEATERS
5/x - connect only up to 36kW
AHU Terminal 1 - Connection terminal "Terminal 1" in the panel box/distribution panel.
HE Power BOX - Connection terminal X1 in the electrical heater box/distribution panel.
RE-Heater - Secondary heater for a case other than the following.
RE-Heater DXH - Secondary heater for heat pump unit (C_dxh).
RE-Heater for HUM - Secondary heater for the humidifier unit.
PRE-Heater - Pre-heater.
K1.24 - the connection should be made to pin 24 of the pump relay (K1) located
in the control panel of the AHU
www.vtsgroup.com
CONNECT
Function
Construction
Rated operating
voltage
Output signal type
Measuring range
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
NOTES
protection of the heater against overheating
(control of pressure difference between
supply air and atmospheric pressure)
•
plastic housing,
•
two screw terminals,
•
diaphragm connected to mechanical
module
30 V DC
potential-free (changeover contact)
20-300 Pa
MAIN HEATER
36
