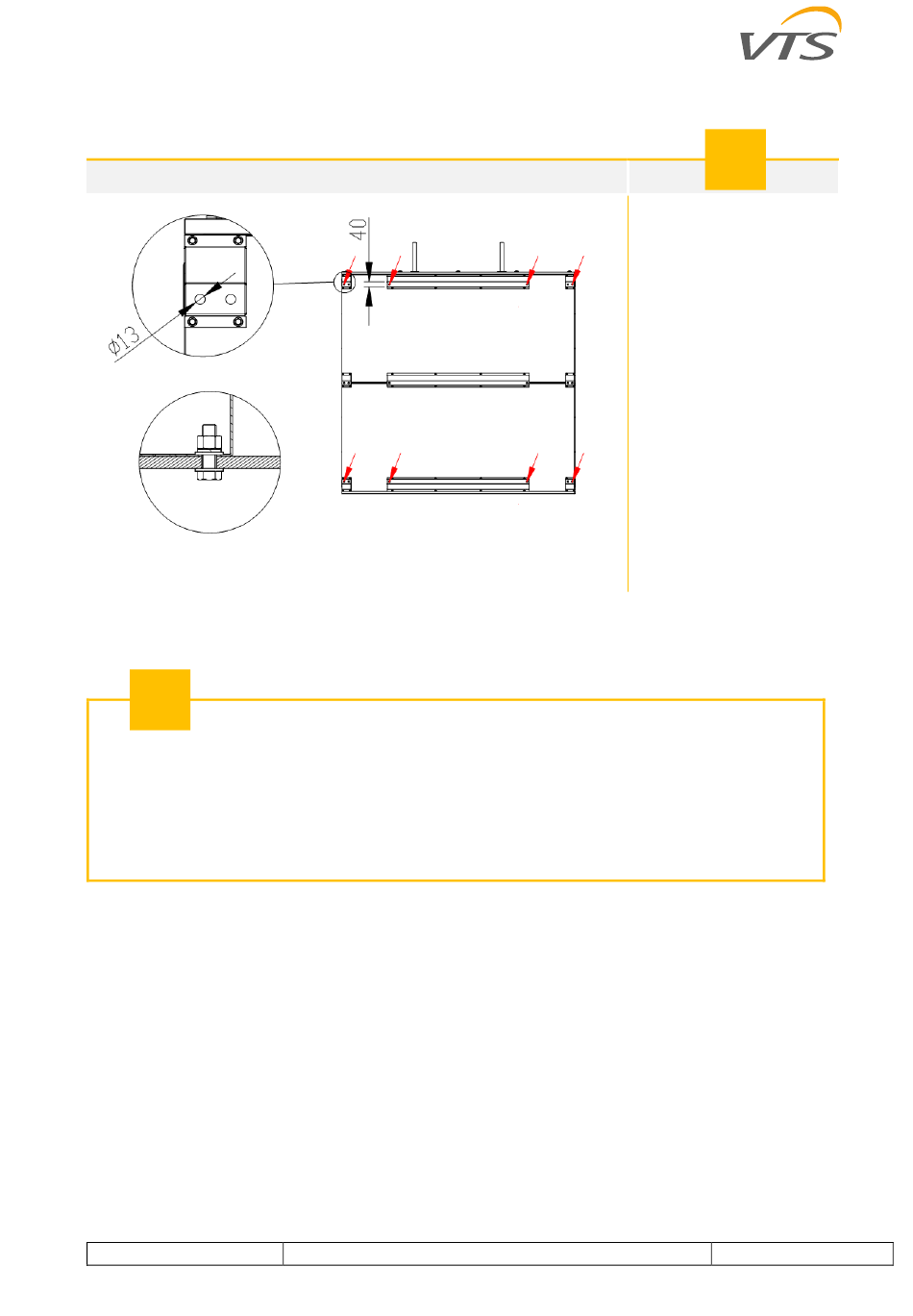

FIXING OF THE FRAME/FOOTPLATE TO THE GROUND
!
! All profiles of the panel frame must be supported.
! Use M10 screws or dowels to secure the frames to the foundation.
! Frame deflection of 1mm/1m must not be exceeded
! The extreme foundation holes in the longitudinal profiles of the frames can be used for anchoring
the HV frames (footers).
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
!
!
The frame should be
fixed through the
extreme holes in the
feet/frame.
