EXAMPLE OF CONNECTING AN ELECTRIC HEATER WITH A 1x18kW UNIT
Designation
1
relays / contactors
2
heater terminals
3
4
pressure switch
5
signal terminals - alarm
6
power terminals 1f
7
overcurrent circuit breakers
8
signal terminals - control

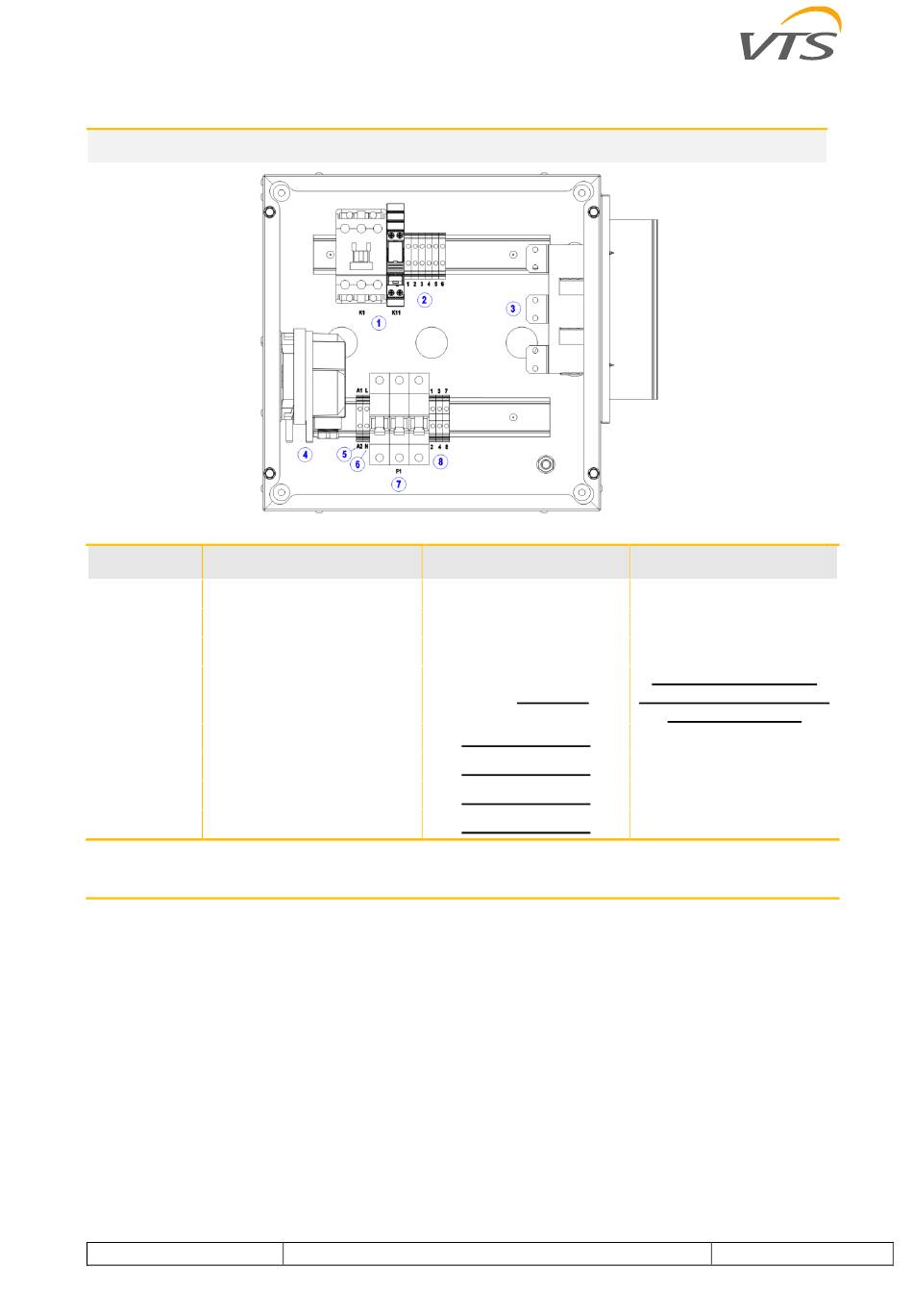

The switchgear views shown are intended to illustrate the arrangement of components inside the
switchgear enclosure. Please note that they are for illustrative purposes only - when making electrical
www.vtsgroup.com
Description
heaters
connections, always refer to the electrical diagrams.
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
Connection
factory
factory
factory
factory / installer
on site / installer
on site / installer
on site / installer
on site / installer
Comments
-
-
-
the connection of the
pressure switch tubes is
made by the user
-
-
-
-
