FUNCTION SETTINGS - ADVANCED FUNCTIONS
FUNCTION SETTINGS - ADVANCED FEATURES (cont'd)
www.vtsgroup.com
•
PRIMARY HEATER - settings of the pre-heater operating
parameters, e.g. PID, start and end points (if available in the air
handling unit).
•
RECOVERY - parameter setting for the heat exchanger.
•
MAIN HEATER - settings of main heater operation parameters
(if available in the air handling unit).
•
REPEAT HEATER - settings of secondary heater operation
parameters (if available in the air handling unit).
•
COOLER - settings of the cooler operation parameters (if
available in the air handling unit).
•
RECYCLATION - settings for the air recirculation function (if
available in the air handling unit).
•
FANS - settings including fan speed, PID algorithm, fan start and
stop delay time. CAV/VAV control.
•
MOISTURE - possibility of setting, among other things, the PID
parameters of the humidification process, extreme points for the
start and end of humidification.
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)

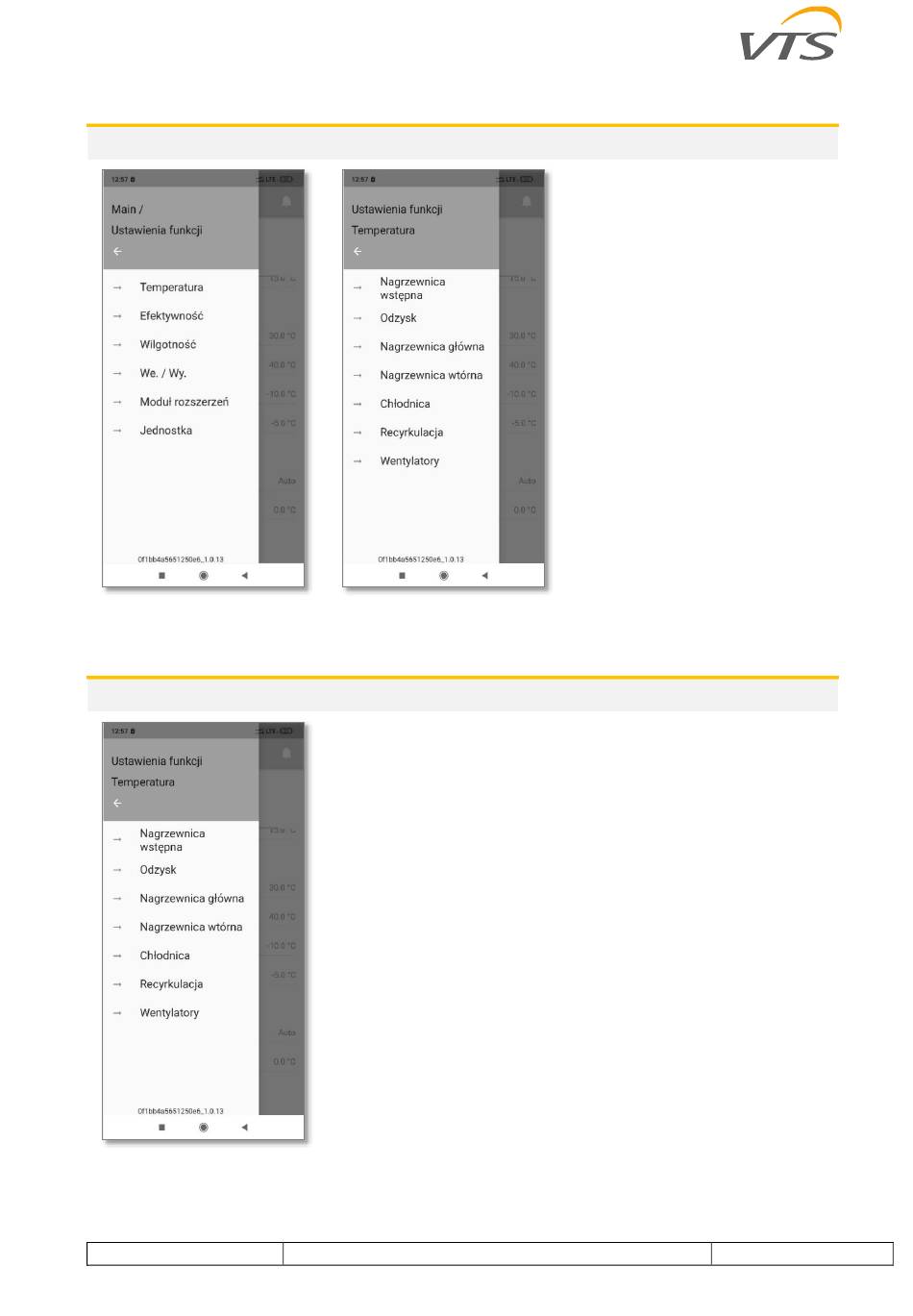

FUNCTION SETTINGS - this menu
section gives you the possibility to
view and edit the
parameters of the
control panel. In addition, you can
access the control of individual
inputs and outputs located on the
control panel controller and also on
the expansion board.
TEMPERATURE -
temperature settings
contains settings for all possible
components that affect
resulting supply temperature.
operating
associated
The
section
the
